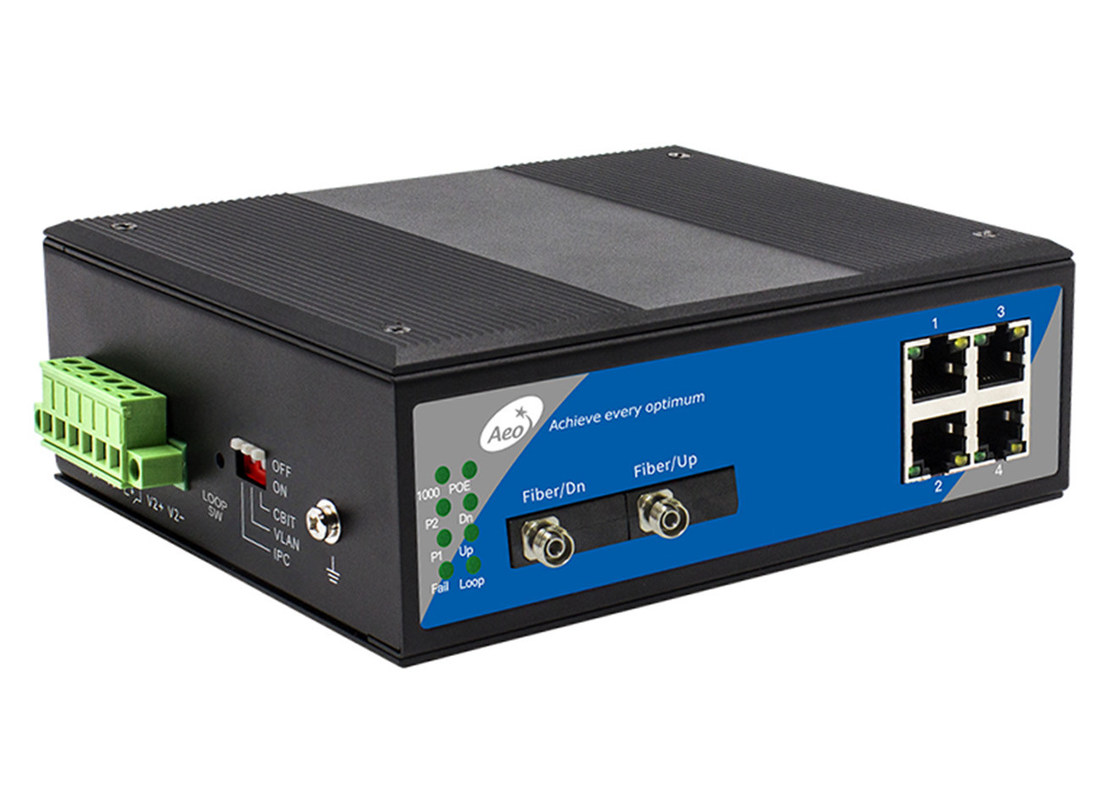

2 / 4 / 8 Ports Industrial POE Fiber Switch HD Cascading Ring Network Optical Switch

2 / 4 / 8 Ports Industrial POE Fiber Switch HD Cascading Ring Network Optical Switch

  • 2 / 4 / 8 Ports Industrial POE Fiber Switch HD Cascading Ring Network Optical Switch
2 / 4 / 8 Ports Industrial POE Fiber Switch HD Cascading Ring Network Optical Switch
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE,FCC,ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Box, Carton
Delivery Time: 3-4 working days
Payment Terms: 100% T/T in advanced
Supply Ability: 10000pcs every month
Contact Now
Detailed Product Description
Power Supply: AC/DC Power Over Ethernet: Yes
Shock Resistance: Yes LED Indicators: Yes
Operating Temperature: -40℃~+85℃ Protocols Supported: IEEE 802.3/802.3u/802.3ab
Number Of Ports: 2/4/8 Product Name: Industrial POE Switch
IPC Extender: 250m VLAN: Yes
High Light:

8 Ports Industrial POE Fiber Switch


ROHS Industrial POE Fiber Switch

Product Description:

HD Cascading Ring Network Optical Switch uses the design of industrial redundant ring net, and you can find two fiber ports which make up the ring net in every transmission equipment. The ring network topology structure is composed through hand in hand cascading, which can achieve no phase delay transmission of the 1080p HD network signals. The purpose of industrial redundant ring net design is to achieve the stability, reliability and instantaneity of the data transmission in a harsh environment. The working principle is that the network signals become ring structure in physical connection while chain structure during work. Once out of connection in the transmission optical cable, the device would switch to the spare line to transmit. The redundant ring net structure not only reduces the risk of data signals transmission, but also simplifies the project installation and lowers the project costs.



  • Supporting all the network HD cameras and other network signals;
  • Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
  • Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
  • Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
  • Supporting POE on the network port;
  • Providing the transmission of ultra low delayed data;
  • Protecting from network broadcast radiation;
  • Providing 4 set adaptive POE Ethernet ports, which can link with internet camera, the switch and so on;
  • Adapting parallel or cross-wire connection;
  • Having APC circuit, with constant optical power output and wide dynamic range;
  • 10/100/1000Mbps optical fiber transmission, with large capacity which could be upgraded easily;
  • Having advanced adaptive technology, no field of the use of optical or electrical adjustment
  • Adapting three-level lighting protection technology on the computer ports and network signals.
  • IPC Extender: support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M
  • VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
  • Support the din rail & desktop installation
  • Support the CBIT to ensure the HD image.
  • Built-in industrial switch IC. High-speed processing capability and capacity of the cache, ensure a stable and reliable network.

Technical Parameters:

Backboard bandwidth 12G
Cache 1M
MAC address table 1K
Maximum frame length 1632bytes
Network port 4 10/100/1000Base-T(X) POE RJ45 ports
1000Mbps fiber port 2 gigabit SFP slots
Optical fiber port transmission distance 0-100km
Optical transmission power -10~-2 dBm
Optical RX sensitivity ≤-24 dBm
Protection grade IP40
Heat dissipation mode internal heat sink energy circuit heat dissipation, no fan silent design
MTBF 100,000 hours
Rated input voltage DC44~57V
Power terminal 6 pin terminal interface
Power ≤4W
POE Standard Protocol IEEE 802.3af/at
POE Pin Definition V+,V+,V-,V- Corresponding to 4,5,7,8 ( can be custom-made)
POE Input Voltage DC+44~+57VDC
POE Output Power IEEE802.3af:15.5W IEEE802.3at:30W
EN61000-4-2 anti-static ±8KV contact discharge;±15KV air discharge
EN61000-4-3 EMF 10V/m(80~1000MHz)
EN61000-4-4 EMF ±10KV power cord, ±2KV data cable
EN61000-4-5 surge voltage ±6KV/CM,±6KV/DM power cable,±2KVdata cable
EN61000-4-6 Anti-conduction 3V(10KHz~150KHz),10V(150KHz~80KHz)
Mechanical IEC60068-2-6(shock), IEC60068-2-27(impaction), IEC60068-2-32(free drop shock)
Working temperature -40 ~ 85℃
Working humidity 5% ~ 95%(non-coagulation)



Support and Services:

Industrial POE Switch Technical Support and Services

our goal is to ensure our customers get the most out of their Industrial POE Switch. Our technical support and services are designed to help you get the best performance out of your switch and ensure that it is running optimally.

  • 24/7 phone support
  • Professional technical assistance
  • On-site defect diagnosis and repair
  • Remote troubleshooting and diagnostics
  • Firmware and software updates
  • Hardware replacement and repair
  • Training and education

If you have any questions about our Industrial POE Switch or would like to take advantage of these services, please don't hesitate to contact us. Our knowledgeable and friendly team is always available to help.



Q: What is Industrial POE Switch?
A: Industrial POE Switch is a type of network switch that supports both power and data transmission over a single Ethernet cable. It is designed to meet the highest demands of industrial environments.
Q: What is the brand name of the Industrial POE Switch?
A: The brand name of the Industrial POE Switch is AEO.
Q: Where is the place of origin of Industrial POE Switch?
A: The Industrial POE Switch is made in China.
Q: What certifications does the Industrial POE Switch have?
A: The Industrial POE Switch has been certified by CE, FCC and ROHS.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 set.
Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed
