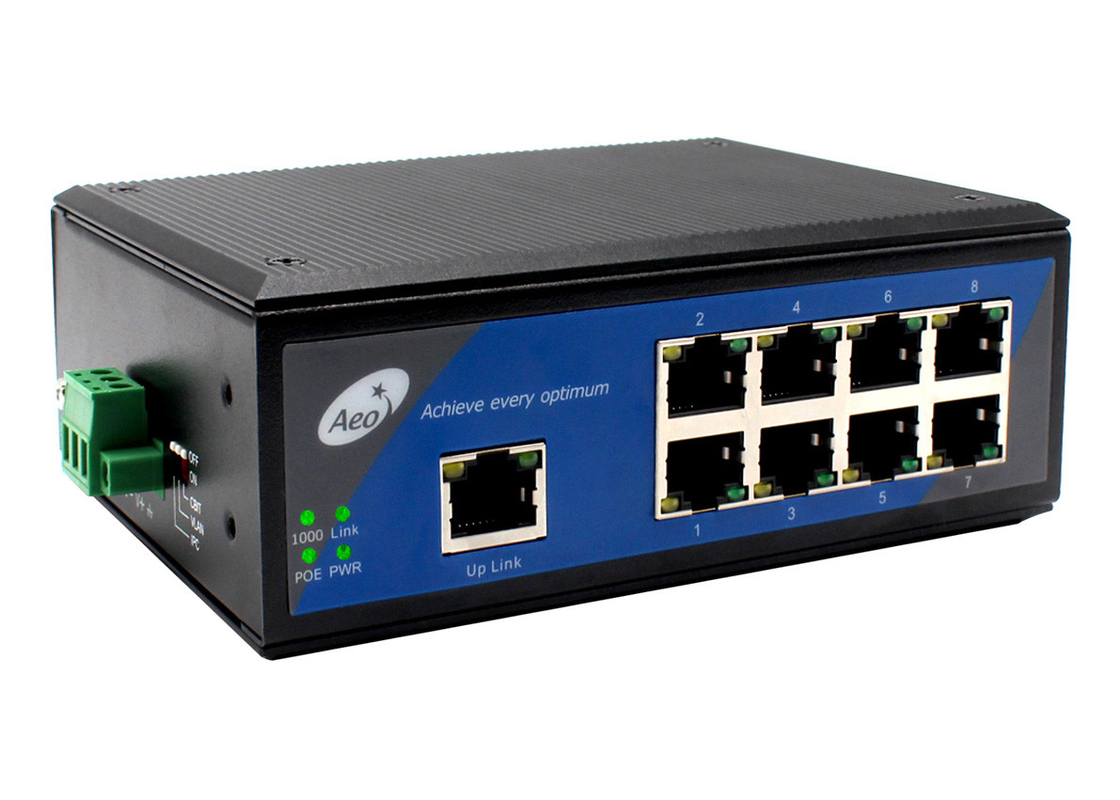

8 Port POE Ethernet Switch With CBIT 1 Uplink Port 50/60 Hz

8 Port POE Ethernet Switch With CBIT 1 Uplink Port 50/60 Hz

  • 8 Port POE Ethernet Switch With CBIT 1 Uplink Port 50/60 Hz
8 Port POE Ethernet Switch With CBIT 1 Uplink Port 50/60 Hz
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE,FCC,ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Box, Carton
Delivery Time: 3-4 working days
Payment Terms: 100% T/T in advanced
Supply Ability: 10000pcs every month
Contact Now
Detailed Product Description
Operating Temperature: -40-85°C Frequency: 50/60 Hz
Voltage: DC12-57V Power Supply: External
CBIT: Yes Humidity: 10-90% (non-condensing)
IPC Extender: 250m Power Over Ethernet: Yes
High Light:

8 Port POE Ethernet Switch


1 Uplink Port POE Ethernet Switch

8 Port POE Ethernet Switch With CBIT 1 Uplink Port And 8 Ethernet Ports

Product Description:

The POE Ethernet Switch is a powerful and reliable switch for home and business use. It provides power over Ethernet (POE) for up to 250 meters of IPC extender, and also features CBIT (Controlled Bit Inversion Technology). With this, users can easily configure the data rate and signal strength of the switch. The switch also has a storage temperature range of -40-85°C, and can work with a frequency range of 50/60 Hz. It is designed to provide reliable performance and maximum efficiency for your home or business network. With its robust design, the POE Ethernet Switch is an ideal choice for any network environment.



◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.
◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.
◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.
◆ Support the longest 1536byte long packet transmission.
◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.
◆ To provide low delay of data transmission.
◆ Ethernet ports support POE function, it is more convenient to construction
◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance.
◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.


Technical Parameters:

Network port 1 uplink 8 POE 10/100Base-T(X) adaptive RJ45 Ethernet ports
Backplane processing capacity 1.8G
MAC address table 2K
Cache 1M
MAX frame length 1536
IPC/VLAN DIP switch support
Power Consumption ≤4W
Power input +12~+57VDC
relative humidity 5~90%
Working temperature -40~85°C
Heat-dissipating method The built-in passive cooling heat sink, no fan mute design
MTBF 100000 hours
POE Standard protocol IEEE802.3af/at
  Pin V+ V+ V- V-is to 4,5,7,8
  Input voltage +44~+57VDC
  output power IEEE802.3af:15.5W IEEE802.3at:25.5W
Shell material iron


AEO's POE Ethernet Switch is a fast and reliable solution for customer's IP-based network. It is equipped with CE, FCC, and ROHS certifications to ensure the network is secure and reliable. It is packaged in a box or carton, with a minimum order quantity of 1 set. Delivery time is 3-4 working days, and payment is 100% T/T in advance. Supply ability is 10000pcs every month, and the storage temperature is -40-85°C. The voltage is DC12-57V, and the CBIT is Yes. Power supply is external, and the IPC extender is 250m. AEO's POE Ethernet Switch is the best choice for customers who need a fast, reliable, and secure network.


Support and Services:

POE Ethernet Switch provides technical support and services for customers with pre-sales and post-sales inquiries.

Technical support includes free phone support, email support, remote access support, onsite support, and knowledgebase.

Services include installation, repair, maintenance, and training.



Q1: What is a POE Ethernet Switch?
A1: A POE Ethernet Switch is a device that provides power and data transmission capabilities to a variety of Ethernet-connected devices.
Q2: What is the Brand Name of this POE Ethernet Switch?
A2: The Brand Name of this POE Ethernet Switch is AEO.
Q3: Where is this POE Ethernet Switch manufactured?
A3: This POE Ethernet Switch is manufactured in China.
Q4: What certifications does this POE Ethernet Switch have?
A4: This POE Ethernet Switch has CE, FCC, and ROHS certifications.
Q5: How many POE Ethernet Switches can be supplied every month?
A5: We can supply up to 10000 POE Ethernet Switches every month.

Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed
