| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE,FCC,ROHS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Box, Carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | 100% T/T in advanced |
| Supply Ability: | 10000pcs every month |
| Power Supply: | External | Voltage: | DC12-57V |
|---|---|---|---|
| CBIT: | Yes | Operating Temperature: | -40-85°C |
| Power Over Ethernet: | Yes | IPC Extender: | 250m |
| Humidity: | 10-90% (non-condensing) | Frequency: | 50/60 Hz |
| High Light: | Industrial 4 Port POE Switch,1000Mbps 4 Port POE Switch |
||

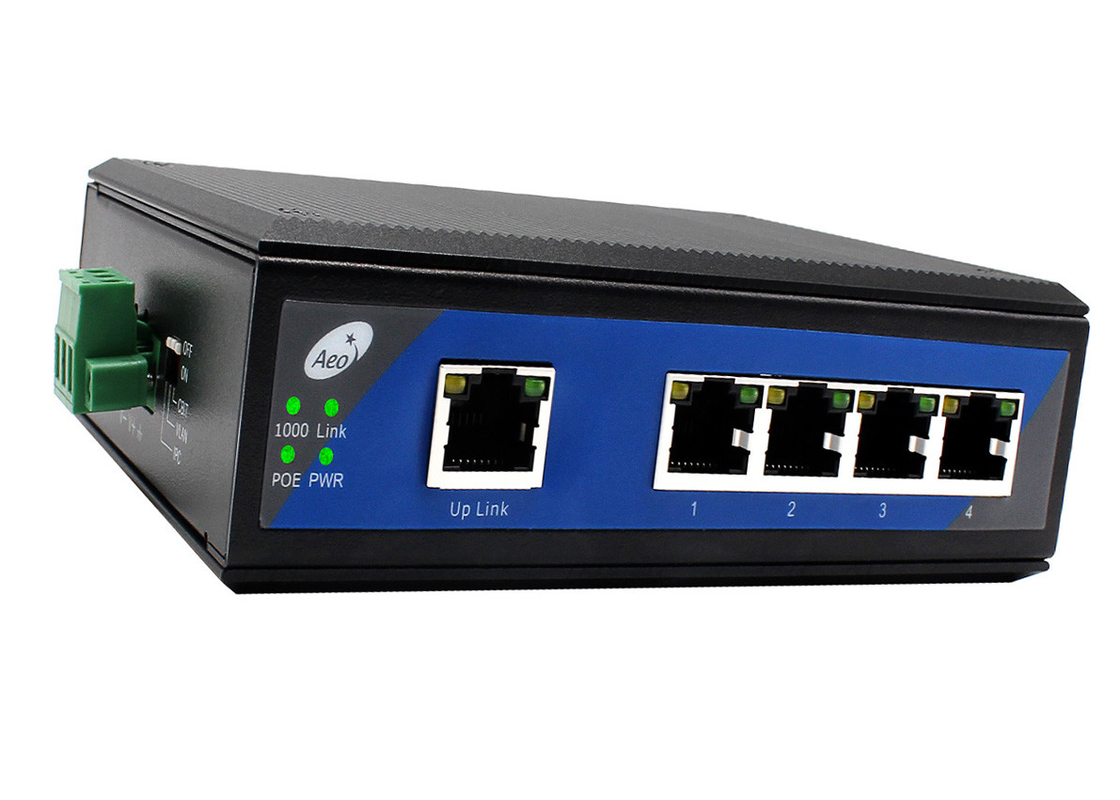

Industrial 10/100/1000Mbps 4 Port POE Switch is a full-featured, Gigabit switch that supports 802.3af/at Power over Ethernet (PoE) technology. This switch offers a comprehensive selection of advanced features such as VLAN, Humidity (10-90% non-condensing), Operating Temperature (-40-85°C) and Storage Temperature (-40-85°C). With high reliability and a great degree of flexibility, this switch is ideal for providing a secure and reliable network connection for remote sites. Furthermore, this switch can extend Ethernet transmission up to 250m with IPC extender.
◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.
◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.
◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.
◆ Support the longest 10kbyte long packet transmission.
◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.
◆ To provide low delay of data transmission.
◆ Ethernet ports support POE function, it is more convenient to construction
◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance.
◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
| Network port | 1 uplink 4 POE 10/100/1000Base-T(X) adaptive RJ45 Ethernet ports | |
| Backplane processing capacity | 12G | |
| MAC address table | 8K | |
| Cache | 1M | |
| IPC/VLAN DIP switch | support | |
| Power Consumption | ≤3W | |
| Power input | +12~+57VDC | |
| relative humidity | 5~90% | |
| Working temperature | -40~85°C | |
| Heat-dissipating method | The built-in passive cooling heat sink, no fan mute design | |
| MTBF | 100000 hours | |
| POE | Standard protocol | IEEE802.3af/at |
| Pin | V+ V+ V- V-is to 4,5,7,8 | |
| Input voltage | +44~+57VDC | |
| output power | IEEE802.3af:15.5W IEEE802.3at:25.5W | |
| Shell material | iron | |
AEO POE Switch is a powerful and versatile networking solution suitable for a variety of applications. It is designed and manufactured in China with highest standards of quality and certifications of CE, FCC and ROHS. It is available in minimum order quantity of 1 set and is packed securely in box and carton. The delivery time for this product is 3-4 working days and payment terms are 100% T/T in advance. The product is supplied in 10000pcs every month and works on 50/60 Hz frequency. With storage temperature of -40-85°C, the IPC extender can reach up to 250m. It is powered externally and supports VLAN.
