| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Power: | DC12V1A | Transmission Distance: | 0~1.5km |
|---|---|---|---|
| Bandwidth: | 84M | Transmission Rate: | 10/100Mbps |
| Protocol Standard: | IEEE 802.3, IEEE 802.3u | Operating Voltage Range: | AC 100V-240V 60/50Hz |
| BNC Port: | 1 | Ethernet Port: | 1 |
| High Light: | DC12V IP Over Coaxial Extender,IP Extender Over Coax 1.5km |
||
IP over Coaxial Extender 10/100mbps 1.5km 1 Ethernet and 1 BNC port over Coaxial Cable
Technical Parameters
| Interface | 10/100Base-TX UTP port (Auto-adaptation ) ×1 BNC×1 |
| Transmission medium | coaxial cable |
| LED Indicators |
Power: Light on: Normal operation Coax: Light on: Video signal is normal UTP, Act/Link: Light on: connection is correct Light Blink: normal communication M(master)/S(slave) : Light on: Under Slave Light off: Under Master |
| Transmission band | 2MHz–28MHz |
| Protocol standard | IEEE 802.3, IEEE 802.3u |
| Power supply | DC12V1A |
| Security technology | 128-DES Data encryption and Key management |
| Physical layer transmission rate | 200Mbps |
| Transmission distance | 2KM |
| Support operating system | Windows 98/ME/NT/2003/7, Windows XP Home/Pro, Mac OSX , Linux |
| Operating voltage range | AC 100V-240V 60/50Hz |
| Operating temperature | 0°C ~ +50°C |
| Storage temperature | -20°C ~ +70°C |
| Operating humidity | 5%-90% |
System Overview
IP over Coaxial Extender offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, it uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, it utilizes a BNC connector that supports 50ohm or 75ohm coaxial cable with the distance up to 2km.
Product Features
(1) Based on the latest Ethernet protocols of IEEE P1901.
(2) High speed of communication, it supports multimedia business and network.
(3) Multi-channel signal transmission. It can transmit 16-channel of million resolution HD 1080p video, Alarm, Talkback and Control data signal on a coaxial cable.
(4) Long distance transmission. It can transmit signal up to 2,000 meters without repeater, easy for network cable setting, the transmitting rate of TCP/IP on coaxial cable.
(5) High transmission performance. It can transmit multi-channel of HD video simultaneously without delay, digital signal is only transmitted simply in different medium with no harm.
(6) Simple installation. Plug and play, no need of any software and hardware setting.
(7) Good compatibility. It is easy for adding spots under permits of total network bandwidth by using of T connectors to form a hand-in-hand connection, no need of setting new cables.

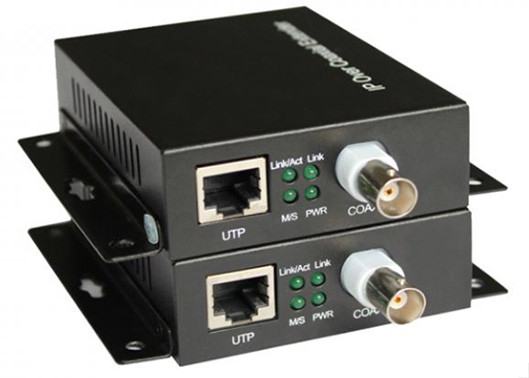

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
