| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Power: | DC12V1A | Transmission Distance: | 0~1.5km |
|---|---|---|---|
| Physical Layer Transmission Rate: | 100Mbps | Transmission Rate: | 10/100Mbps |
| Operating Temperature: | -20°C ~ +70°C | Operating Voltage Range: | AC 100V-240V 60/50Hz |
| High Light: | 10/100Mbps EOC Converter,EOC Converter For IP Camera,Ethernet Over Coaxial Extender 300m |
||
10/100Mbps EOC Converter With POE IP Over Coaxial Extender 300m For IP Camera
Technical Parameters
| Interface | 10/100Base-TX IEEE 802.3af(15.4W) RJ45 ×1 Coaxial BNC×1(Support POE/PSE-PD) |
| Transmission medium | 75-5 coaxial cable, RG59 |
| LED Indicators | PWR(Power supply) M/S(Links/Data) LRE(Trunk Links) POE(Power over Ethernet) L/A(Links/Data) |
| Protocol standard | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x Flow Control,IEEE 802.3af DTE Power via MDI |
| Data rate | 10/100Mbps |
| Transmission distance | 1500M(No POE), 0~300M(with POE) |
| Performance Specification | Store-and-forward |
| Network Latency | Less than 20µs for 64-byte frames in Store and forwardmode for 100Mbps to 100Mbps transmission |
| DC Power input | DC52V(Peak Value 44~56V) |
| No power | |
| Operating environment | Operating temperature; -10℃~ +50℃ Storage temperature: -20℃~ +70℃ Operating humidity: 10%-90% non-condensing |
System Overview
This Ethernet over Coax Extender allows IP cameras to transmit over Coax cabling. It allows the system to extend IP cameras beyond cable distance limitations and also acts as a PoE inserter. The System transmits IP cameras over coax and can quickly turn any ordinary RG59U coaxial cable into a high speed network communication & PoE path. When operating over RG59U coaxial cable, the IP camera extender can operate for distances of up to 300 meters. The Ethernet over Coax extender system consists of a transmitter and receiver which require very little installation time & absolutely no set up or configuration.
Product Features
1. Ethernet over Coax - Converts Ethernet UTP to transmit network data and PoE over standard coax cable.
2. Saves costs and time – Avoids rewiring and expense of traditional Ethernet UTP cable.
3. High data rate – Support 100 Base-T for high network bandwidth requirements of Mega-pixel cameras or multiple IP cameras.
4. Easy to install - No IP or MAC address configuration and other networking setup required.
5. Easy upgrade to IP - Converts existing analog CCTV system over coaxial cable to retrofit analog CCTV installations into IP Digital systems.
6. Extends standard Ethernet – Transmits10/100Base-T up to distances of 300 meters
7. Compatible capability - Fully transparent to Ethernet networks and higher layer protocols.

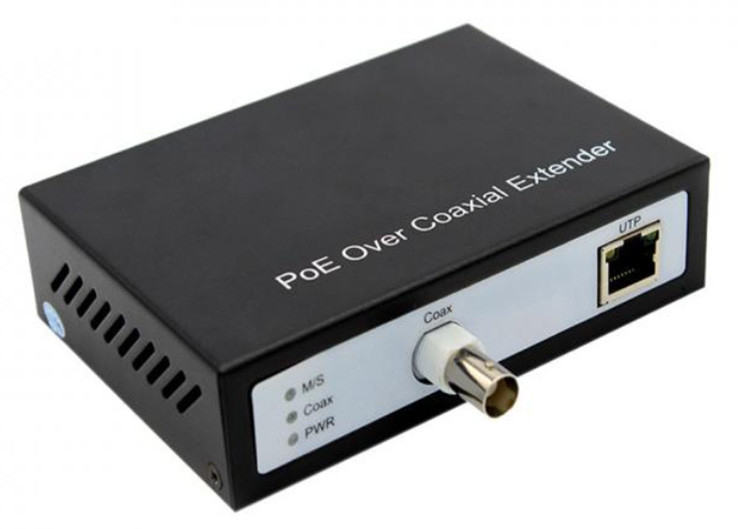

Product picture
Diagram
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
