| Place of Origin: | China |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/month |
| Connector: | 2 X RJ45 | Operating Temperature: | -40°C To 80°C |
|---|---|---|---|
| MTBF: | >200,000hrs | Relative Humidity: | 5% To 95% Non-condensing |
| Power Consumption: | 100W Max | PoE Power Output: | 48-56V DC 1.65A |
| High Light: | 802.3bt PoE++ Injector,AC+DC Input PoE++ Injector,Dual Power Input PoE++ Injector |
||
DIN-Rail Industrial 10G 90W 802.3bt PoE++ Injector with AC+DC Dual Power Input
Technical Parameters
| Ethernet | |
| Standards: | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3bz 2.5G/5GBASE-T | |
| IEEE 802.3an 10GBase-T | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Data Rate: | 10M/100M/1G/2.5G/5G/10Gbps |
| Cabling: |
Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7 5G: 4-pair UTP Cat 6/Cat 6A/Cat 7 10G:4-pair UTP Cat 6A/Cat 7 |
| Connector: | 2 x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 1*AC+1*DC terminal block |
| Power Consumption: | 100W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| IEEE802.3bt Power over Ethernet | |
| Port: | RJ45 |
| Power Pin Assignment |
Pair 1 End-span: 1/2 (+), 3/6 (-) Pair 2 Mid-span: 4/5 (+), 7/8 (-) |
| Max. Power per Port: | 90W Max per port |
| PoE Power Output: | 48-56V DC 1.65A |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (LxWxH): | 125 x 100 x 56 mm |
| Weight: | 0.46Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail |
| Regulatory Approvals | |
| EMC | CE (EN55032, EN55035) |
| EMI | FCC Part 15 Subpart B |
| EMS | EN61000-4-2 (ESD) EN61000-4-3 (RS) |
| EN61000-4-4 (EFT) EN61000-4-5 (Surge) | |
| EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11 | |
| Safety | CE (EN60950-1) |
| Surge Protection |
AC port: 4kV RJ45 port: 2kV |
| ESD | 4KV/8KV |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
Product Overview
The industrial grade, is 10M / 100M / 1G / 2.5G / 5G / 10G Ethernet PoE (Power over Ethernet) injector. PoE describes a system to pass electrical power safely, along with data, on Ethernet cabling. The original IEEE802.3af/at/bt PoE standard provides up to 90W of DC power to each device. In the compact size housing, the POE Injectors provides one 100-240V AC input and one DC input terminal block on its front panel and two RJ-45 ports (POE port and LAN port). Housed in a rugged DIN rail enclosure, this product is designed for harsh environments, such as industrial networking, security, intelligent transportation systems (ITS) and is also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications.
Product Features
► Converts a non-PoE port to a PoE++ 10G port
► Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W)
► IEEE 802.3af, 802.3at, and 802.3bt compliant
► 10GBASE-T compliant
► Network a PoE device up to 100m (328 ft.) over cat6a or better cabling
► Circuit protection prevents power interference between ports
► Support 6KV Ethernet ESD protection
► Dual power input AC+DC
► Wide operating temperature -40 ~ 80°C
► Support DIN-Rail installation

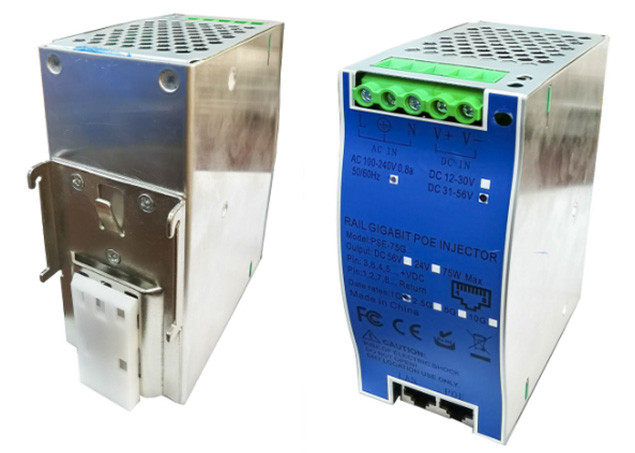

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
