Place of Origin: | China |
Certification: | CE, FCC |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotiation |
Packaging Details: | package and carton |
Delivery Time: | 3-4 working days |
Payment Terms: | T/T |
Supply Ability: | 10000 pcs/month |
Interface: | 12VDC Output | Data Rate: | 10/100/1000Mbps |
---|---|---|---|
Installation: | DIN-Rail Mountable | ESD Protection: | 6KV |
EFT Protection: | 6KV | Power: | PoE DC 48 ~ 56V |
High Light: | 12VDC Gigabit PoE Splitter,DIN-Rail Gigabit PoE Splitter,Industrial Gigabit PoE Splitter |
DIN-Rail Industrial 802.3at Gigabit PoE Splitter Output Voltage 12VDC
Technical Parameters
Hardware Specifications | |
Interface | PoE Input Port |
1 10/100/1000 BASE-T RJ45 | |
Data Output Port | |
1 10/100/1000 BASE-T RJ45 | |
DC Out Plug Connector | |
1 removable 2-pin terminal block | |
DC output | |
12VDC output | |
LED Indicators | PWR (Green) |
PoE (Green) | |
Data Rate | 10/100/1000Mbps |
Dimensions (L x W x H) | 95 x 70 x 30 mm |
Weight | 260g |
Installation | DIN-Rail mountable |
ESD Protection | 6KV |
EFT Protection | 6KV |
Enclosure | IP40-rated Aluminum Housing |
Power Requirements | IEEE 802.3at PoE+ |
PoE DC 48 ~ 56V | |
Power Consumption | System on with PoE input |
<5 watts | |
Full loading with maximum | |
12VDC, 2.08A output | |
25 watts | |
Power Output | 802.3 at PoE+ input |
12VDC, 2.08A (max.) | |
Network Cable | 802.3at 30W PoE+ input |
2-pair UTP Cat. 5, 5e, 6, up to 100m (328ft) | |
Power over Ethernet | |
PoE Standard | IEEE 802.3at High Power over Ethernet |
Power Output | 12VDC |
PoE Power Supply Type | Mid-span |
Power Pin Assignment | 4/5 (+), 7/8 (-) |
Standards Conformance | |
Standards Compliance | IEEE 802.3 10BASE-T Ethernet |
IEEE 802.3u 100BASE-TX Fast Ethernet | |
IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Environment | |
Operating Temperature | -40~ 80 degrees C |
Storage Temperature | -40~ 85 degrees C |
Humidity | 5 ~ 95% (non-condensing) |
Product Overview
DIN-Rail Industrial 802.3at Gigabit PoE Splitter is an Industrial High Power PoE Splitter that can split the 48~56V DC over the existing Ethernet cable into the 12VDC power output. It supports passive 10/100/1000Mbps Ethernet connection ability and complies with IEEE 802.3at High Power over Ethernet standard that supports up to 25-watt output power to powered device. To fulfill the growing industrial applications, the UF-IPSAT-12V is designed to work under the operating temperature range from -40 to 80 degrees C (-40 to 176 degrees F). The UF-IPSAT-12V is an ideal solution to transferring power to traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.
Product Features
► Splits an IEEE 802.3at PoE+ connection into power and Gigabit Ethernet for non-PoE devices
► One DC output with power up to 12V / 2.08A / 25W via 2-pin terminal block
► One RJ45 input port up to 30W from an IEEE 802.3at/af-compliant PoE injector or PoE switch (PSE)
► One RJ45 output port with 10/100/1000 data rates
► IP40-rated metal housing to withstand harsh industrial conditions
► Suitable for extreme operating temperatures of -40 to 80ºC (-40 to 176ºF)
► Option for DIN-rail installation
► Distance support: up to 100 m (328 ft.)
► Short-circuit, overload and high-voltage protection
► ESD protection up to 8 kV (air) and 6 kV (contact)
► Port surge protection up to 2 kV

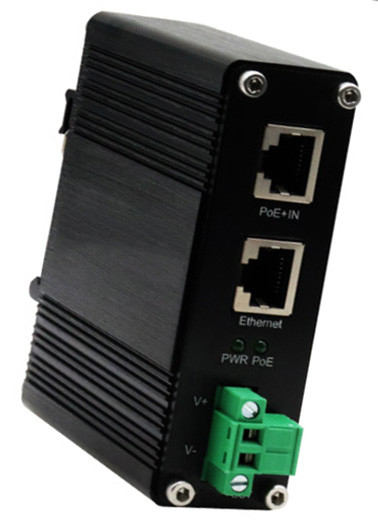

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
