| Power: | DC36~72V Redundancy Power | Operating Temperature: | -40-85°C |
|---|---|---|---|
| Protection Grade: | IP40 | Recovery Time: | <20ms |
| Port: | 4 10G SFP+ Slot And 24 10/100/1000Base-T(X) Ethernet Port | MTBF: | 100,000hrs |
| High Light: | Managed Industrial Ethernet Switch,4 10G SFP+ Industrial Ethernet Switch |
||
Managed Industrial Ethernet Switch 24 10/100/1000Base-T(X) Port and 4 10G SFP+ Port
Technical Parameters
| Ports | 24 10/100/1000Base-T(X) Port and 4 10G SFP+ Port | |
| Network Ports protocol | IEEE802.3,IEEE802.3U,IEEE802.3X protocol | |
| Ports Features | Support half-duplex, full-duplex, auto-negotiation mode | |
| Ports Features | Support MDI/MDI-X adaptation | |
| Power | DC36~72V redundancy power | |
| Recovery time | <20ms | |
| Rated Input voltage | +44~+57VDC | |
| Operating Temperature | -40 ~ 85℃ | |
| MTBF | 100000H | |
| Protect level | IP40 | |
System Overview
Managed Industrial Ethernet Switch 24 10/100/1000Base-T(X) Port and 4 10G SFP+ Port is a high performance, cost-effective high-end managed industrial Ethernetswitch. The switch provides 24 10/100/1000Base-T(X) Ethernet port and 4 10G SFP+ slot. The use of a Ring technology (network fault recovery <20ms) the user can easily set the redundant ring network to increase network reliability, it also support WEB, CLI, Telnet/serial console, Windows utility, and SNMP management of a variety of ways, rich QoS features for data traffic control and management, support ring protocol, RSTP and STP Ethernet redundancy support port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol. The product also industrial design, and can be widely used in automotive PIS, CCTV, video surveillance systems, train control system, but also applies to any vibration shock, EMC compatibility requirements of harsh industrial applications, can meet a variety of industrial site requirements to achieve higher reliability.
Product Features
1. Support 4 10G SFP+ slot and 24 10/100/1000Base-T(X) Ethernet port.
2. Support G.8032(ERPS), IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.3ab, IEEE802.1p, IEEE802.1x, IEEE802.1Q, IGMP Snooping, IPv4/IPv6 precedence.
3. Support CLI, SNMP, WEB management, Console/Telnet command-line management and syslog, using self-developed ring network technology, recovery time <20ms.
4. DC36~72V redundancy power, reverse polarity protection.
5. Industrial grade 4 design, -40-85°C operating temperature.
6. IP40 rated aluminum alloy housing,1U Rack Mount.

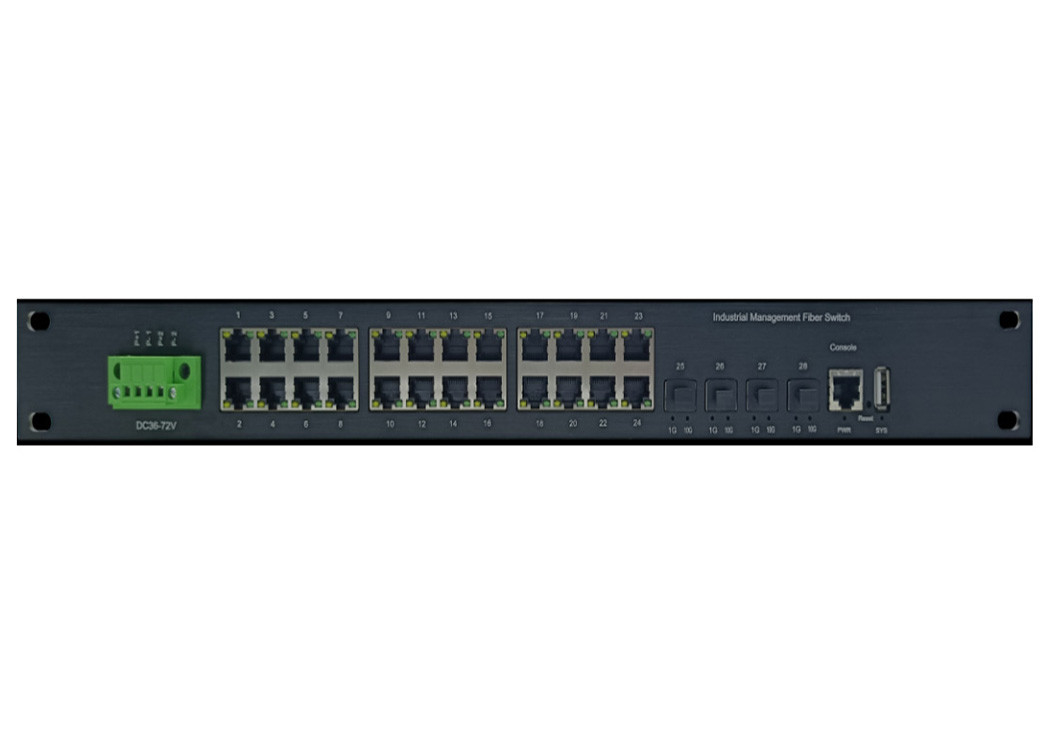

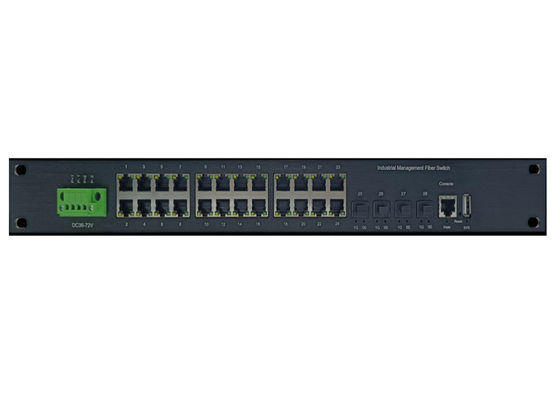

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
