| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Model Number: | AEO-HVC8401D |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| Optical Wavelength: | Single Mode 1310/1550nm | TX Power: | ≥-8dBm |
|---|---|---|---|
| Receiving Sensitive: | ≤-30dBm | Transmitting Distance: | 0-100KM |
| Physical Fiber Interface: | FC/PC | Signal Format: | HD-CVI、HD-AHD Or HD-TVI |
| Input / Output Impedance: | BNC 75Ω(unbalance) | Input / Output Voltage: | 1Vp-p |
| Receiver Rise And Fall Time: | <0.8ns | Receiving Maximum Jitter: | <0.2 UI |
| Physical Interface: | Industry Standard Terminals | Working Mode: | Positive Direction, Reverse Direction, Bi - Directional Data |
| Interface Type: | RS-232，RS-485/422，Manchester，Biphase | Communication Speed: | 0～300Kbps |
| BER: | < 10-12 | Power: | DC5V |
| High Light: | 40km Video Digital Optical Converter,1310/1550nm Video Digital Optical Converter,1080P fiber video media converter |
||

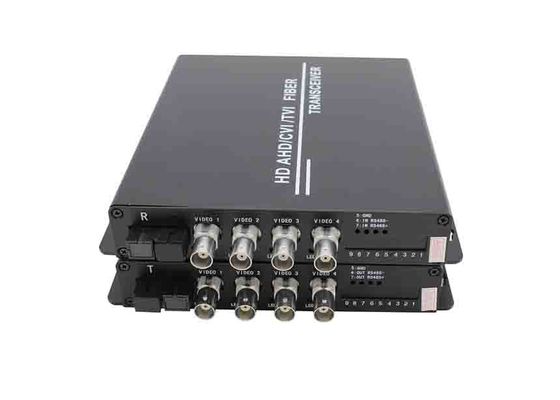

4CH AHD/TVI/CVI Video Digital Fiber Converter Single Mode 1080P with RS485
Technical parameter
| Model No. | AEO-HDVC401 | |
| Optical interface | Physical fiber interface | FC/PC |
| Optical wavelength | Single mode 1310,1550nm | |
| TX power | ≥-8dBm | |
| Receiving sensitive | ≤-30dBm | |
| Transmitting distance | Single mode 20Km / 40Km / 60Km / 80Km for option | |
Video interface |
Video | 4CH |
| Signal format | HD-CVI,HD-AHD or HD-TVI | |
| Input / Output impedance | BNC 75Ω(unbalance) | |
| Input / Output voltage | 1Vp-p | |
| Receiver rise and fall time | <0.8ns | |
| Receiving maximum jitter | <0.2 UI | |
| Data | Physical interface | Industry standard terminals |
| Working mode | Positive direction, Reverse direction, bi - directional data | |
| Interface type | RS-232,RS-485/422,Manchester,Biphase | |
| Communication speed | 0～300Kbps | |
| BER | < 10-12 | |
| General characteristics | Power | DC5V |
| Maximum power consumption | <6W | |
| Mean-time to failure(MTBF) | >100,000 hours | |
| Operating temperature | -20℃ ~ 60℃ | |
| Storage temperature | -40℃～85℃ | |
| Operating humidity | 0～95% (non-condensing) | |
Product introduction
4CH AHD/TVI/CVI Video Digital Fiber Converter is specially designed for long range transmission of HD-CVI, HD-AHD, HD-TVI and other high definition composite video, the use of independent research and development of non-compressed digital photo-electric conversion technique can realize the point-to-point video transmission of million-pixel HD video with high reliability and without delay over optical fiber. Single fiber can simultaneously transmit 1~16 channels of HD coaxial composite video.
HD coaxial analog optical converter supports 1280H and 1920H video formats, it supports both 1280 x 720 and 1920 x 1080 resolution, four frame rates of 25fps, 30fps, 50fps, 60fps, six high-definition formats of 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f, 1920H/25f, 1920H/30f.
Product features
Application Diagram
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
