4 Port Din Rail Mounted Managed Ethernet Switch

Managed 4 Port SFP Fiber Switch Full Gigabit 4 Ethernet Ports and 2 SFP Ports

Technical Parameters

Interface

Switch Properties

Power Requirements

Environmental Limits

Physical Characteristics

System Overview

The managed industrial cascading fiber optic switch is IP40 industrial ethernet switch 4 10/100/1000M Ethernet ports and 2 gigabit SFP ports with cascading ring network function, it will still keep working even if somewhere broken off. It's for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP, wireless AP and other PoE supported devices. Optical fiber optical interface extends network transmission distance to be 20-100km, it simply connects remote multiple motherboard servers, relays, hubs, terminals and multiple terminals.

Product Features

• Supporting all the network HD cameras and other network signals;
• Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
• Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
• Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
• Providing the transmission of ultra low delayed data;
• Protecting from network broadcast radiation;
• Adapting parallel or cross-wire connection;
• Support the din rail & desktop installation
• Fanless cooling circuit design, built-in heatsinks, thermal adhesive, such as multiple thermal structure design makes it in all kinds of consistent performance in harsh environment, operating temperature ranges up to -40℃ ~ +85℃.
• Design with internal device precision compact size, in full consideration of the space requirement for installation.
• Support for ring network redundancy and RSTP, network fault self-recovery time is less than 20ms.
• Support for SNMP, provides both WEB and 0console management, easy to configure.
• Support 802.1Q VLAN, meet the requirements of Division and management of network resources to enhance network security and ability to adapt to many business applications.
• Built-in The United States Marvell and Broadcom industrial switch IC. High-speed processing capability and capacity of the cache, ensure a stable and reliable network.
• Support port isolation, port speed, broadcast storm suppression, ensure network security.
• Support for IGMP snooping, and meet the needs of multicast traffic.
• Providing 4 set adaptive Ethernet port, which can link with internet camera, the switch and so on;
• Support for port gathering, scalable connection bandwidth, and meet the needs of high-bandwidth connections.
• Supports QoS for traffic control and management, and meet the needs of different business on the Internet.
• Industry-standard design, high strength metal enclosure, IP30 protection.
• Having APC circuit, with constant optical power output and wide dynamic range;
• 1000Mbps optical fiber transmission, with large capacity which could be upgraded easily;
• Having advanced adaptive technology, no field of the use of optical or electrical adjustment
• Adapting three-level lighting protection technology on the computer ports and network signals.
• Support for high level electromagnetic compatibility protection, support electrostatic discharge immunity, radiated electromagnetic field immunity, support electric fast transient burst anti-Rejection, support the surge immunity.
• Support for a wide range of redundant dual DC power input, Power overload protection, Anti-reverse polarity protection.

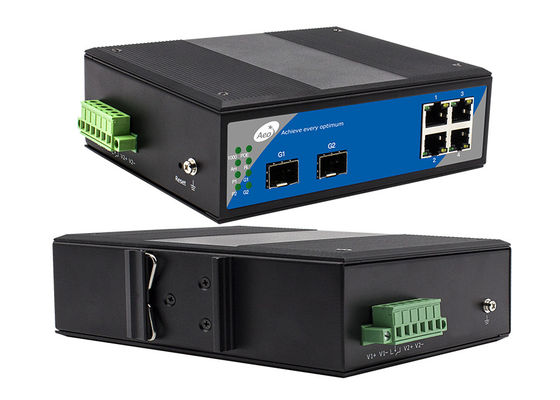

Product picture

Application Diagram

Packaging & Shipping
