Place of Origin: | China |
Brand Name: | AEO |
Certification: | CE, FCC |
Minimum Order Quantity: | 1 pair |
---|---|
Packaging Details: | package and carton |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T |
Supply Ability: | 10000 pairs/month |
Jumbo Frames: | 9K | Power Input: | 1 |
---|---|---|---|
Operating Voltage: | 48-56VDC | Protection: | Over Currency |
IP Rating: | IP30 | Installation: | Desktop Or Wall Mount |
High Light: | 20km fiber optic to ethernet media converter,10/100M fiber optic to ethernet media converter,IP30 single mode fiber to ethernet converter |
100M FIBRE TO COPPER MEDIA CONVERTER WITH POE
Technical Parameters
Physical Port | |||
Copper Port | 1x 10/100Base-TX RJ45 | 1x 10/100/1000Base-TX RJ45 | 2x 10/100/1000Base-TX RJ45 |
SFP Slot | 1x 100Base-X (SFP or 1×9 Transceiver SC,ST,FC connector) | 1x 1000Base-X (SFP or 1×9 Transceiver SC,ST,FC connector) | 1x 1000Base-X (SFP or 1×9 Transceiver SC,ST,FC connector) |
LED Indicators | Power
SFP/1×9 Link/Activity RJ45 Link/Activity RJ45 Speed RJ45 Duplex PoE |
Power
SFP/1×9 Link/Activity RJ45 Link/Activity RJ45 Speed RJ45 Duplex PoE1 PoE2 |
|
Cables | |||
UTP | UTP Cables: CAT5 or above
UTP Cable Limitations: Max. length up to 330 ft. (100 m) |
||
Fiber Optic | 1000BASE-SX: 50/125, 62.5/125, or 100/140-µm Multimode 550m 1000BASE-LX: 8.3/125, 8.7/125, 9/125, or 10/125-µm Single-mode 10km |
Ethernet Standards | |
Standards | IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX & 100Base-FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x Flow Control IEEE802.3af 15W PoE IEEE802.3at 30W PoE+ |
Switching Capacity | 200Mbps(FR-POE231) 2 Gbps(FR-POE232) 6Gbps(FR-POE233) |
Jumbo Frames | 9K |
Power | |
Power Input | 1 |
Operating Voltage | 48-56VDC |
PoE Power Capacity | IEEE802.3 af : 15.4W (x2 FR-POE233)
IEEE802.3 at : 30W (x2 FR-POE233) |
Power Consumption | af mode: 20W (x2 FR-POE233)
at mode: 35W (x2 FR-POE233) |
Protection | Over Currency |
Mechanical | |
Housing | Metal |
IP Rating | IP30 |
Installation | Desktop or Wall Mount |
Environmental | |
Temperature | Operating: 0 to 50℃ (32 to 122℉)
Storage: -20 to +70℃ (-4 to +158℉) |
Humidity | 5 to 95% noncondensing |
Altitude | <3000m(<10000 ft.) |
MTBF | 100,819 Hours |
MTBF Standard | Telcordia SR-332 GB 25℃ |
Heat Dissipation | 113 BTU/h (With 30W PoE) |
Cooling | Passive Cooling |
Noise Level | 0 dBA |
Product Overview
PoE fibre media provides an option for single or dual PoE ports with 100Mbps or Gigabit Ethernet, which communicates across optical fibre via SFP port or 1×9 optical transceiver.
The PoE feature complied with IEEE802.3 af/at standard, including a PSE controller, which offers PD signature sensing and PoE negotiation features. Other intelligent features include over-current protection, LFP function, etc.
Product features
◆ Ideal for confined spaces, and provides highly cost-effective solutions
◆ Auto-Negotiation – automatically determines the best connection speed
◆ Wall mountable using the integrated mounting holes
◆ Single or Dual IEEE 802.3at 30W PoE+ port
◆ Fast or Gigabit ethernet, SFP or 1X9 transceiver supports single-mode and multimode, single or dual fiber options up to 120km
◆ Supports Jumbo Frames up to 9.6K bytes
◆ Intelligent features(DIP Switch/Media Converter) supported including link fault pass-through, automatic laser shutdown, SFP reset and SFP speed selection

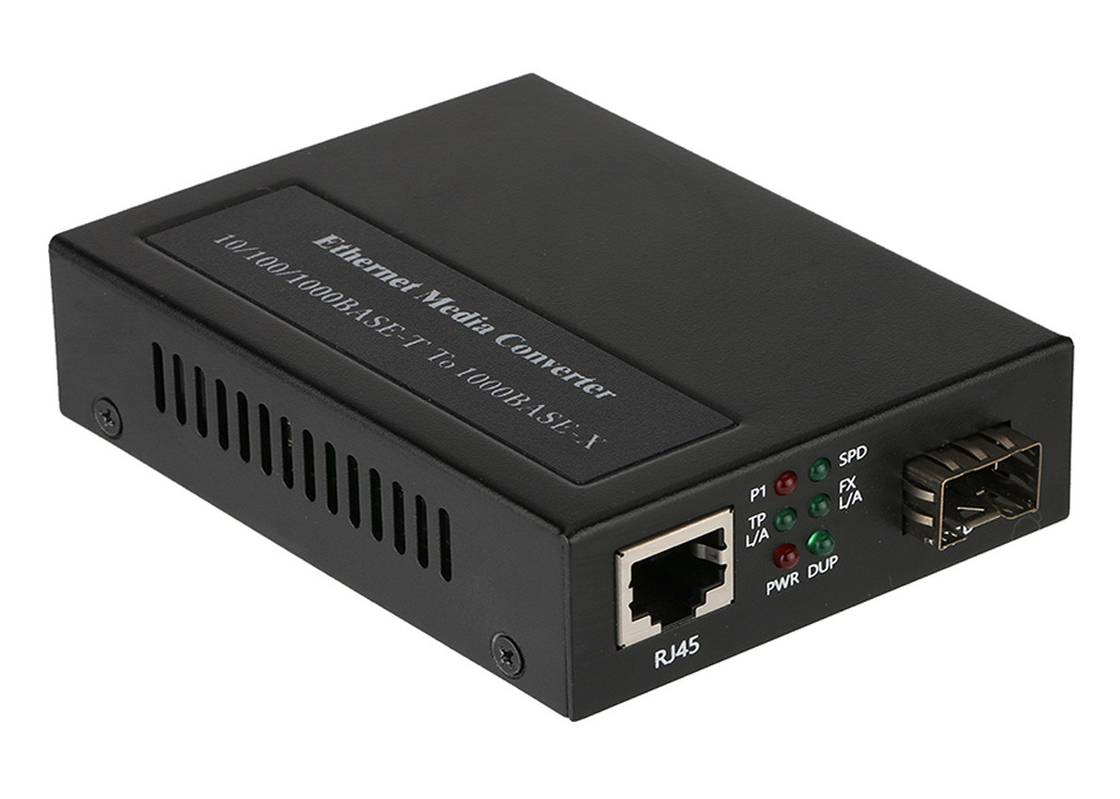

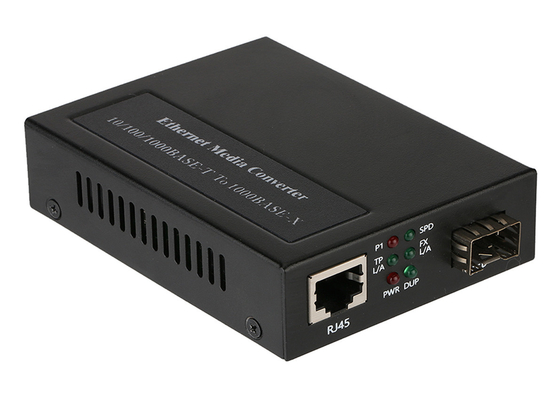

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
