| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/month |
| Ethernet Network Port: | 8 Gigabit | Optical Port: | 1 Gigabit |
|---|---|---|---|
| Transmission Distance: | 20-100km | Backplane Processing Capacity: | 28Gbps |
| MAC Address Table: | 2K | Cache: | 2Mbit |
| MAX Frame Length: | 9216bytes | IPC/VLAN DIP Switch: | Yes |
| Power Consumption: | ≤4W | Optical Wavelength: | 1310/1550nm |
| Transmitted Power: | -10~-2 DBm | Receiving Sensitivity: | ≤-24 DBm |
| Relative Humidity: | 5~90% | Operating Temperature: | -10~60°C |
| IPC Extender: | 250m | CBIT: | Support |
| VLAN: | Support | Forwarding Rate: | 10.416Mpps |
| Working Voltage: | 5V | Protection Grade: | IP30 |
| High Light: | 28Gbps 8 port fiber media converter,100km 8 port fiber media converter,media converter 1310nm 1550nm |
||
8 Port SC Fiber Media Converter Gigabit One Fiber and Eight Ethernet Ports
Technical parameters
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Protocol | CSMA/CD |
| Fiber | 1 x Single fiber or Dual fiber |
| Distance | Single fiber SM: 20-100km, Dual fiber MM: 1km, Dual fiber SM:20-100km |
| Optical interface | SC (ST, FC) |
| Ethernet Interface | 4 x MDI/MDIX RJ45 ports |
| Power Supply | DC5V 1A (external power) |
| Operating Temperature | 0℃～+50℃ |
| Storage Temperature | -30℃～+60℃ |
| Humidity | 5%~90% non-condensing |
Product overview
The SC fiber media converter uses 1X9 modules which supports multimode or single mode dual fiber, bi-directional single fiber, it is one gigabit optical port and 8 gigabit ethernet ports. It is with management function, it with the IPC extender 250m and VLAN & CBIT functions. It automatically adapts to gigabit transmission rate and supplies multiport Ethernet ports to meet user requirements, the transmission distance can be more than 100km to meet the requirements of long distance and high speed Ethernet, can easily realize the mainboard server, repeaters, network camera, the interconnection between the terminals and the terminal. Product performance is stable and reliable, the design meets Ethernet standard, and with lightning protection measures. Especially suitable for telecom, cable TV, railways, military, financial securities, customs, civil aviation, sea transport, electric power, water conservancy, oil field and other broadband data network and require high reliability of data transmission or set up IP data transmission field of private network.
Product features
◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.
◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.
◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.
◆ Support the long packet transmission.
◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.
◆ To provide low delay of data transmission.
◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 250M.
◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
◆ Support CBIT intelligent video optimization technology to ensure that high-definition video monitoring solutions always present high-quality images;
◆ CBIT applicable conditions: applicable to the entire link has this function of the environment.

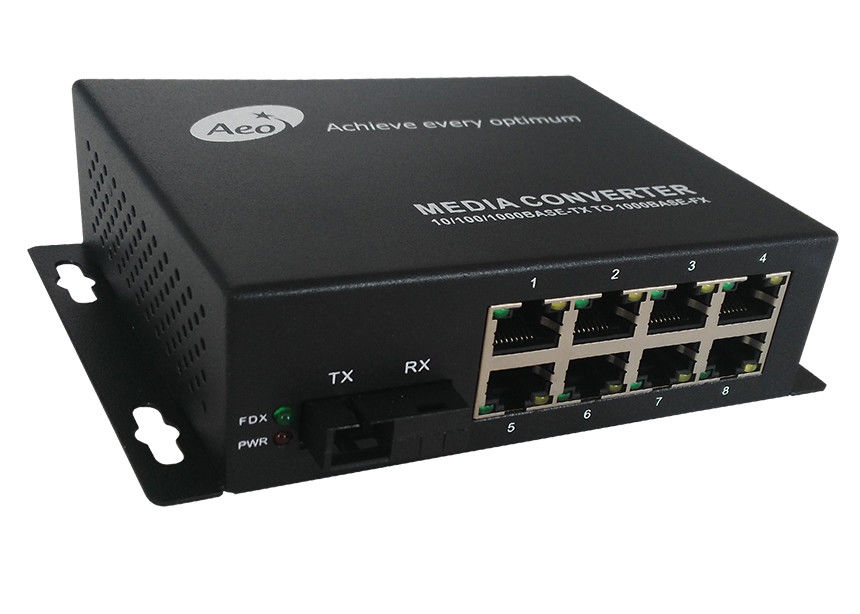

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
