Full Gigabit 4 Port Fiber Optic Switch 4 Ethernet 2 SFP Slots

Full Gigabit 4 Port Fiber Optic Switch 4 Ethernet 2 SFP Slots

Full Gigabit 4 Port Fiber Optic Switch 4 Ethernet 2 SFP Slots
Full Gigabit 4 Port Fiber Optic Switch 4 Ethernet 2 SFP Slots
Full Gigabit 4 Port Fiber Optic Switch 4 Ethernet 2 SFP Slots
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC, ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Gigabit Network Ports: 4 Gigabit SFP Slots: 2
Backplane Bandwidth: 20G Cache: 2M
MAC Address Table: 16K MAX Frame Length: 10K
Fiber Ports Propertie: 1310/1550nm Transmission Distance: 20-100KM
Transmission Power: -10~-2 DBm Received Sensitivity: ≤-24 DBm
Network Ports Properties: IEEE802.3、IEEE802.3U、IEEE802.3X Protocol Network Port Delay: ﹤9.6μS
Network Port Bit Error Rate: ﹤1/1000000000 POE Protocol: IEEE802.3af/at
EN61000-4-2 Anti-static: ±8KV Contact Discharge;±15KV Air Discharge EN61000-4-5 Surge Voltage: ±2KV/CM,±2KV/DM Power Cable,±2KVdata Cable
Power Terminal: 6 Pin Industrial Terminal Interface MTBF: 100,000 Hours
POE Pin Definition: V+、V+、V-、V- Corresponding To 4,5,7,8 (1.2.3.6 Can Be Custom-made) POE Output Power: IEEE802.3af:15.5W IEEE802.3at:30W
Operating Temperature: -40 ~ 85℃ Input Voltage: +44~+57VDC
Protection Level: IP40 Heat Dissipation Mode: Internal Heat Sink Energy Circuit Heat Dissipation, No Fan Silent Design
Power Consumption: ≤5W Shell Material: Aluminum
High Light:

20km 4 port fiber optic switch

,

Full Gigabit 4 port fiber optic switch

,

2 SFP lc fiber switch

Managed 4 Port LC Fiber Switch Full Gigabit 4 Ethernet Ports and 2 SFP Slots



Technical Parameters

Interface

Fiber Ports 1000BaseX SFP Slot
RJ45 Ports 10/100/1000BaseT(X) auto negotiation speed
  Full/Half duplex mode
  MDI/MDI-X connection

Switch Properties

Processing Type Store and Forward
MAC Table Size 16K
Cache 2M
Backplane 20G
Max frame length 10k

Power Requirements

Connection 1 removable 6-contact terminal block
Input Voltage +44~+57VDC
Full-load Power 5W
Reverse Polarity Protection yes
Over current protection yes

Environmental Limits

Operating Temperature Standard Models: -40 to 85℃
Storage Temperature -40 to 85℃
Ambient Relative Humidity 5 to 95% (non-condensing)

Physical Characteristics

Housing Hard aluminum alloy case
IP Rating IP40
Installation DIN-rail mounting



System Overview

The managed industrial cascading 4 port LC fiber switch is IP40 industrial ethernet switch 4 10/100/1000M Ethernet ports and 2 gigabit SFP ports with cascading ring network function, it will still keep working even if somewhere broken off. It's for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP, wireless AP and other PoE supported devices. Optical fiber optical interface extends network transmission distance to be 20-100km, it simply connects remote multiple motherboard servers, relays, hubs, terminals and multiple terminals.



Product Features

  • Supporting all the network HD cameras and other network signals;
  • Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
  • Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
  • Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
  • Providing the transmission of ultra low delayed data;
  • Protecting from network broadcast radiation;
  • Adapting parallel or cross-wire connection;
  • Support the din rail & desktop installation
  • Fanless cooling circuit design, built-in heatsinks, thermal adhesive, such as multiple thermal structure design makes it in all kinds of consistent performance in harsh environment, operating temperature ranges up to -40℃ ~ +85℃.
  • Design with internal device precision compact size, in full consideration of the space requirement for installation.
  • Support for ring network redundancy and RSTP, network fault self-recovery time is less than 20ms.
  • Support for SNMP, provides both WEB and 0console management, easy to configure.
  • Support 802.1Q VLAN, meet the requirements of Division and management of network resources to enhance network security and ability to adapt to many business applications.
  • Built-in The United States Marvell and Broadcom industrial switch IC. High-speed processing capability and capacity of the cache, ensure a stable and reliable network.
  • Support port isolation, port speed, broadcast storm suppression, ensure network security.
  • Support for IGMP snooping, and meet the needs of multicast traffic.
  • Providing 4 set adaptive Ethernet port, which can link with internet camera, the switch and so on;
  • Support for port gathering, scalable connection bandwidth, and meet the needs of high-bandwidth connections.
  • Supports QoS for traffic control and management, and meet the needs of different business on the Internet.
  • Industry-standard design, high strength metal enclosure, IP30 protection.
  • Having APC circuit, with constant optical power output and wide dynamic range;
  • 1000Mbps optical fiber transmission, with large capacity which could be upgraded easily;
  • Having advanced adaptive technology, no field of the use of optical or electrical adjustment
  • Adapting three-level lighting protection technology on the computer ports and network signals.
  • Support for high level electromagnetic compatibility protection, support electrostatic discharge immunity, radiated electromagnetic field immunity, support electric fast transient burst anti-Rejection, support the surge immunity.
  • Support for a wide range of redundant dual DC power input, Power overload protection, Anti-reverse polarity protection.

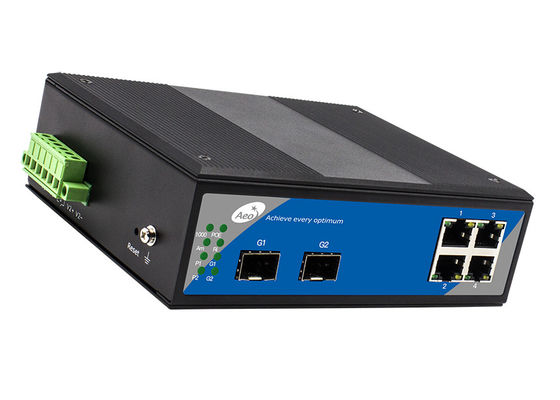

Product picture

Full Gigabit 4 Port Fiber Optic Switch 4 Ethernet 2 SFP Slots 0

Application Diagram



Full Gigabit 4 Port Fiber Optic Switch 4 Ethernet 2 SFP Slots 1



Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

Full Gigabit 4 Port Fiber Optic Switch 4 Ethernet 2 SFP Slots 2
