10 / 100Mbps SC 20KM SM Single Fiber Media Converter Card

10 / 100Mbps SC 20KM SM Single Fiber Media Converter Card

10 / 100Mbps SC 20KM SM Single Fiber Media Converter Card
10 / 100Mbps SC 20KM SM Single Fiber Media Converter Card
10 / 100Mbps SC 20KM SM Single Fiber Media Converter Card
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pairs/month
Contact Now
Detailed Product Description
Backplane Bandwidth: 1G Cache: 288K
MAC Address Table: 2K MAX Frame Size: 2047bytes
10/100Mbps Ethernet Port: One 10/100Mbps Adaptive RJ45 Interface 100Mbps Optical Port: One 10/100Mbps Optical Port,SC
Optical Wavelength: 1310/1550nm Input Voltage: DC5V±5%
Operating Temperature: -20~70°C Operating Humidity: 5% ~ 90%
Power Consumption: Full Load≤3W MTBF: 100000 Hours
High Light:

100Mbps Media Converter Card

,

10Mbps Media Converter Card

,

20KM SM Single Fiber Converter Card

10/100Mbps Fiber Media Converter Card SC 20KM Single Mode Single Fiber



Technical Parameters

Backplane Bandwidth 1G
Cache 288K
MAC Address Table 2K
MAX Frame size 2047bytes
10/100Mbps Ethernet port One 10/100Mbps adaptive RJ45 interface
100Mbps optical port One 10/100Mbps optical port,SC
Optical fiber port Single mode single fiber; multimode dual fiber is optional
Optical wavelength 1310/1550nm (single mode single fiber)
The input voltage DC5V±5%
Shell material Iron
Protection grade IP30
Operating temperature -20~70°C
Operating humidity 5% ~ 90%
Heat dissipation Built-in passive heatsink cooling, Silent fanless design
Transmission power -8~-2 dBm
Received sensitivity ≤-35 dBm
Power consumption Full load≤3W
MTBF 50000 hours



Product Overview

The 10/100Mbps Fiber Media Converter Card is a photoelectric conversion device that converts Ethernet signal into optical signals or optical signals into Ethernet signal, supplies one 10/100Mbps Ethernet port. Using advanced photoelectric conversion technology to convert Ethernet signal into optical signal that is transmitted on multimode or single mode fiber, the limitation of short distance of cable transmission is exceeded, and the transmission demand of long-distance high-speed Ethernet is met.



Product features

◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.

◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.

◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.

◆ Support the longest 2047bytes long packet transmission.

◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.

◆ To provide low delay of data transmission.



Product Picture

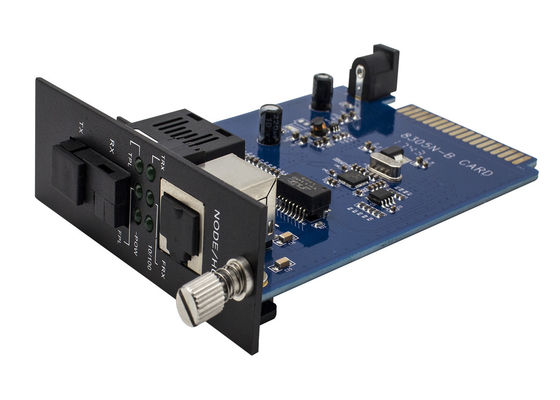

10 / 100Mbps SC 20KM SM Single Fiber Media Converter Card 0

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



10 / 100Mbps SC 20KM SM Single Fiber Media Converter Card 1
