8x10/100/1000M POE UTP To 1000M SFP Media Converter

8x10/100/1000M POE UTP To 1000M SFP Media Converter

  • 8x10/100/1000M POE UTP To 1000M SFP Media Converter
8x10/100/1000M POE UTP To 1000M SFP Media Converter
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Backplane Capacity: 55G Cache: 4Mbits
MAC Address Table: 8K Forward Rate: 17.9Mpps
Frame Length: 1.5~10kbyte Working Temperature: -40~85°C
Relative Humidity: 5% ~ 95% Level Of Protection: IP40
High Light:

1000M SFP Media Converter

,

POE UTP To SFP Media Converter

,

1000M SFP Fiber Switch

Industrial SFP Industrial Media Converter 8*10/100/1000M POE UTP Port to 1000M SFP Slot



Technical Parameter

10/100/1000Base-TX Port 8-Port RJ-45 auto-MDI / MDI-X
PoE Specification PoE Standard: IEEE802.3af/ IEEE802.3at
PoE ports:1-8 port support PoE

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices
Output Voltage: DC48V
Power Pin Assignment:1/2+;3/6-
Power Type: End-span( Mid-span optional)
1000Base-FX Port

 1 SFP Slot



Fiber Port Type

SC / multi-mode ,up to distance 2km ;

SC / single-mode ,up to distance 20km ;



Optical Frequency

1310nm



Performance Specification

Bandwidth: 55Gbps
MAC Address Table: 8K
Installation DIN rail
Maximum Frame Size 9000bytes packet size
Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure IP40 aluminum housing



LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

Power Input 48 to 57V DC redundant power
Power Consumption < 3 watts
Surge protection ±4KV



Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;

Network cables

1000BASE-TX: Cat6 or later UTP(≤100 meter)





Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification CE FCC Rohs compliance
MTBF >300,000hours
Dimensions (W x D x H) 143.7 x 103 x 44.2 mm
Weight

Product Weight: 0.56KG

Packing Weight: 0.66KG

Working Environment



Working temperature: -40~85 ;

Storage temperature: -40~85

Relative Humidity: 5%~95 %( no condensation)



Product Introduction

Industrial Ethernet Switch provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 PoE +1-port 1000Base-Fx delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.


Product Features

Interface
8-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, supplying 30W PoE, compatible with 802.3AT/AF
1-port 1000Base-Fx interface SC/FC/ST/SFP
1-port 1000Base-Fx interface SC/FC/ST/SFP
Single-Mode up to 20km/40km/60km/80km
Industrial conformance
48V to 57V DC, redundant power input
-40to 85operating temperature
IP40 aluminum housing
Supports 6KV DC Ethernet ESD protection
Supports 6KV DC EFT protection for power line
Free Fall, Shock and Vibration Stability
DIN-rail design



Product picture

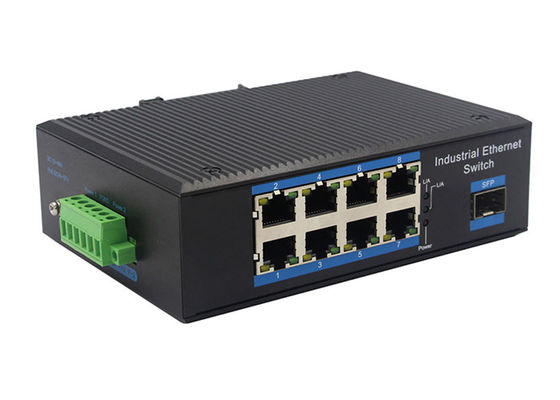

8x10/100/1000M POE UTP To 1000M SFP Media Converter 0
Packaging & Shipping


● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



8x10/100/1000M POE UTP To 1000M SFP Media Converter 1
