Serve every customer well with the most enthusiasm!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| Voltage Range: | AC 100～240V | 2 Uplink Ethernet Port: | 0-100M |
|---|---|---|---|
| POE Power Supply: | <120W | POE Agreement: | IEEE802.3 Af/at Standards |
| MTBF: | 50000 Hours | Switch Capacity: | 22G |
| MAC Address: | 8K | Working Temperature: | -10℃～55℃ |
| Storage Temperature: | -40℃-85℃ | Humidity(non-congeal): | 0~95% |
| Gigabit POE Ports: | 8 | Gigabit SFP Ports: | 2 |
| Gigabit Uplink Port: | 2 | ||
| High Light: | Wall Mount SFP Fiber Switch,City Power SFP Fiber Switch,8 Port Poe Sfp Switch |
||

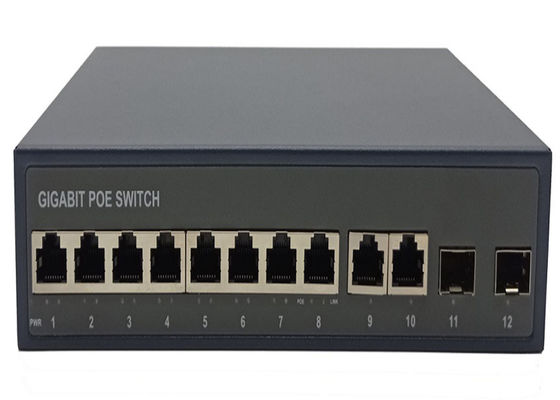

Full Gigabit POE SFP Fiber Switch 8 POE Ports + 2 SFP Ports + 2 Uplink Ports
Technical Parameters
| Item | Description | |
| Model | AEO-808GP-2G1SFP | |
| Power Supply | Power Supply Mode | City power |
| Voltage Range | AC100-240V | |
| Power Consumption | The device <5W, POE power supply <96/120W | |
| Network Port Parameter | Network Ports |
1～8 Ports: 10/100/1000Mbps Ethernet port, adaptive control Uplink 2 SFP:1.25Gbps and 2 10/100/100Mbps RJ45 |
| Transmission Distance |
1~8 Ethernet Port:0~100m Mandatory 10 Mbps reach up to 250m 2 uplink Ethernet Port:0~100m 2 SFP: According to different SFP |
|
| Transmission Media |
1~10 Ethernet Port:Cat5e/6 standard UTP cable, 2 SFP: LC interface optical fiber |
|
| POE Agreement | IEEE802.3 af/at standards | |
| PoE Power Supply Mode | End-span method | |
| PoE Power Supply Wattage | Each port≤30W,Whole device<96/120W | |
| Network Switch Specification | Network Standard | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T |
| Swap Mode | Store-and- forward | |
| Switch Capacity | 22Gbps | |
| MAC Address List | 8K | |
| Status Indicators | Power Indicator Light | One power light (green) |
| Optical Fiber Port Indicator | One fiber link indication light ( green), Green light keeps on when the fiber port is well connected | |
| PoE Indicator | 1~8 PoE indicator light(yellow) | |
| PoE Network Port LED | 1~10 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data | |
| Protection Level | Surge Immunity | Level 3, executive standard:IEC61000-4-5 |
| Electrostatic Protection | 1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2 | |
| Operating Environment | Working Temperature | -10℃～55℃ |
| Storage Temperature | -40℃-85℃ | |
| Humidity(non-congeal) | 0~95% | |
| Mechanical Attributes | Dimensions (L*W*H) | 202X140X45MM |
| Color | Black | |
| Weight | 1kg | |
| Reliability | Mean time between failures (MTBF) | ＞50000h |
Product Overview
To fulfill the demand of High Power PoE for network applications with Gigabit transmission, AEO-808GP-2G1SFP PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the AEO-808GP-2G1SFP features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 96/120-watt PoE budget on the whole system, It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / speed dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by doubling PoE power, more than the current conventional 802.3af PoE.
All RJ45 copper interfaces of the AEO-808GP-2G1SFP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 2 extra 10/100/100Mbps RJ45 and 2 extra 1.25Gbps SFP slots can be used for uplink.
Product features
Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
