1080P HDMI Over Ethernet Extender Kit With Audio Local Loop Out 1 Reverse IR Signal

HDMI Extender Over Ethernet Support 1080P with Audio Local Loop Out 1 Reverse IR Signal

Technical Parameters

Video index
Video version	HDMI 1.3 (full-digital)
HDCP protocol	1.2
Maximum pixel clock	148.5MHZ
Resolution	720 (1440) x 480i @ 59.94/60Hz 720 (1440) x 576i @ 50Hz 720 x 480p @ 59.94/60Hz 720 x 576p @ 50Hz 1280 x 720p @ 59.94/60Hz 1280 x 720p @ 50Hz 1920 x 1080i @ 59.94/60Hz 1920 x 1080i @ 50Hz 1920 x 1080p @ 23.98/24Hz 1920 x 1080p @ 59.94/60Hz 1920 x 1080p @ 50Hz
Effective cable length	Less than 10m
Physical interface	The HDMI-A interface
KVM(USB) index
Version	1.1
Tx physical interface	USB female type A
Rx physical interface	USB female type A
Audio index
Sampling frequency	32k,44.1k,48k,64k,88.2k,96k,176.4k,192kHz
Sampling depth	24bit
Dynamic bandwidth	96db
Total harmonic distortion(THD)	-88db
Signal to noise ratio(SNR)	96db
Audio input / output impedance	600Ω
Signal level	VPP 3.3V
Physical interface	3.5mm stereo audio socket
Signal type	Analog stereo channel
IR index
Infrared interface	Standard 3.5mm interface
Infrared frequency	Standard with 20-60KHz
Signal type	Digit signal
Infrared transmission direction	Reverse transmission
Other indexes
Working temperature	-20°C ~70°C
Storage temperature	-40°C ~85°C
Product size	104*104*28mm
Product net weight (Pair)	0.35/kg
Product weight (including outer packaging)	0.6/kg
Product outer packaging dimensions	275*220*55mm
Power supply	5V 1A
Power dissipation	2.5W

Overview

HDMI extender over ethernet is used to extend the transmission of HDMI audio and video signals, are usually used in the HDMI cable limit length cannot meet the transmission distance.This product transmits HDMI audio and video signal up to 200M user through the CAT5e/6 cable,equipment supports TCP/IP network protocol, can realize one transmitter to multiple receiver transmission through ethernet switches, remote transmission while supporting local HDMI output, support infrared return transmission, independent audio transmission, remote control of signal source (host-KVM,TV box-IR infrared), to ensure the stability of the signal while reducing the cost for the user.the EDID built-in audio of HDMI extender over ethernet greatly improves the compatibility of the device.The equipment has a long transmission distance, low use cost, convenient installation, good compatibility, and is a stable and efficient transmission mode.

Widely used in information release system, security monitoring, video conferencing system, HD teaching system, LCD splicing Large screen, LED splicing screen, engineering projection fusion and other projects.

Features

• 1.HDMI video support maximum resolution 1920*1080P@60Hz downward compatibility

  2.Integrated HDCP decrypt engine to receive protected audio and video content

• 3.EDID transparent transmission mode, automatically matching the signal source and display equipment

• 4.Transmitter supports the local loop out monitoring function

• 5.Support 24bit-embedded digital audio

  6.Support independent analog of 3.5mm audio

  7.Support audio embedding/unembedding function

  8.Support KVM function (keyboard and mouse)

  9.Support reverse IR infrared function

  10.Support point to point, point to many transmission through ethernet switches (up to 255 points)

• 11.The transmission distance up to 200 meters through CAT5e/6 cable

• 12.Built-in ESD electrostatic protection circuit, simple to install, plug and play

  13.The equipment has a differentiated transmitter (signal source), a receiver (display end)

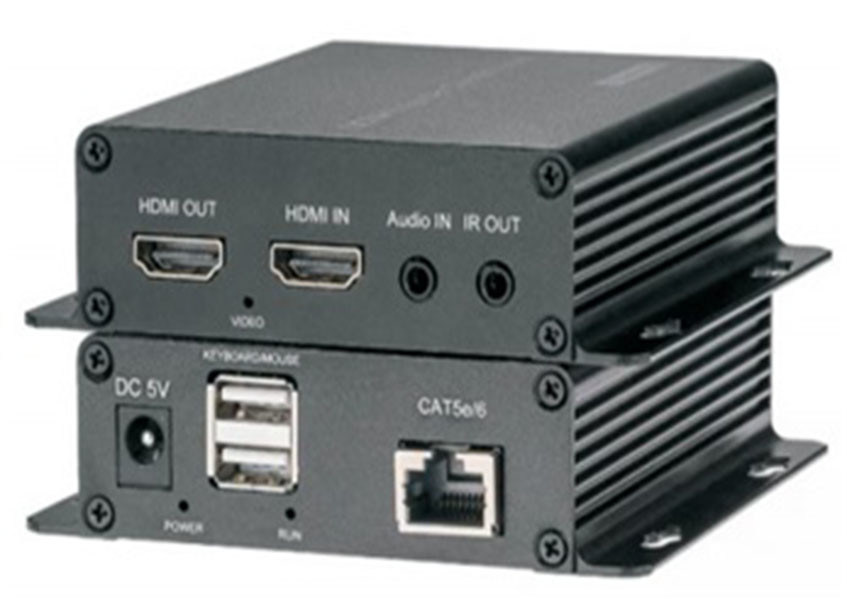

Product picture
