1080P HDMI Fiber Converter Bidirectional Audio RS232 Over Fiber Optic Extender

1080P HDMI Fiber Converter Bidirectional Audio RS232 Over Fiber Optic Extender

  • 1080P HDMI Fiber Converter Bidirectional Audio RS232 Over Fiber Optic Extender
1080P HDMI Fiber Converter Bidirectional Audio RS232 Over Fiber Optic Extender
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pairs/month
Contact Now
Detailed Product Description
Maximum Data Rate: 6.75Gbps Wavelength: 850nm/1310nm/1550nm
Transmission Distance: 20km Operating Temperature: -20℃ ~ +70℃
Audio Interface: 3.5MM External Stereo Audio Product Name: HDMI Fiber Extender
High Light:

Audio RS232 Over Fiber Optic Extender

,

1080P HDMI Fiber Converter

,

RS232 HDMI Fiber Converter

1080P HDMI Fiber Converter Bidirectional Audio RS232 over Fiber Optic Extender



Product Overview

HDMI Fiber optic extender provides extension of HDMI, bidirectional audio and RS232 over one fiber optic cable, it supports HDMI1.4 mode, it is fully compatible with HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security





Technical Paramaters

Product Name
Fiber Extender
HDMI Cable Range
<5Meter (Resolution up to 1920*1200@60Hz)
Optical fiber Interface
SFP model – LC connector
Fiber type
Single-mode
Wavelength
850nm/1310nm/1550nm
Interface bandwidth
3Gbps
Power dissipation
MAX 4W

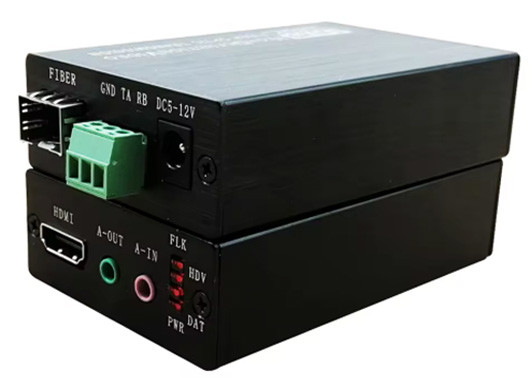

Product picture1080P HDMI Fiber Converter Bidirectional Audio RS232 Over Fiber Optic Extender 0

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



1080P HDMI Fiber Converter Bidirectional Audio RS232 Over Fiber Optic Extender 1
