| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC, ROHS |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/month |
| Gigabit Network Ports: | 4 POE | Gigabit SFP Slot: | 4 |
|---|---|---|---|
| MAC Address Table: | 8K | Bit: | 4M |
| Fiber Ports Propertie: | 1310/1550nm | Transmission Distance: | 0-100KM |
| Input Voltage: | DC:44V~57V | Operating Temperature: | -40 ~ 85℃ |
| Network Port Delay: | ﹤9.6μS | Network Port Bit Error Rate: | ﹤1/1000000000 |
| Power Consumption: | ≤12W | MTBF: | 100000 Hours |
| Type: | Management | ||
| High Light: | Full Gigabit Managed Fiber POE Switch,Fiber POE Switch 100KM,8K MAC Fiber Optic POE Switch |
||
Managed Fiber POE Switch Full Gigabit 4 SFP Slots and 4 POE Ports
Technical Parameters
| Product Name | 10/100/1000Mbps Managed Industrial POE Fiber Switch |
| Port |
4 x 1000Mpbs SFP port 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ab, IEEE802.3az |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions) |
| POE Output Power | IEEE802.3af:15.5W IEEE802.3at:25.5W |
| Environment | Working Temp:-40°～ 85°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4 |
| Safety | CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell; Safety class:IP44; Mounting method:Din-rail mounting |
System Overview
Managed Fiber POE Switch is the 10/100/1000 Mbps managed industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Product Features
1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
3. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
4. 4 x 1000Mbps SFP fiber port
5. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Support Auto MDI/MDIX
7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
9. A store-and-forward switching mechanism
10. Operating environment temperature:-40 ° ~85 ° c
11. Support cable diagnosis and can locate the fault point
12. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management,optimize power consumption
13. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
14. Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
15. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN,Protocol VLAN,VLAN
16. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
17. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
18. Support IGMP agent report, MLD snooping
19. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
20. Support like CLI, Web management, SNMP v1/v2c/v3, Telnet
21.Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
22. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
23. Support RMON, MIB II, , event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
24. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.

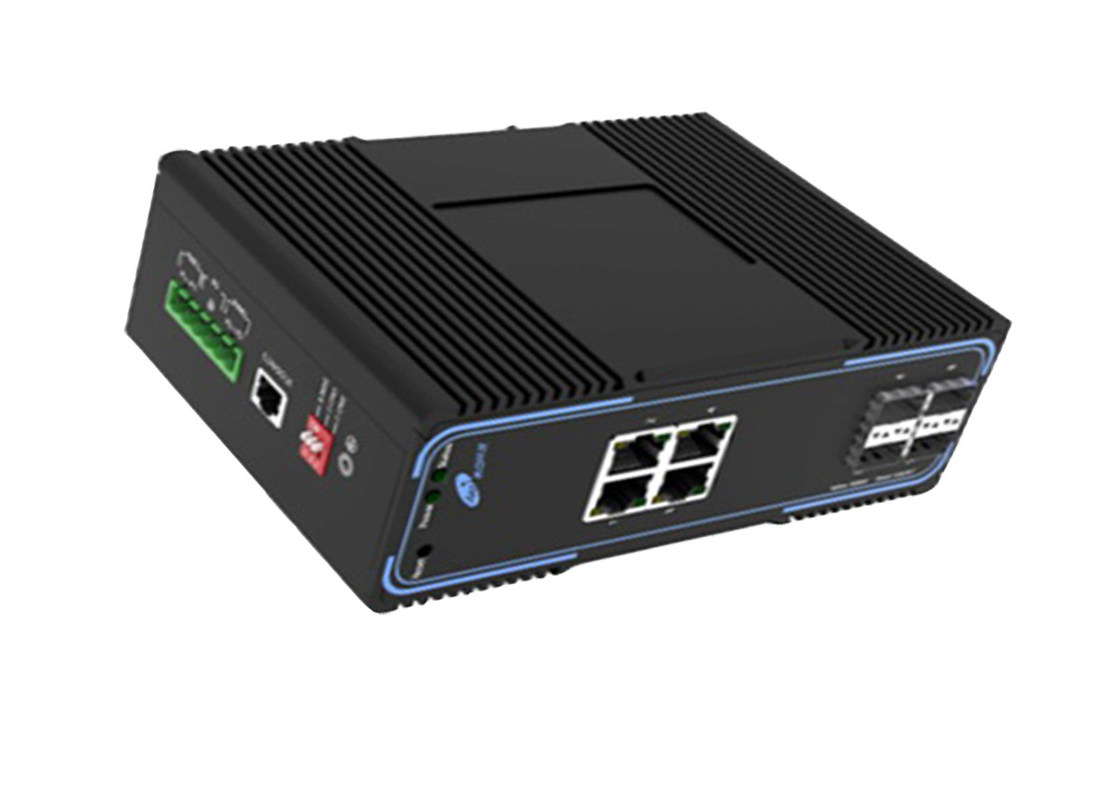

Product Pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
