| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Rate: | 10/100/1000Mbps | Fiber Type: | Single / Dual Fiber |
|---|---|---|---|
| Transmission Mode: | Half / Full Duplex | Optic Interface: | SC/FC/ST |
| BER: | < 1/1000000000 | POWER: | 2.5W |
| High Light: | 2.5W Fiber Media Converter,Full Gigabit Fiber Media Converter |
||
Multi-port Fiber Media Converter with Full Gigabit 8 Fiber and 2 RJ45 Ports
Technical Parameter
| Rate | 10/100/1000Mbps |
| Protocol | supported IEEE802.3 |
| Fiber type | single / dual fiber |
| Optic mode | single / multimode |
| Transmission mode | half / full duplex |
| Ethernet interface | RJ-45 |
| Optic interface | SC/FC/ST |
| Optic wavelength | 850nm, 1310nm, 1550nm,1310/1550nm,1490/1550nm |
| BER | < 1/1000000000 |
| MTBF | 100000 hours |
| POWER | 2.5W |
| Power supply | AC220V/0.5A,DC-48 V /0.5A, DC5V/1A,2A |
| Working temperature | 0~50℃ |
| Working humidity | 5%-95% |
| Storage temperature | -0℃~70℃ |
| Storage humidity | 5%~95%(no-condensing) |
Product Introduction
The multi-port fiber media converter, also named unmanageable fiber switch, it has the similar functions as normal fiber media converter, when you use the converter,all the data from different ports can be shared, realize the data sharing.It is suitable for intelligent community, it extend the network transmission from 100m to 120km.
Product Feature
* Supports 10/100/1000Base-T, 1000Base-X protocol.
* Flow control for full duplex and half duplex.
* Supports up to 10k byte JUMBO frame.
* Supports Fiber Port Trunking, Increasing Fiber Channel Bandwidth and Supply Fiber Channel Redundancy.
* Supports Ports Based VLANS and TAG Based VLANS.
* In conformity to safety code of FCC and CE MARK.
* Connector: Multi-UTP RJ-45connector, one or two fiber connector
* Operation mode: full duplex mode or half duplex mode
* Power supply parameter: DC 5V 1A/2A
* Environmental temperature: 0-50℃
* Relative humidity: 5%-90%
* UTP cable: Cat5 UTP cable
* Transfer fiber: multimode(50/125, 62.5/125 or 100/140um); single mod( 8.3/125,8.7/125, 9/125 or 10/125um).

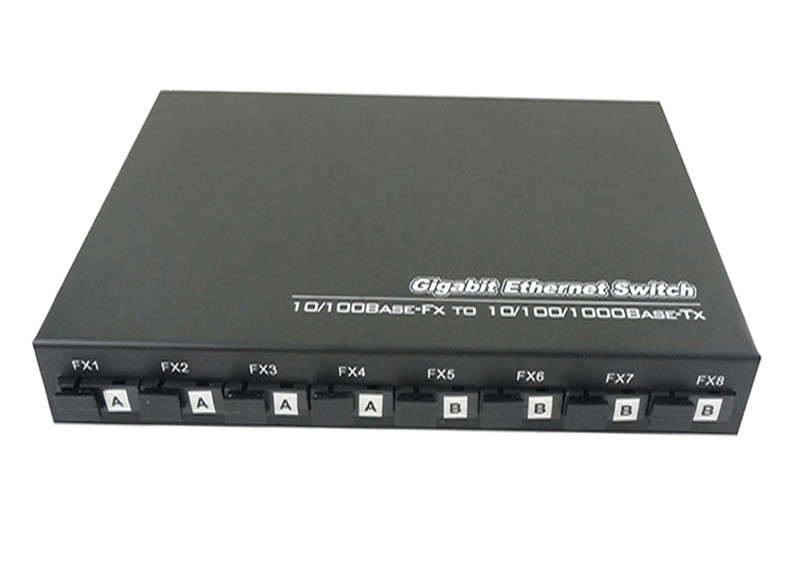

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
