| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| Optical Wavelength: | 1310/1550nm | Voltage Range: | DC5V |
|---|---|---|---|
| Ethernet Port: | 0-100M | Power Consumption: | <3W |
| Use: | FTTH | MTBF: | 50000 Hours |
| Working Temp: | -10℃~ 60℃ | Humidity: | 5~90% Non-condensing |
| High Light: | 10/100Mbps Fiber Media Converter,1 channel FTTH Fiber Media Converter,RJ45 interface Fiber Media Converter |
||
10/100Mbps Fiber Media Converter with Ethernet Port and Fiber Port at Two Sides
Technical Parameters
| Fiber interface parameters (single fiber / dual fiber) | |
| Wavelength | Single mode 1310nm/1550nm； Multimode 850nm/1310nm |
| Number of fiber cores | Duplex , Simplex |
| Transmission power | -9dBm/-5dBm |
| Transmission distance | 0-100KM (dual fiber) 0-120 KM |
| Receiver sensitivity | better than -34dBm |
| Fiber Connector | FC/SC/ST optional |
| Ethernet interface | |
| Number of channels | 1channel |
| Rate | 10M,100M |
| Standard | IEEE802.3/ IEEE802.3u / IEEE802.3ab / IEEE802.3z |
| Support VLAN | support IEEE 802.1Q VLAN |
| Maximum package | supports up to 1600 Bytes of packet transmission |
| Network port sequence | automatic identification through and cross the line |
| Ethernet connector | RJ45 interface |
| Power and environmental indicators | |
| Power | 3W |
| Power supply | +9V~+36V DC |
| Operating temperature | -0°C~+50°C |
| Storage temperature | -50°C~+85°C |
| Working humidity | 0 ~ 95% non-condensing |
| Physical characteristics | |
| Independent size (mm) | 67L * 75W * 26H |
| Card Type size (mm) | 67L*75W*12H |
| Independent weight (kg) | 0.25 |
| Card Type Weight (kg) | 0.05 |
|
Mean time between failures (MTBF) |
100,000 hours or more |
| LED indicator | power, Ethernet, optical link, full / half duplex |
Product Overview
series of mini (micro) Ethernet fiber optic transceivers, the size is only 67mm * 75mm * 26mm, smaller than the business card, easy to install in a variety of waterproof box or integrated ball machine inside (fiber Ball) and explosion-proof cameras, the product can be stable in the 0 °C ~ +50 °C harsh climate environment, +9 ~ +36 V wide range of power supply design can adapt to many occasions. This series can be a single fiber transmission 1 channel Ethernet , support a video server or network camera access.
This Ethernet optical transceiver (fiber optic transceivers) with Ethernet interface triple lightning protection design, effective against lightning damage.
Product features

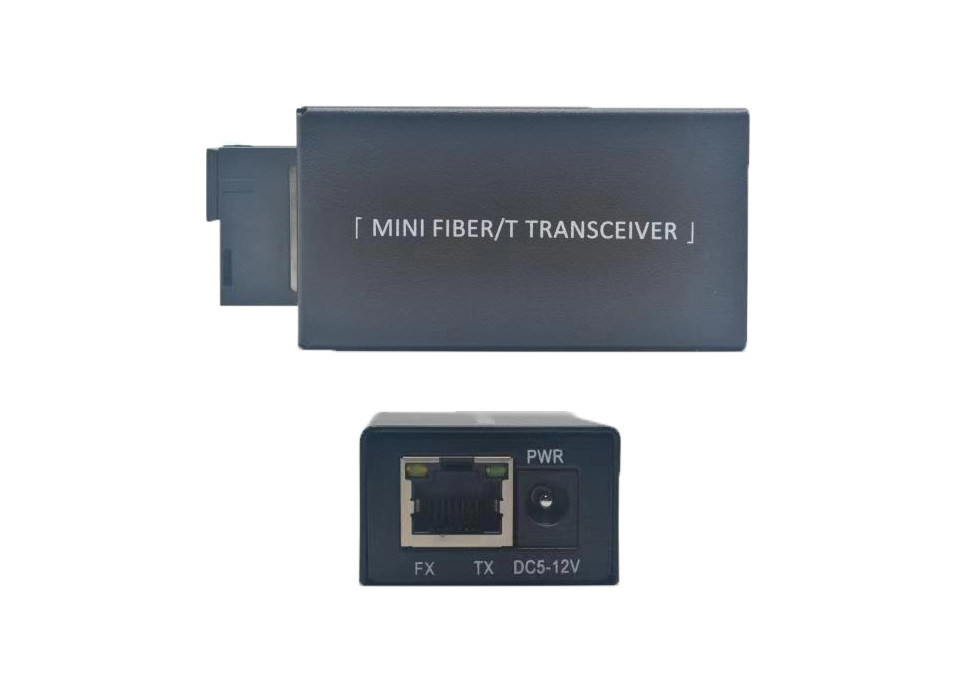

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
