Place of Origin: | China |
Brand Name: | AEO |
Certification: | CE, FCC |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotiation |
Packaging Details: | package and carton |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T |
Supply Ability: | 10000 pcs/month |
10/100/1000M Ethernet POE Port: | 4 | 10/100/1000M Optical Port: | 1 |
---|---|---|---|
Transmission Distance: | 0-100km | Backplane Processing Capacity: | 14Gbps |
MAC Address Table: | 2K | Cache: | 1Mbit |
MAX Frame Length: | 9216bytes | Power Consumption: | ≤4W |
Optical Fiber Port: | Single Mode Single Fiber | Receiving Sensitivity: | ≤-24 DBm |
High Light: | POE Ethernet Media Converter,4 POE Ports Ethernet Media Converter,250M Fiber Media Converter |
POE Ethernet Media Converter Full Gigabit 1 Fiber and 4 POE Ports for 250M Transmission Distance
Technical parameters
Network port | 4 10/100/1000Base-T(X) adaptive POE RJ45 Ethernet ports | |
Optical port | 1 10/100/1000Mbps optical port, standard SC (ST, FC is optional) | |
Transmission distance | Standard is 20km, 40/60/80/100km is optional. | |
Backplane processing capacity | 12G | |
MAC address table | 8K | |
Cache | 1M | |
MAX frame length | 10Kbytes | |
Power Consumption | ≤4W | |
Fiber wavelength | 1310nm/1550nm(single mode single fiber also can be multimode dual fiber) | |
Transmitted power | -10~-2 dBm | |
POE | Standard protocol | IEEE802.3af/at |
Pin Connections | V+ V+ V- V- corresponding to 4,5,7,8(1,2,3,6 optional) | |
Input voltage | +44~+57VDC | |
Output power | IEEE802.3af:15.5W IEEE802.3at:25.5W | |
Receiving sensitivity | ≤-24 dBm | |
Relative humidity | 5~90% | |
operating temperature | -10~60°C | |
Shell material | iron |
Product overview
POE Ethernet Media Converter is the 10/100/1000Mbps monitoring dedicated switch with the management functions, it automatically adapts to 10/100/1000Mbps transmission rate and supplies 4 Ethernet ports to meet user requirements, the transmission distance can be more than 100km to meet the requirements of long distance and high speed Ethernet, can easily realize the mainboard server, repeaters, network camera, the interconnection between the terminals and the terminal. Product performance is stable and reliable, the design meets Ethernet standard, and with lightning protection measures. Especially suitable for telecom, cable TV, railways, military, financial securities, customs, civil aviation, sea transport, electric power, water conservancy, oil field and other broadband data network and require high reliability of data transmission or set up IP data transmission field of private network.
Product features
◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.
◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.
◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.
◆ Support the longest 10kbyte long packet transmission.
◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.
◆ To provide low delay of data transmission.
◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 200M.
◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.

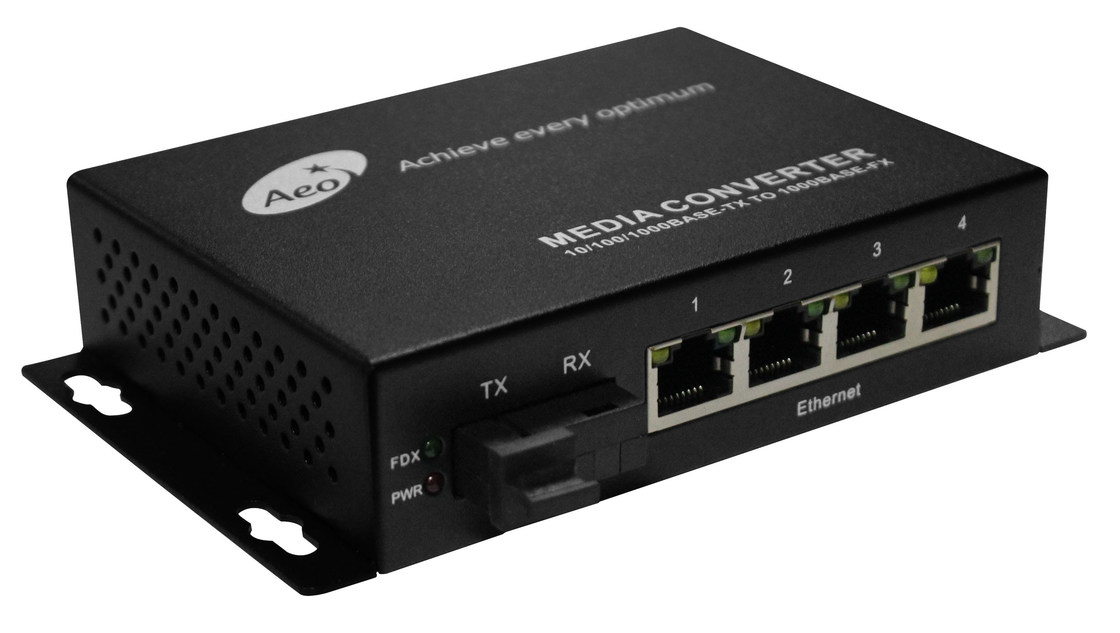

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
