| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC, ROHS |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/month |
| Bandwidth: | 155M | Distance: | 20km |
|---|---|---|---|
| Optical Connector: | LC | Temperature Range: | 0°C~70°C |
| Item: | 155M Copper Module | Optical Wavelength: | 3.3v |
| High Light: | 1550nm Bidi SFP Module,155M Bidi SFP Module,Simplex WDM SFP Module |
||
155M Bidi SFP Module 1310/1550nm 20km LC WDM SFP Transceiver Simplex SFP
Technical Parameters
| Up to 155Mb/s Data Links |
| Hot-Pluggable |
| Single LC connector |
| Up to 20 km on 9/125μm SMF |
| 1310nm FP laser transmitter |
| 1550nm PIN photo-detector |
| Single +3.3V Power Supply |
| Monitoring Interface Compliant with SFF-8472 |
| Maximum Power <1W |
| Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available |
| RoHS compliant and Lead Free |
Product Overview
SFP Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 19dB link budge ensure this module SONET OC-3 / SDH STM -1 20km application.
Key Feature
Up to 155Mb/s Data Links
Hot-Pluggable
Single LC connector
Up to 20 km on 9/125μm SMF
1310nm FP laser transmitter
1550nm PIN photo-detector
Single +3.3V Power Supply
Monitoring Interface Compliant with SFF-8472
Maximum Power <1W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
RoHS compliant and Lead Free

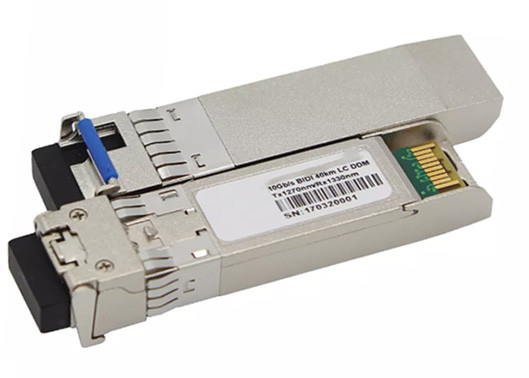

Product Pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
