5 Port SFP Ethernet Switch , 1000Mbps Industrial POE Gigabit Switch

5 Port SFP Ethernet Switch , 1000Mbps Industrial POE Gigabit Switch

  • 5 Port SFP Ethernet Switch , 1000Mbps Industrial POE Gigabit Switch
5 Port SFP Ethernet Switch , 1000Mbps Industrial POE Gigabit Switch
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC, ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Transmission Distance: 20Km System Bandwidth: 10G
Packet Forwarding Rate: 7.44Mpps Working Temperature: -40°~ 80°C
MAC: 4K MTBF: 100000 Hours
High Light:

20Km SFP Ethernet Switch

,

1000Mbps POE Gigabit Switch

,

Industrial POE Gigabit Switch

SFP Ethernet Switch 1000Mbps Industrial POE Gigabit Switch 5 port



Technical Parameters

Port
1x 1000Mpbs SFP ports
SM:1310nm/1550nm,20Km
1490nm/1550nm,40~120Km
MM:1310nm,2Km
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features
Transmission mode:storage and forward
System bandwidth:10Gbps (non-traffic jam)
Packet Forwarding Rate:7.44Mpps
MAC:4K
Queue Buffer:1.75M
Network media
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs
Power, network, fiber
Power supply
POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 15.4W (port 1~4)
(802.3at standards required special instructions)
Environment
Working temperature:-40°~ 85°C
Storage temperature:-40°~ 85°C
Working humidity:10%~90%,non-condensing
Storage humidity:10%~95%,non-condensing
Industry Standards
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6
(CS) Level 3,EN 61000-4-8
Traffic Control:NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic:EN 50121-4
Safety
CE Mark ,commercial
CE/LVD EN60950
Mechanical information
Shell:Corrugated metal shell
Safety class:IP40
Dimension: 113.8 x 93 x 34.9mm
Mounting method:Din-rail mounting
Weight: 1kg



System Overview

SFP Ethernet Switch 1000Mbps Industrial POE Gigabit Switch 5 port is the 1000Mbps industrial fiber media converter, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Product Features

* Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
* IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
* Support Auto MDI/MDIX
* IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
* Max power to15.4W under af standard, 30W under at standard to each PoE port
* Operating environment temperature:-40 ° ~85 ° c



Product Pictures

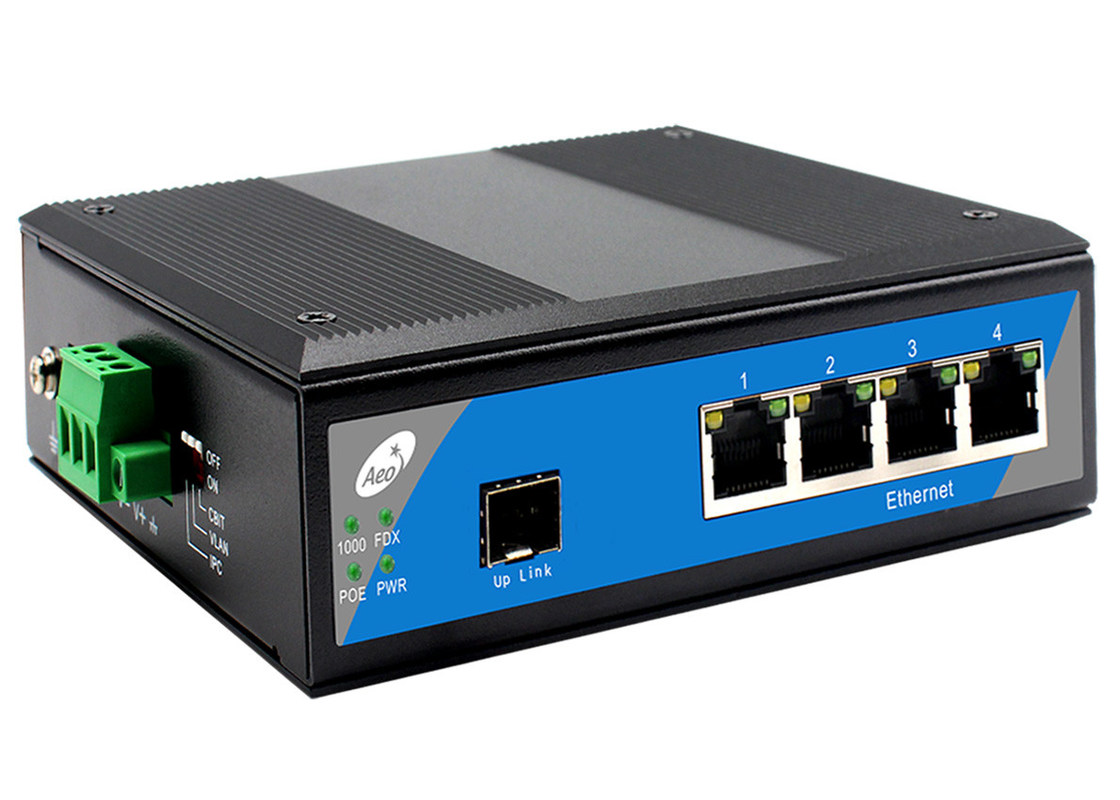

5 Port SFP Ethernet Switch , 1000Mbps Industrial POE Gigabit Switch 0

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

5 Port SFP Ethernet Switch , 1000Mbps Industrial POE Gigabit Switch 1
