Place of Origin: | China |
Brand Name: | AEO |
Certification: | CE, FCC |
Minimum Order Quantity: | 1 pair |
---|---|
Packaging Details: | package and carton |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T |
Supply Ability: | 10000 pairs/month |
Optical Interface: | SC Standard, ST/FC Optional | Transmission Distance: | 9/125 SMF:20/40/60/80Km |
---|---|---|---|
Rate: | 0-120Kbps | Baud Rate: | 300 Baud To 115,200 Baud |
Power Rate: | 5-40V, 2W | Operation Temperature: | -25°C To +70°C |
High Light: | RS232 Serial To Fiber Media Converter,120Kbps Serial To Fiber Media Converter,RS485 Fiber Media Converter |
Industrial RS232/RS422/RS485 Serial to Fiber Media Converter
Technical Parameters
Standard | EIA /TIA RS232, RS-422, RS-485 |
Fiber Connector | SC standard, ST/FC optional |
Fiber Distance | 9/125 SMF:20/40/60/80Km |
Serial Connector | RS-232, RS-422, RS-485: phoenix terminal |
Serial Distance | RS232: 15 meters, RS-422, RS-485: 1500 meters |
Rate | 0-120Kbps |
Baud Rate | 300 Baud to 115,200 Baud |
RS-232 | IN, OUT, GND |
RS-485 | D+, D-, GND |
RS-422 | R+, R-, T+, T-, GND |
Power Supply |
110V ~ 240VAC to 5VDC with external power adapter 110V~240VAC to 12-48VDC with External power adapter |
Power rate | 5-40V, 2W |
Static protection | 15KV electric static discharge (ESD) protection |
Surge protection | 1500W/sec surge protection |
Operation Temperature | -25°C to +70°C |
Storage Temperature | -40°C to +85°C |
Storage Humidity | 5%~90% non-condescending |
Product Overview
industrial grade RS-232 / RS-422/ RS-485 to fiber optic converter which converts a standard RS-232 / RS-422 / RS-485 transceiver to a fiber optic link as to extend the serial signal up to 80Km on single mode fiber. This unit is enclosed in an industrial wall mount compact size rugged steel case.
Product features
◆ Plug-and-play, hot pluggable
◆ Extends RS-232 / RS-422 / RS-485 transmission up to 80Km on SMF
◆ Industrial Wall Mount Compact size rugged case
◆ Protects against electrical interference and chemical corrosion
◆ Built-in surge and static protection
◆ Diagnostic and unit indicator LEDs
◆ Wide temperature range

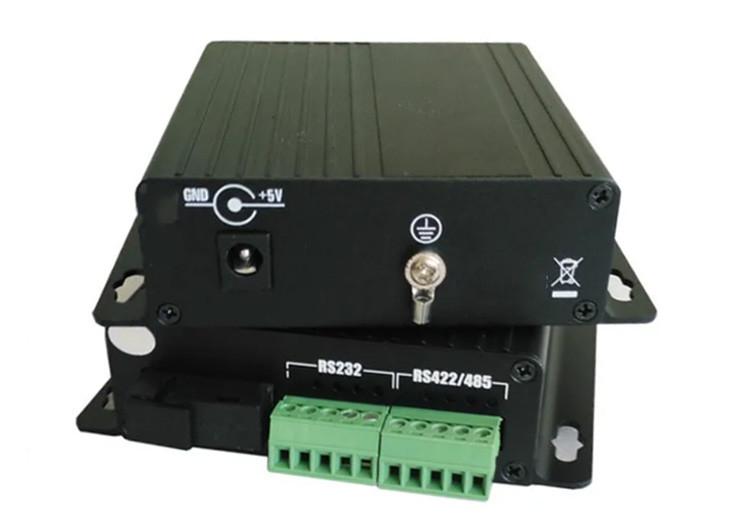

Product Pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
