| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE,FCC,ROHS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Box, Carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | 100% T/T in advanced |
| Supply Ability: | 10000pcs every month |
| Transmission Mode: | Storage And Forward | MTBF: | 100,000 Hours |
|---|---|---|---|
| Operating Temperature: | -40 To 85°C | Fiber Port: | Single Mode Single Fiber |
| Transmission Distance: | 0-100km | Humidity: | 5 To 95% |
| Safety Class: | IP40 | Storage Temperature: | -40 To 85°C |
| High Light: | Din Rail SFP Fiber Switch,4 Ethernet Ports SFP Fiber Switch |
||

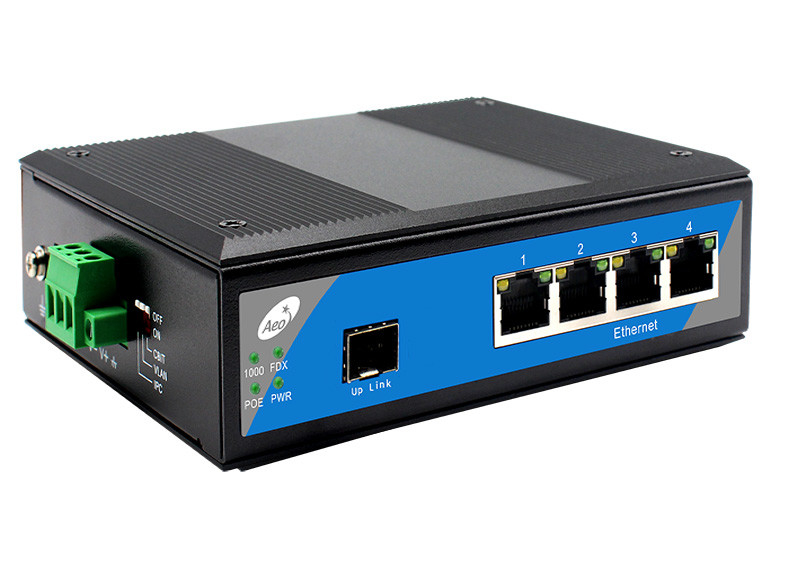

Introducing the SFP Fiber Switch – designed to provide fast and efficient Ethernet communications for your business. This switch is equipped with SFP ports with its storage and forward transmission mode, this switch is capable of supporting single-mode single-fiber networks, and can be used to connect different types of Ethernet media converters, switches, and optical switches. It operates within a wide temperature range of -40 to 85°C and has a storage temperature range of -40 to 85°C, and can withstand humidity levels of 5 to 95%. This switch is the perfect choice for businesses looking to upgrade their Ethernet infrastructure with reliable fiber optics.
| Backboard capacity | 1G | |
| Cache | 512kbit | |
| MAC address | 1K | |
| Max frame | 1536bytes | |
| Ethernet port | 4 POE 10/100Mbps rj45 ports | |
| Optic interface | Optical module | |
| Ethernet port (10/100Mbps) | 4 | |
| Optic interface (10/100Mbps) | 1 | |
| Optical type | Single mode single fiber | |
| Optical interface | SC | |
| Transmission distance | Standard 20Km | |
| Input voltage | DC44V - 57V | |
| Working temperature | -40℃ ~ 85℃ | |
| Relative humidity | 5% ~ 90% (Non-Condensing) | |
| Shell Material | Iron | |
| Heat dissipation | Built-in passive heatsink cooling, Silent fanless design | |
| Surge protection (Ethernet) | Common mode ±4KV(10/700µS), Differential mode ±2KV(10/700µS) | |
| Surge protection (Power) | 2000A (8/20µS) | |
| POE | Standard Protocol | IEEE 802.3af/at |
| Pin Definition | V+,V+,V-,V- Corresponding to 1,2,3,6 | |
| The Output Power | IEEE802.3af:15.5W IEEE802.3at:25.5W | |
| Power consumption | Full load≤4W | |
| Mean Time Between Failure (MTBF) | 100000 hours | |
SFP Fiber Switch is a reliable switch for many applications, from the small office to the data center. It is certified by CE, FCC, ROHS and comes with a minimum order quantity of 1 set. It is packaged in a box and carton for easy transportation, and can be delivered within 3-4 working days with a 100% T/T in advanced payment. We have a supply ability of 10000pcs every month. It has a wide storage temperature and humidity range of -40 To 85°C and 5 To 95% respectively. The operating temperature and safety class are -20 To 70°C and IP40 respectively. It can be powered by both AC and DC.
Packaging and Shipping for SFP Fiber Switch:
The SFP Fiber Switch is packaged in an anti-static bag and then placed in a cardboard box. The box is filled with bubble wrap and foam to ensure that the product is not damaged during transportation. All packages are shipped with tracking information provided by the carrier.
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
