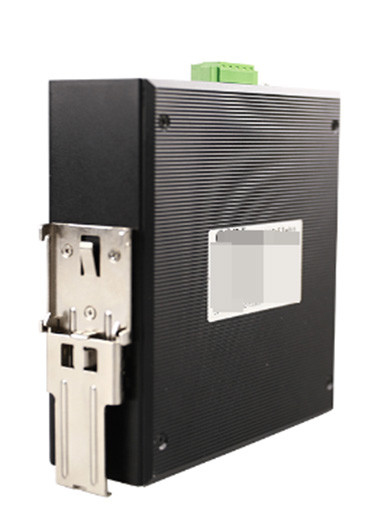

Full Gigabit 10 Port L2+ Managed Switch Industrial BT PoE Switch

Full Gigabit 10 Port L2+ Managed Switch Industrial BT PoE Switch

  • Full Gigabit 10 Port L2+ Managed Switch Industrial BT PoE Switch
Full Gigabit 10 Port L2+ Managed Switch Industrial BT PoE Switch
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE,FCC,ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Box, Carton
Delivery Time: 3-4 working days
Payment Terms: 100% T/T in advanced
Supply Ability: 10000pcs every month
Contact Now
Detailed Product Description
MTBF: 100,000 Hours Operating Temperature: -40 To 85°C
Humidity: 5 To 95% Transmission Mode: Storage And Forward
Max Power Per Port: 90W, IEEE 802.3 Af/at/bt Jumbo Frame: 9.6K
High Light:

Full Gigabit L2+ Managed Switch


10 port L2+ Managed Switch

Product Description:

It is a Gigabit L2+ managed industrial bt PoE fiber switch independently. It has 8*10/100/1000Base-T adaptive RJ45 and 2*100/1000Base-X SFP fiber ports. Port 1-8 supports IEEE 802.3 af/at/bt PoE standard, and the single-port PoE power up to 90W. As a PoE power supply device, it can automatically detect and identify powered devices that meet standards and power them through network cables. Powering POE terminal equipment such as high-power wireless AP, network dome cameras, high-power PoE lighting, industrial sensors, and high-power network industrial control equipment through network cables to meet the network environment that requires high-density and high-power PoE power supply. It is suitable for intelligent transportation, Industrial sites such as rail transit, electric power, mining, metallurgy, and green energy construction have established economical, efficient, stable, and reliable communication networks.


Technical Parameters:

Interface Characteristics
Fixed Port

1*RS232 console port (115200,N,8,1)

2*100/1000Base-X uplink SFP ports (Data)

8*10/100/1000Base-T bt PoE ports (Data/Power)

2 set of V+, V- redundant DC power interface (6 Pin Phoenix terminal)

Ethernet Port Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meters)

100BASE-TX: Cat5 or later UTP(≤100 meters)

1000BASE-T: Cat5e or later UTP(≤100 meters)

SFP Slot Port Gigabit SFP optical fiber port, default no include optical modules (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance

Multi-mode: 850nm/ 0-500m

Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.

Chip Parameter
Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x

Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 20Gbps



CPU 416MHz
Buffer Memory 4M
Jumbo Frame 9.6K
LED Indicator

Fiber port: L/A (Green), PoE: PoE (Green)

Power: PWR (Yellow), System: SYS (Yellow), Network: Link (Yellow)

Reset Switch Yes, (Press and hold for 10 seconds and release, the switch will restore the factory settings)
PoE & Power Supply
PoE Port Port 1 to 8, IEEE 802.3 af/at/bt
PoE Management

Port PoE working status display

Port PoE output priority configuration

PoE power supply total power limit configuration

Power delay start, PoE work and time scheduling

Port PoE output power distribution, PoE on/off, af/at/bt power distribution

Power Supply Pin 1/2(+)3/6(-) 4/5(+)7/8(-)
Max Power Per Port 90W, IEEE 802.3 af/at/bt
Power Consumption Standby<8W, Full load<480W
Working Voltage DC48-57V, 6 Pin industrial Phoenix terminal, support anti-reverse protection.
Power Supply No, optional 48V/240W or 48V/480W industrial power supply
