Place of Origin: | China |
Brand Name: | AEO |
Certification: | CE, FCC |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotiation |
Packaging Details: | package and carton |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T |
Supply Ability: | 10000 pcs/month |
Fiber Port: | 1port SFP Slot | Data Rate: | 1000Mbps |
---|---|---|---|
Fiber Type: | Dual Fiber Or BiDi(decided By SFP Module) | Data Buffer: | 2M |
High Light: | 1SFP Fiber Media Converter,1000Mbps SFP Media Converter,1RJ45 Fiber Media Converter |
Fiber Media Converter 1SFP and 1RJ45 Port SFP Media Converter
Technical parameters
Optical Specs. |
Fiber Port | 1port SFP Slot |
Fiber Type | Dual Fiber or BiDi(decided by SFP Module) | |
Data Rate | 1000Mbps | |
Wavelength & Distance |
Dual Fiber: Multimode 850nm 550m; 1310nm 2km Single mode 1310nm, 1550nm from 10km to 120km BiDi: 1310/1550nm 2/10/20/40km; 1490/1550nm 60/80/100/120/160km (decided by SFP Module) |
|
Ethernet Specs. |
Cable | Twisted-pair |
Transmission Type | 10/100/1000Mbps Full Duplex/Half Duplex | |
Distance | 100meter | |
BER | <1E-9 | |
Data Buffer | 2M | |
Power | 4w | |
Power Temp. Variation | 0.2mw /℃ | |
Operate Temp. | 0~70℃ | |
Storage Temp. | -40~85℃ | |
Humidity | 95% non-condensing | |
Power Supply | AC100~240V -50/60Hz +5V DC, -48VDC(optional) | |
Weight | 0.4KG | |
Dimension | External power | 95x70x26mm |
Product overview
The media converter transmits the transmission media of Ethernet signal from UTP cable to optical fiber. It can extend the transmission distance up to 120km. Using media converter is an economical solution to achieve long distance transmission base on current status.
Product features
* Max. 2M buffer memory built in chip.
* Auto negotiation back pressure flow control for full duplex IEEE802.3 X and half duplex.
* Automatic identification of MDI/MDI-X cross line
* High-performance 1.4Gbps memory bandwidth.
* LED display for PWR,link/activity, full/half duplex,100M,1000M
* Forward 1600 bytes packet for management;
* max. transmission distance can be 120km;
* 9K bytes.
Optional Features:
* Supports link fault pass through function (LFP);
* Supports for end fault function;
* Support EEPROM configuration;
* Pass all packets without address and CRC check;
* Forward fragments.
Standard
* IEEE 802.3 10 Base-T standard.
* IEEE 802.3u 100 Base-TX/FX standard.
* IEEE 802.3z 1000 Base-TX/FX standard.
* IEEE 802.3x Flow control standard.

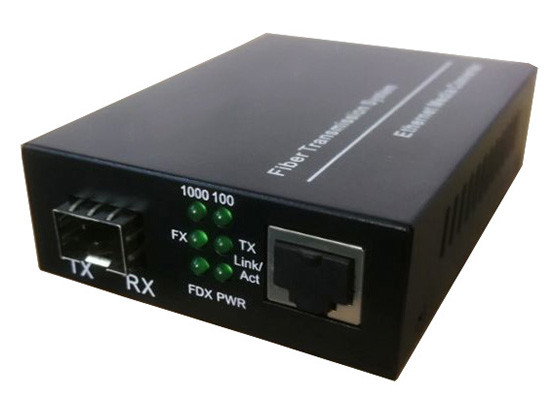

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
