Serve every customer well with the most enthusiasm!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| Standards: | DVI 1.0; HDCP 1.2 | Connector: | DVI-D |
|---|---|---|---|
| Impedance: | 100Ω | Signal Type: | Stereo |
| Operating: | -20℃ ~ +70℃ | Warranty: | 1 Year |
| High Light: | KVM Control Fiber Optic Extender,DVI KVM Fiber Optic Extender,Optical Audio DVI To Fiber Converter |
||
DVI to Fiber Converter Optical Audio DVI KVM Fiber Optic Extender with KVM Control
Product Overview
The DVI KVM Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Technical Paramaters
| Parameter | Description | |
| Video | Standards | DVI 1.0; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution |
1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
| Connector | DVI-D | |
| Impedance | 100Ω | |
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo | |
| K/M | Interface |
To PC: MINI-USB To keyboard and mouse: USB-A |
| RS232 | Interface | Industrial terminal |
| Signal direction | Unidirectional | |
| Baud rate | Self-adaptive, Max:115200bps | |
| Data bits | 8 | |
| Optical fiber | Interface | LC connector |
| Fiber type | Single-mode single fiber | |
| Wavelength | Single-mode 1310nm | |
| Interface bandwidth | 2.97Gbps | |
| Transmission distance | standard 10km | |
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 6W | |
| Temperature | Operating: -20℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 136*130*30mm | |
| The warranty | 1 year free warranty | |
Product Features
* Transmits DVI video signals up to 10km over one fiber optic cable;
* Support video resolution up to 1920*1080@60Hz;
* Support keyboard and mouse signal transmission;
* Support external stereo audio unidirectional transmission;
* Support RS232 signal unidirectional transmission, baud rate self-adaptive;
* Compliance with DVI 1.0 and HDCP 1.2 standard;
* High compatibility, can auto-match source and display device;
* Built-in automatic adjustment system, make the image smooth, clear and stable;
* Built-in ESD protection system;
* Simple to install, plug and play;

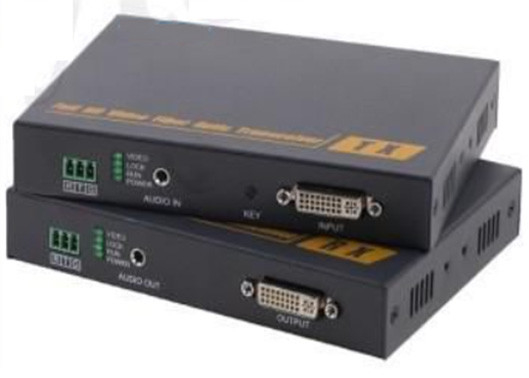

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
