| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/month |
| Processing Type: | Store-and-Forward | Fabric: | 20Gbps |
|---|---|---|---|
| Jumbo Frame: | 16K | Connector: | 1x 100M/1G/2.5G/5G/10GBase-T RJ45 |
| Optical Port: | 1x 10GBase-X SFP+ | Operating Temperature: | -40°C To 80°C |
| High Light: | Industrial 10G PoE Media Converter,90W 10G PoE Media Converter,Industrial 802.3bt PoE Media Converter |
||
Industrial 802.3bt 90W 10G PoE Media Converter
Technical parameters
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-T | |
| IEEE802.3ab 1000Base-T | |
| IEEE 802.3bz 2.5G/5GBASE-T | |
| IEEE 802.3an 10GBASE-T | |
| IEEE802.3x Flow Control | |
| Processing Type: | Store-and-Forward |
| Half-duplex, Full-duplex | |
| Fabric: | 20Gbps |
| Address Table: | 9K entries, automatic source address learning and aging |
| Jumbo Frame: | 16K |
| Network Cables: |
10G/5G/2.5G/1G/100M BASE-T: 10G--Cat 6A/Cat 7 5G--Cat 6/Cat 6A/Cat 7 1G/2.5G--Cat 5e/Cat 6/Cat 6A/ Cat 7 100M--Cat 5/Cat 5e/Cat 6/Cat 6A/ Cat 7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 60km |
| Connector: | 1x 100M/1G/2.5G/5G/10GBase-T RJ45 |
| Optical Port: | 1x 10GBase-X SFP+ |
| Power over Ethernet | |
| Standard: |
IEEE 802.3af for POE IEEE 802.3at for POE+/POE++ IEEE 802.3bt for POE++ Compliant with 60W uPoE standard Compliant with 95W Power over HDBaseT (PoH) standard |
| Port: | RJ45 |
| Power Pin Assignment: |
Pin 1 (V-), 2 (V-), 3 (V+), 6 (V+) Pin 4 (V+), 5 (V+), 7 (V-), 8 (V-) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | > 300,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48VDC (Terminal Block) |
| Power Consumption: |
95W Max.(PoE in use) 5W Max. (PoE not use) |
| LED Indicators | |
| P 1/2: | Power Status |
| Fault: | Fault Alarm |
| 10G: | 10G Ethernet link status |
| 10G SFP+: | 10G SFP+ link status |
| Dimensions (LxDxH): | 107 x 77 x 38mm |
| Weight: | 270g |
| Casing: | IP40 Protection, Aluminum Case |
| Mounting Options: | Din-Rail mounting, Wall mounting |
| Regulatory Approvals | |
| Safety: UL 60950-1 | |
|
EMS: EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 3 EN61000-4-5 (Surge), Level 3 EN61000-4-6 (CS), Level 3 |
|
| EMC: EN61000-4-8 | |
| Shock: IEC 60068-2-27 | |
| Free Fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A | |
| Industry: IEC61000-6-2 | |
| Rail: EN50155, EN50121-4 | |
| Traffic: NEMA TS-2 | |
Product overview
Industrial 802.3bt 90W 10G PoE Media Converter is an Industrial PoE Converter providing superior performance in stability, environmental adaptability. It equips with one 100M/1G/2.5G/5G/10GBase-T RJ45 copper and one slot for 10GBase-X SFP+. It is a high power bt device also backward compatible with both 90W PoH and 60W uPoE to be used as a general usage high power PoE product. The 90W PoE port is used to power outdoor speed domes, outdoor lamps, and other ultra-high power PD devices. It is designed for Security, Transportation and Telco applications to expand your network distances. The operating temperature range from -40 to 80 Degree C allows it to be placed in almost any difficult environment. With IP30 industrial case protection, it provides a high level of immunity against corrosion and electromagnetic interference. it also allows either DIN rail or wall mounting for efficient use of cabinet space.
Product features
► One 100M/1G/2.5G/5G/10GBase-T RJ45 port supporting a maximum distance of 100 m
► 10G SFP+ optical transceiver module port (SFP module not included)
► Supports an IEEE 802.3bt-compliant PoE++ device (e.g., wireless access point, VoIP phone, IP camera, etc.)
► Provides power output up to 90 watts for one PoE-compliant device
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail & Wall-mount installation
► Extensive LED indicators for network diagnostics
► Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature

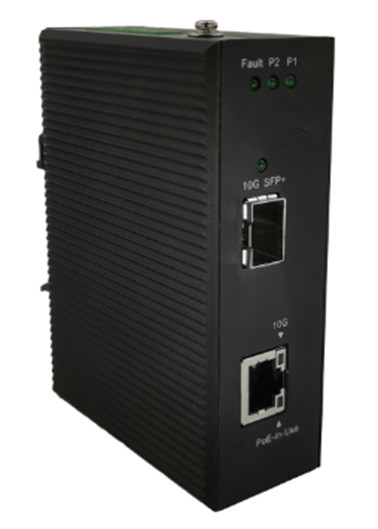

Product Pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
