4ch RJ11 Telephone Fiber Converter With 1 10/100Mbps Ethernet Port

4ch RJ11 Telephone Fiber Converter With 1 10/100Mbps Ethernet Port

  • 4ch RJ11 Telephone Fiber Converter With 1 10/100Mbps Ethernet Port
4ch RJ11 Telephone Fiber Converter With 1 10/100Mbps Ethernet Port
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: package and carton
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10000 pairs/month
Contact Now
Detailed Product Description
100m Ethernet: 1 Telephone Interface: 4
Transmission: 20-100km Telephone Physical Connector: RJ11
Wavelength: 1310/1550nm Power Supply: DC5V 2A
Bandwidth: Adaptive 10/100Mbps Rate Working Temperature: 20°C ~70°C
Storage Temperature: -40°C ~85°C MTBF: >100,000hours
High Light:

RJ11 Telephone Fiber Converter

,

Fiber Converter With 10/100Mbps Ethernet Port

,

4ch Fiber Optical Converter

4ch Telephone Fiber Converter with 1 10/100Mbps Ethernet Ports





Overview

4ch Telephone Fiber Converter with 1 10/100Mbps Ethernet Ports uses a special digital multiplexing chip, which integrates almost all digital logic functions in the device, thus significantly improving the performance of the product and reducing the cost. The equipment has excellent performance, stable and reliable operation, low power consumption, high integration, small size and easy installation and maintenance. A single optical fiber can simultaneously transmit 8 channels of telephone signals and 4 channels of 100m ethernet signals. Our company has the core technology, the use of PCM pulse coding modulation technology, voice quality is clear, stable and reliable, each voice signal has a three-level over current voltage protection unit, widely used in government units, electric power, public security, military, civil aviation, maritime, mining, highway and other college networks or public networks.



Product Features

1. Provide 4 channels telephone interface

2. Support 1 channel 100m ethernet

3. Use of audio frequency transformer and photoelectric coupler to completely separate the telephone interface and other circuits

4. Voice interface support caller ID and provide polarity reversal signal

5. Each voice signal has three levels of over-current voltage protection

6. Conventional standard single mode transmission 20KM, multi-mode 1KM, the farthest single mode can be customized up to 100KM

7. Single fiber / dual fiber transmission (optional)

8. No compression, no delay, high fidelity speech

9. Plug and play, no debugging

10. Perfect LED status display function, easy to maintain and manage

11. The device distinguishes between transmitter and receiver, and the label distinguishes the relay switch and the telephone



Technical Parameters

FX0 relay(switch)
Serial no. Parameter Symbol Min value Typical value

Max

value

Unit Remarks
1 Fluid flow voltage VR 30   120 VRMS (17-60)HZ
2 Ring to check the voltage   35     V
3 Frequency ring detection   17   60 Hz
4 2-wire AC impedance   200Ω+ 680Ω// 0.1uF   Off-hook state
5 Return loss   20 40   db
6 Depth of parallelism   60 70   db
7 Common mode rejection ratio CMRR 60 70   db
8 Power supply rejection ratio PSRR   30   db
9 Idle channel noise NC   75   db
FXS user(telephone)
Serial no. Parameter Symbol

Min

value

Typical value Max value Unit Remarks
1 Fluid flow voltage VR     150 VRMS
2 Ringing voltage Vring





75

90



V




Ringing frequency   17   60 Hz
3 Cutting fluid time       200 ms
4 2-wire AC impedance   200R + 680R // 0.1uF   Can be adjusted to 600Ω
5 Return loss   20 40   db
6 Depth of parallelism   60 70   db
7 Common rate rejection ratio CMRR 60 70
8 Power supply rejection ratio PSRR
Vcc     30   db
Vbat     30   db
9 Idle channel noise NC   75   db
Telephone physical connector RJ11
Fiber index
Module type

Single fiber(standard)

Multi-mode is optional

Wavelength 1310nm 1550nm(Option is based on device function)
Module rate 155Mbps/1.25Gbps(Option is based on device function)
Power supply DC 5V1A
Dimensions 104*104*28mm
Material Aluminium ally
Tx power >-12db
Rx sensitivity >-24db
Fiber connector FC (standard)SC/ST/LC(optional)
Ethernet index
Bandwidth Adaptive 10/100Mbps rate
Protocol

IEEE802.3 10Base-T Ethernet , IEEE802.3u

100Base-TX/FX Fast Ethernet , IEEE802.3x Flow control ,

IEEE802.1q VLAN,IEEE802.1p Qos,IEEE802.1d Spanning Tree

Physical interface RJ45
Other index
Working temperature -20°C ~70°C
Storage temperature -40°C ~85°C
MTBF >100,000hours


Product Picture

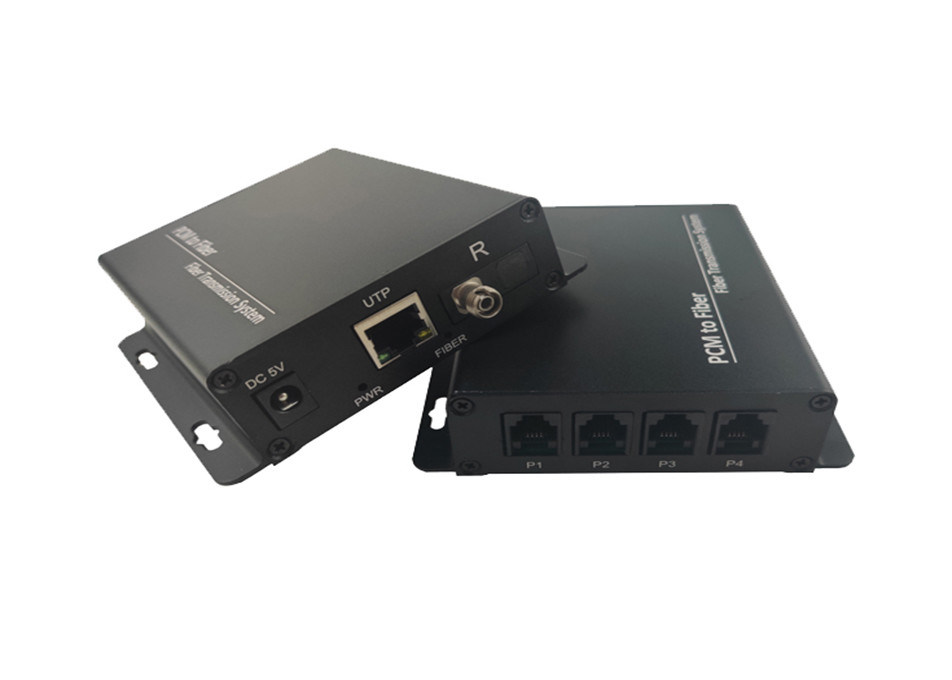

4ch RJ11 Telephone Fiber Converter With 1 10/100Mbps Ethernet Port 0

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



4ch RJ11 Telephone Fiber Converter With 1 10/100Mbps Ethernet Port 1
