Serve every customer well with the most enthusiasm!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Air Switch Rated Voltage: | AC100V-AC240V | Intelligent Bluetooth Lock: | Support |
|---|---|---|---|
| GPS: | Support | Pinhole Camera: | Support |
| Protection Grade: | IP56 | Operating Temperature: | -40°C~+85°C |
| High Light: | gps connected box,pinhole camera connected box,bluetooth lock iot box |
||
Intelligent Smart IoT Box with GPS Pinhole Camera Intelligent Bluetooth Lock 48V UPS for 30 Miniutes
Technical Parameter
| Customized Requirements | |||
| Box specifications: 530mmX430mmX255mm; 1.2mm galvanized steel sheet, box outdoor paint treatment; Waterproof flat lock, waterproof LED Indication; Protection level: IP56. | |||
| IoT intelligent module with 1.3 inch OLED screen | |||
| 16A 2P air switch circuit breaker | |||
| 16A atmomatic reclosing lock (support RS485 signal) | |||
| 40KA Surge protection module 2P (with remote signal function) | |||
| Guide rail UK 3-hole socket | |||
| AC220V power output module (total control 5 outputs) | |||
| 10/100mbps 1 fiber + 8 ethernet port POE optical transmission module with watchdog function (can monitor port status) | |||
| Water sensor | |||
| Intellight lock with bluetooth function | |||
| temperature control fan | |||
| GPS | |||
| 48V UPS power, total power 30W for 30 minutes | |||
| pinhole camera | |||
| LED lighting | |||
| 4-port full fused fiber set (optical fiber fixer, fused fiber tray, 4 pigtails, 4 SC single fiber flanges) | |||
| Auxiliary materials, wire and assembly |
Product Overview
Intelligent IoT Box with GPS Pinhole Camera Intelligent Bluetooth Lock 48V UPS for 30 Miniutes can collect and manage multiple data to achieve management functions such as multi-service data aggregation, transmission control, background alarm, and cloud platform monitoring.
Features
● Large multifunctional intelligent box.
● The box body adopts high strength cold rolled steel plate as a whole galvanized spray
● Equipped with one intelligent control 12V fan cooling system. When the temperature is higher than the set value, the fan starts to dissipate heat.
● With two intelligent dust removal fans.
● It has the function of monitoring tilt and collision. When the box tilts or is hit, the background will raise an alarm.
● Support real-time monitoring of mains input voltage, power failure alarm, reclosing trip report, remote power failure, power-on, restart function.
● It can determine whether the alarm is caused by the mains power failure or the equipment itself.
● Built-in backup battery, when the mains power failure support to continue to work, and report to the platform.
● Support box door switch status monitoring, abnormal open alarm.
● Support lightning arrester status monitoring, abnormal alarm.
● Monitor whether the box is waterlogged (optional).
● Support box power consumption statistics (optional).
● Box supports the remote function of opening with the door.
● Guide rail installation structure, convenient installation of power switch and power surge protection module.
● Built-in optical fiber welding box
● Built-in two or three plug 220V power socket, can remotely control the output switch state.
● Built-in 220V40KA lightning protection unit.
● AC220V, AC24V and DC12V provide status indicators.
● Power output can remotely control the switching state.
● Power output built-in lightning protection unit.

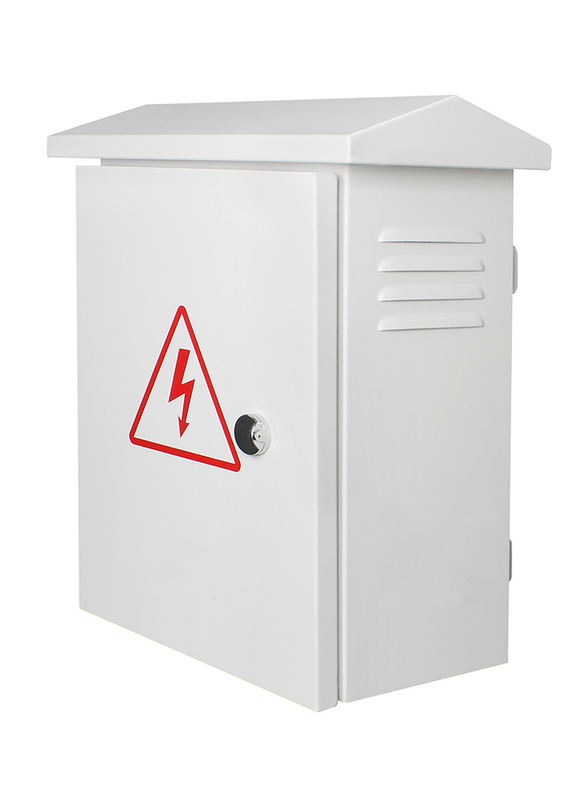

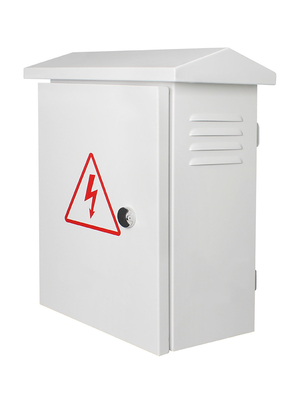

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
