Smart IOT Box with Temperature Control Fan Intelligent 4G Module Bluetooth Lock

Smart IOT Box with Temperature Control Fan Intelligent 4G Module Bluetooth Lock

  • Smart IOT Box with Temperature Control Fan Intelligent 4G Module Bluetooth Lock
Smart IOT Box with Temperature Control Fan Intelligent 4G Module Bluetooth Lock
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Air Switch Rated Voltage: AC100V-AC240V Rated Current: 16A
Rated Power: 50Hz~60Hz Temperature Control Fan: Support
Protection Grade: IP56 Operating Temperature: -40°C~+85°C
LED Lighting: Support GPS: Support
Pinhole Camera: Support Intelligent Bluetooth Lock: Support
High Light:

Smart IOT Equipments Box


4G Module IOT Equipments

Smart Internet of Things Box with Temperature Control Fan and Intelligent 4G Module and Bluetooth Lock

Technical Parameter

Belonging module
Function and interface
Operating Voltage
Automatic reclosing
Access AC voltage range: AC90-264V 50-60Hz
Device Interface
Network transmission
LC/SC fiber port
2*100/1000M SFP fiber ports (Optional LC / SC interface)
Gigabit RJ45 port
8*10/100/1000Base-X RJ45 ports
Console port
1set Ethernet switch console configuration interface
POE power supply
Port 1-7 support IEEE802.3af/at POE output
DC48V power interface
1 set single output 250W / 48V DC power supply
DC12V power interface
1 set 3-port output 90W / 12V DC power supply, 12V / 2A
AC24V power interface
1 set single output 60W / 24V AC power supply
AC220V power interface
5 hole AC power socket
Data control
RS485 interface
1 set RS485 communication interface
RS232 interface
1 set RS232 communication interface
Switch output
1 set switch output (Connect the alarm circuit, alarm indicator, etc.)
Switch input
2 set switch input (Box door switch, water leak detection)
Protective Function
Lightning protection
Network lightning protection
6-port gigabit network lightning protection
40KA anti-surge protection (SPD)
40KA AC surge protector
Automatic reclosing
Short circuit protection
In case of short-circuit fault, the power-off action time ≤0.1S
Electric leakage protection
Electric Leakage current> 30mA, power-off action time≤0.1S
Over current / overload protection
Power-off protection when the current is greater than 1.15 times the rated current and greater than 30S or the instantaneous
current is greater than 3 times the rated current
Over voltage protection
Power-off protection when the supply voltage is higher than the rated upper limit working voltage + 5V
Under voltage protection
Power-off protection when the supply voltage is higher than the rated lower limit working voltage -5V
Detection and protection before closing
Failure to restart before closing
Data control
Main control board parameters
DDR: 512MByte
Unauthorized unpacking monitoring alarm and video
Illegal unpacking alarm, video recording, and upload.
Power failure alarm
DC12V power failure alarm
AC220V mains power failure alarm
Fan status monitoring alarm
Fan failure alarm
Fan speed control
Temperature detection alarm
Alarm temperature setting,
Above the upper-temp limit, start the fan to dissipate heat;
Less than the lower temp limit, start the chassis heating (The heating module needs to be purchased separately)
Water leak detection alarm
Chassis flooding alarm
Power monitoring alarm
Real-time alarm for mains over-voltage, under-voltage, lightning strike,short circuit fault
Lightning protection frequency monitoring
Count lightning strike times to protect equipment installation and maintenance in advance
Power consumption statistics
Real-time display of chassis voltage, current, power
Output voltage / current control and monitoring alarm
DC12V output control and alarm
AC24V output control and alarm
AC220V output control and alarm
PoE power output control and alarm
System information display screen
Company LOGO
Local management IP address
Query / display the local I / O port status information
Query / display the information of local voltage and current consumption.
SMS alarm
The platform sends an alarm message SMS to the mobile phone of the operation and maintenance personnel
Network transmission
PoE output network management
Delay start of power supply
Scheduling of PoE operation and time
PoE port real-time power viewing,
PoE port power priority configuration
PoE output power allocation, off& af &at
PoE switch network management configuration
DHCP Serve, IGMP multicast
Port mirroring, Port rate setting
Network VLAN division
Link aggregation, QoS configuration
Network storm suppression
MAC + VLAN + IP + port binding
IPV4 / IPV6 dual stack protocol
802.1X access control, 802.3X flow control
ERPS and spanning tree ring network networking, etc.
Internet self-healing (Network watchdog)
Network traffic monitoring, offline recovery, downtime recovery, and storm recovery.
Network monitoring alarm
Network port dropped alarm
Optical port dropped alarm
Device connection topology and status monitoring alarm
intelligent box connection topology
Rename device name
Custom topology design
Expansion Module
Data control
4G wireless transmission
4G wireless communication function expansion and control
Intelligent box heating
The automatic heating system is suitable for long-term low-temperature environment operation
GPS positioning
Positioning accuracy ± 0.5 meters
Local information storage
Specify or select local system information backup, local storage, provide accurate operation and maintenance information records
Chassis repair lights
LDE Light when the box door is opened, providing lighting for smart box installation and maintenance.
Chassis Protection
Case shell
Chassis protection level
Power supply air switch
AC220V/16A air switch
Chassis material
1.8mm galvanized steel sheet
Insect net
The ventilation holes are covered with insect nets to ensure the interior of the box is clear




Product Overview

It is an intelligent transmission and power control system with high integration, high functionality, and simple use. It has a modular structure and provides multiple sets of power output and remote monitoring control. The transmission module can be selected according to the application requirements to realize the optical transmission of various topologies.



● Large multifunctional intelligent box.

● The box body adopts high strength cold rolled steel plate as a whole galvanized spray

● Equipped with one intelligent control 12V fan cooling system. When the temperature is higher than the set value, the fan starts to dissipate heat.

● With two intelligent dust removal fans.

● It has the function of monitoring tilt and collision. When the box tilts or is hit, the background will raise an alarm.

● Support real-time monitoring of mains input voltage, power failure alarm, reclosing trip report, remote power failure, power-on, restart function.

● It can determine whether the alarm is caused by the mains power failure or the equipment itself.

● Built-in backup battery, when the mains power failure support to continue to work, and report to the platform.

● Support box door switch status monitoring, abnormal open alarm.

● Electromagnetic lock device, remote consent to open the door.

● Support lightning arrester status monitoring, abnormal alarm.

● Monitor whether the box is waterlogged (optional).

● Support magnetic lock remote authorization opening and bluetooth unlocking (optional).

● Support box power consumption statistics (optional).

● Box supports the function of opening with the door.

● Guide rail installation structure, convenient installation of power switch and power surge protection module.

● Built-in optical fiber welding box

● Built-in two or three plug 220V power socket, can remotely control the output switch state.

● Built-in 220V40KA lightning protection unit.

● AC220V, AC24V and DC12V provide status indicators.

● Power output can remotely control the switching state.

● Power output built-in lightning protection unit.

Product picture

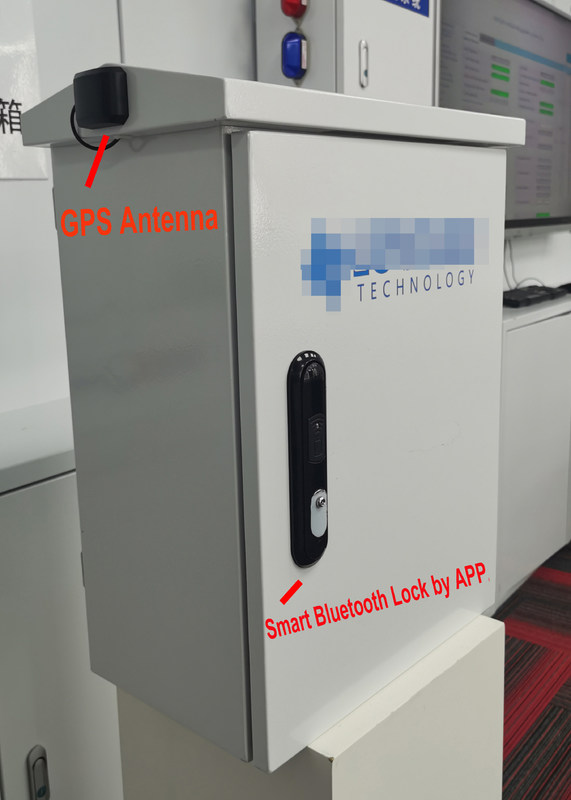

Smart IOT Box with Temperature Control Fan Intelligent 4G Module Bluetooth Lock 0



Packaging & Shipping


● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
Smart IOT Box with Temperature Control Fan Intelligent 4G Module Bluetooth Lock 1
