| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Air Switch Rated Voltage: | AC220V | Rated Current: | 10A |
|---|---|---|---|
| Rated Power: | 50HZ | Lightning Stroke Ability: | 10KA |
| Response Time: | <25ns | Input Power: | AC100V-AC240V |
| High Light: | IOT Intelligent Monitoring Box,AC220V IOT Box |
||
AC220V IOT Smart Box Intelligent Monitoring Box Support Customization
Technical Parameter
| Rated load current | 16A |
| Overflow action time | 2S |
| Voltage operating range | AC85~300V |
| Short circuit operation current | 20A |
| Short-circuit operation time | 30ms |
| Leakage operation current | ≥30mA |
| Leakage inactive current | ≤15mA |
| Leakage operation time | 30ms |
| Overvoltage operation time | 30ms |
| Overvoltage operation voltage | ≥275±5V,265V automatically restore power supply |
| Undervoltage operating voltage | ≤100±5V,150V automatically restores power supply |
| Overvoltage and undervoltage operation time | ＜100ms |
| Reclosing interval | 30s/30m/1h |
| Reclosing lock reset time | 5s |
| Device power | ＜1W |
| Surge resistance | 10/50,10KV itself is not damaged |
| Installation mode | Guide rail installation |
| Screen type | LED digital display |
| Power surge protection module | |
| Max chase flow | 40KA,60KA,80KA,100KA,120KA optional |
| Rated working voltage Un | AC220V |
| Max continuous operating voltage Uc | AC385V |
| Response time | <25ns |
| Network surge protection module | |
| max flow | 10KA |
| Network port | 4 RJ45 |
| Rated working voltage Un | 5V |
| max continuous working voltage | 8V |
| Response time | ＜1ns |
Product Overview
Intelligent Monitoring Box can collect and manage multiple data to achieve management functions such as multi-service data aggregation, transmission control, background alarm, and cloud platform monitoring. It can be widely used in the construction of smart public safety projects, including urban security monitoring, anti-terrorism monitoring, road bayonet monitoring, municipal facilities and environmental management, natural disaster monitoring and monitoring, water conservancy facilities monitoring.
Features
● The box body adopts high strength cold rolled steel plate as a whole galvanized spray
● Equipped with one intelligent control 12V fan cooling system. When the temperature is higher than the set value, the fan starts to dissipate heat.
● With two intelligent dust removal fans.
● It has the function of monitoring tilt and collision. When the box tilts or is hit, the background will raise an alarm.
● Support real-time monitoring of mains input voltage, power failure alarm, reclosing trip report, remote power failure, power-on, restart function.
● It can determine whether the alarm is caused by the mains power failure or the equipment itself.
● Built-in backup battery, when the mains power failure support to continue to work, and report to the platform.
● Support box door switch status monitoring, abnormal open alarm.
● Electromagnetic lock device, remote consent to open the door.
● Support lightning arrester status monitoring, abnormal alarm.
● Monitor whether the box is waterlogged (optional).
● Support magnetic lock remote authorization opening and bluetooth unlocking (optional).
● Support box power consumption statistics (optional).
● Box supports the function of opening with the door.

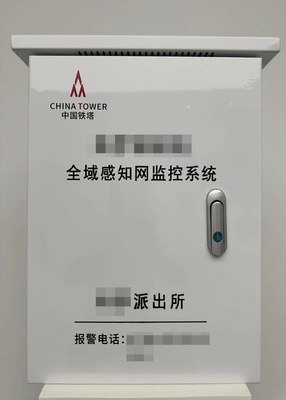

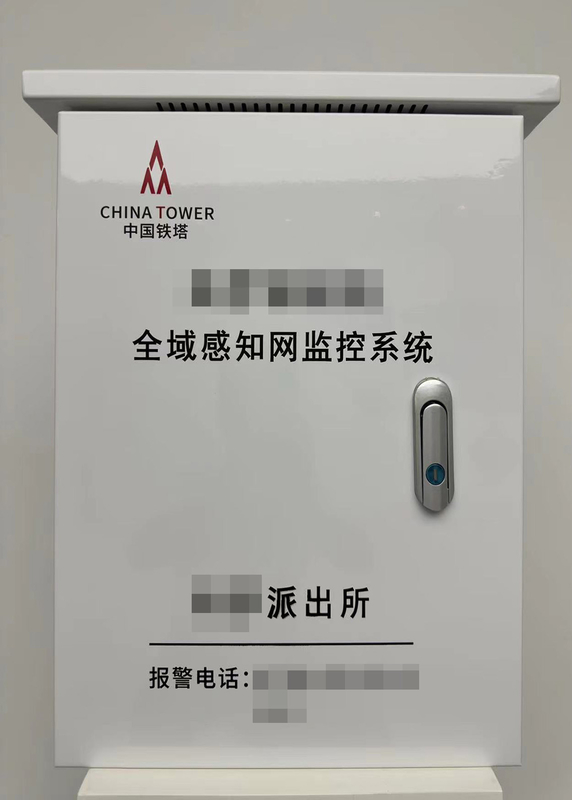

Product picture
Application
●Urban public security surveillance(Safe city project)
●Counter-terrorist surveillance
●Natural disaster surveillance
●Urban road traffic surveillance system
●Production process surveillance system for Industry,coal mine and soon
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
