Place of Origin: | China |
Brand Name: | AEO |
Certification: | CE, FCC |
Minimum Order Quantity: | 1 pair |
---|---|
Price: | negotiation |
Packaging Details: | package and carton |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T |
Supply Ability: | 10000 pairs/month |
Fiber Port: | SC/FC/ST Optional | Data Port: | Rs485 Optional |
---|---|---|---|
Fiber Distance: | 0~80km Optional (20km Default) | Working Temperature: | -20~+70 Degrees |
Video Port: | 16ch Coaxial BNC | Power Input: | DC5V |
High Light: | BNC Video Over Fiber Converter,16ch Video Over Fiber Converter,1080P Video Over Fiber Converter |
HD-CVI/AHD/TVI 1080P Coaxial Video Over Fiber Converter 16ch 1080P BNC Video With Rs485 Data
Technical Parameters
Optical | |
Wavelength | WDM:1310nm/1550nm |
Output Power | -8~3dBm |
Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
Rx sensitivity | -26dBm |
Optical connector | FC,ST,SC (optional) |
Distance | 0~550M (MM) / 0~80KM (SM) (Default distance is 20Km) |
Video | |
Number of Channels | 16 |
Input/output impedance | 75 Ohm (unbalance) |
Standard video input/output voltage | 1.0Vp-p |
Video Bandwidth | 50MHz |
Sampling Bandwidth | 8bit |
Sampling Frequency | 108MHz |
Signal to noise ratio | >67dB |
Rise and Fall time | <0.8ns |
Optical Signal Intrinsic Jitter | <0.2 UI |
Differential Gain | < ±1.5% |
Differential Phase | < ±1° |
Connector | BNC |
Supporting video pixel |
1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX |
Overview
The 16-Ch TVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD , can simultaneously transmit 16 channels video and 1-ch RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM , it is a kind of universal fiber transmission solution / product for CCTV analog video/data signals . Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.
Product Features
•Lossless non-compression real time transmission.
•Automatically identify formats of input video :AHD/TVI/CVI/PAL/NTSC/SECAM
•Support 720P/25/30/50Hz , 960P/25/30Hz,1080P/30Hz
•Advanced lightning protection design ,support 5.7KV lightning protection
•Through LED indicators to inform its functional mode
•Industrial wide range of operational temperature
•Stand-alone or Rack-mounted, simple installation.

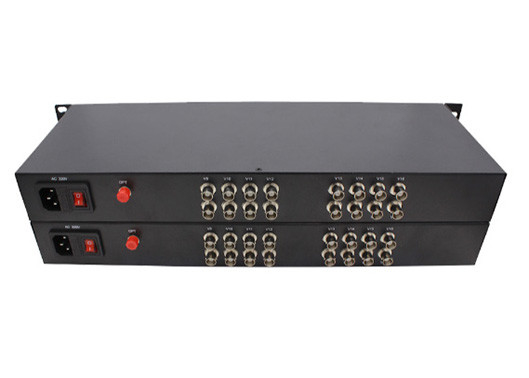

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
