IOT Intelligent Module Guide Rail with Pre-warning Web Managed Platform
Technical Parameter
|
Power supply |
Working power | DC12V/2A |
|
Controllable power supply |
1 AC220V input port | |
| 1 set AC220V output port | ||
| Interface mode: industrial terminal | ||
| Maximum load current: 5A | ||
| Support remote control, collect voltage, current, power and other real-time data | ||
|
UPS backup power supply |
One set of optional DC12V and DC310V output ports | |
| Max output power:30W | ||
| Interface mode: industrial terminal | ||
|
Network |
Port | 1 RJ45 port |
| RJ45 port | 10/100M automatic detection, full/half duplex MDI/ MDI-x adaptive | |
|
Ethernet Standard |
IEEE 802.3 10Base-T IEEE 802.3u 100Base TX |
| IEEE 802.3x | ||
|
Management and maintenance |
Support WEB management mode; support SNMP v1, v2, and v3; Support remote unified upgrade |
|
| Size | 105.5 (L) X87.5 (W) X60 (H) mm | |
| Operating temperature | -40～85°C | |
|
Storage temperature |
-40～85°C | |
| Relative humidity | 5% ~ 95%(no condensation) | |
|
Support functions |
Supports temperature and humidity data collection; Support Input and output power supply status monitoring; Support Output power supply voltage monitoring; Support remote power output control; Support 1 set of surge protection device status monitoring; Support one set of access control status monitoring, Support one set of LED lights and one set of temperature control fans; Supports one group of water flooding status monitoring; Supports one group of RS485 signals; Supports one group of 4G module signal access |
|
|
Mechanical characteristics |
Enclosure material | ABS |
| Box color | grey | |
| Structural technology | Integrated modularization | |
| Installation | Guide rail | |
| Heat dissipation mode | No fan natural heat dissipation mode | |
Product Overview
Based on the IoT, the IOT module adopts the intelligent pre-warning operation and maintenance management platform system for centralized management. It is an intelligent device developed for the centralized management needs of environmental data collection and monitoring, power management and control, and network status monitoring. It integrates multiple data monitoring, remote control, active alarm, platform monitoring and other functions.
It adopts the guide rail modular design and supports the installation of standard 35mm guide rail. The input and output interfaces are protected against overvoltage, overcurrent and surge protection. The LED indicator shows the working status in real time. It supports temperature and humidity collection, lightning protection device, access control, water flooding and other status monitoring, provides output interfaces such as LED lighting, cooling fan and UPS backup power supply, supports remote control of AC220V power output and real-time data acquisition of voltage, current and power, supports automatic reclosing access, data acquisition and remote control. Supporting web management and remote control to enable and disable power output, and reports system and power exception alarms in real time, effectively improving the efficiency of fault analysis and diagnosis, and minimizing operation and maintenance costs. It can be widely used in the construction of smart public safety projects, including urban security monitoring, anti-terrorism monitoring, road bayonet monitoring, municipal facilities and environmental management, natural disaster monitoring and monitoring, water conservancy facilities monitoring and monitoring.
Features
● Real-time monitoring of the temperature, humidity and other environmental data in the equipment box. When the temperature of the equipment is too high, an alarm is sent.
● Provide 1channel AC220V controllable output port to collect voltage, current, power and other real-time data.
● The power supply supports remote control to open, close or timed restart.
● Real-time alarms for power supply failures such as overvoltage and low voltage.
● Support real-time monitoring of lightning arrester working status and real-time alarm of abnormal equipment status.
● Support access by access control status signal, real-time alarm of access control status changes.
● Provide a set of DC12V LED light output interface, which can automatically open and close according to the status of access control.
● Built-in UPS backup power supply working mode, can report power failure alarm information when the mains power failure. One set of UPS backup power output ports is provided. The output voltage is DC12V or DC310V.
● Provide a set of temperature control fan output interface, can automatically work according to the set temperature value, output voltage DC12V, AC220V optional.
● It provides a set of input interfaces for water monitoring, which can be connected to the water sensor and provide real-time water alarm.
● Provide a set of RS485 communication interface, support access to automatic reclosing equipment, access to automatic reclosing data and remote control.
● Provide 4G, Internet of Things communication module and other access ports, can support wired, wireless two modes of communication, and support automatic switching.
● Support network camera working status monitoring, working abnormal real-time alarm. Can be linked to restart the camera power supply, automatically eliminate abnormal working problems.
● Industrial design of core module, working temperature -40°C~+85°C, long time stable operation in outdoor working environment.
● Modular structure design; Standard guide rail installation mode.

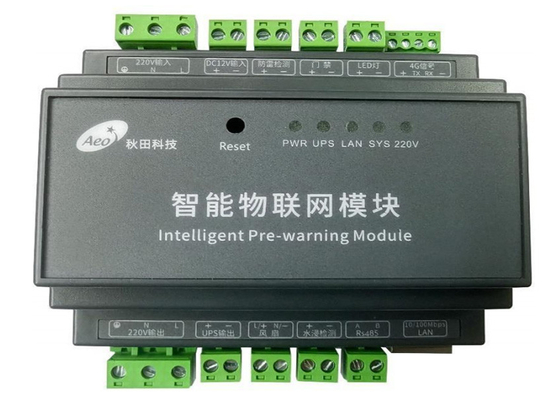

Product picture
Application
● Anti-terrorism monitoring system
● Natural disaster monitoring
● Wind and power monitoring system
● Urban road traffic monitoring system
● Industrial, coal mining and other production process monitoring system
● Urban security monitoring system
