Pre Warning Smart IOT Box Comprehensive Intelligent Box Supervisory Case

Pre Warning Smart IOT Box Comprehensive Intelligent Box Supervisory Case

  • Pre Warning Smart IOT Box Comprehensive Intelligent Box Supervisory Case
Pre Warning Smart IOT Box Comprehensive Intelligent Box Supervisory Case
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Air Switch Rated Voltage: AC100V-AC240V Rated Current: 16A
Rated Power: 50Hz~60Hz Lightning Stroke Ability: 10KA
Response Time: ≤0.05S Rated Load Current: 16A
High Light:

Pre Warning IOT Comprehensive Intelligent Box


16A IOT Comprehensive Intelligent Box


Supervisory Case IOT Equipments

Pre Warning Smart IOT Box​ Comprehensive Intelligent Box Supervisory Case

Technical Parameter

Air switch
Rated voltage AC100V-AC240V
Rated current 16A
Rated frequency 50Hz~60Hz
Lightning strike ability 10KA
Action time ≤0.05S
Automatic reclosing lock


Rated load current 16A
Overflow action time 2S
Voltage operating range AC85~300V
Short circuit operation current 20A
Short-circuit operation time 30ms
Leakage operation current ≥30mA
Leakage inactive current ≤15mA
Leakage operation time 30ms
Overvoltage operation time 30ms
Overvoltage operation voltage ≥275±5V,265V automatically restore power supply
Undervoltage operating voltage ≤100±5V,150V automatically restores power supply
Overvoltage and undervoltage operation time <100ms
Reclosing interval 30s/30m/1h
Reclosing lock reset time 5s
Device power <1W
Surge resistance 10/50,10KV itself is not damaged
Installation mode Guide rail installation
Screen type LED digital display
Power surge protection module
Max chase flow 40KA,60KA,80KA,100KA,120KA optional
Rated working voltage Un AC220V
Max continuous operating voltage Uc AC385V
Response time <25ns
Network surge protection module
max flow 10KA
Network port 4 RJ45
Rated working voltage Un 5V
max continuous working voltage 8V
Response time <1ns
Limit voltage Up 20V
Network signal transmission rate Vs 10/100/1000Mbps
Network signal protection cable 1-8 core, supporting POE surge protection
Intelligent pre-warning transmission module


Network port 1 10/100Base-T(X) rj45 port
Power port wiring terminal
Operating temperature -40°~85°(relative humidity 5% ~ 95% without condensation)
Fiber Switch
Network port 5 10/100Base-T(X) rj45 port
Fiber port 1 100Base-X FC fiber port
Backplane bandwidth 1.8Gbps
Cache 1Mbit
MAC address table 2K
Max frame length 2048bytes
Wavelength 1310nm/1550nm(single mode single fiber),standard 20km
Optical emission power -8~-2 dBm
Optical acceptance sensitivity ≤-35 dBm
Operating temperature -40°~85°(relative humidity 5% ~ 95% without condensation)
Output Power
Centralized power supply unit DC12V8A/DC12V16A/DC24V4A/DC24V8A optional
DC power surge protector 1.2/50μs 6KV(2Ω)
AC220V output 5-hole guide rail sockets
Other parameters
UPS(optional) Battery capacity 30Wh
  Input power AC150V-AC240V
  Operating temperature -20℃-75℃
Fuse box 4 SC
Box power consumption <12W (local power consumption)



Product Overview

The pre-warning IOT box can collect and manage multiple data to achieve management functions such as multi-service data aggregation, transmission control, background alarm, and cloud platform monitoring. It can be widely used in the construction of smart public safety projects, including urban security monitoring, anti-terrorism monitoring, road bayonet monitoring, municipal facilities and environmental management, natural disaster monitoring and monitoring, water conservancy facilities monitoring.



● Large multifunctional intelligent box.

● The box body adopts high strength cold rolled steel plate as a whole galvanized spray

● Equipped with one intelligent control 12V fan cooling system. When the temperature is higher than the set value, the fan starts to dissipate heat.

● With two intelligent dust removal fans.

● It has the function of monitoring tilt and collision. When the box tilts or is hit, the background will raise an alarm.

● Support real-time monitoring of mains input voltage, power failure alarm, reclosing trip report, remote power failure, power-on, restart function.

● It can determine whether the alarm is caused by the mains power failure or the equipment itself.

● Built-in backup battery, when the mains power failure support to continue to work, and report to the platform.

● Support box door switch status monitoring, abnormal open alarm.

● Electromagnetic lock device, remote consent to open the door.

● Support lightning arrester status monitoring, abnormal alarm.

● Monitor whether the box is waterlogged (optional).

● Support magnetic lock remote authorization opening and bluetooth unlocking (optional).

● Support box power consumption statistics (optional).

● Box supports the function of opening with the door.

● Support 485, 232 interfaces.

● Guide rail installation structure, convenient installation of power switch and power surge protection module.

● Built-in optical fiber welding box

● Built-in two or three plug 220V power socket, can remotely control the output switch state.

● Built-in 220V40KA lightning protection unit.

● AC220V, AC24V and DC12V provide status indicators.

● Power output can remotely control the switching state.

● Power output built-in lightning protection unit.

● Built-in insurance unit for each power output.

● CHINT 10A single phase power air switch with leakage

● Including network lightning protection device

● Including fault diagnosis transmission module

● Enclosure protection class: IP56

● Operating temperature: -40°C~+85°C

● Relevant certificates: commissioned test report issued by the Ministry of Public Security.

●National invention patent certificate: software copyright

● Support WEB management, support platform comprehensive management.

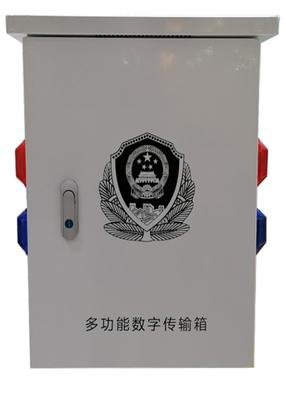

Product picture

Pre Warning Smart IOT Box Comprehensive Intelligent Box Supervisory Case 0


Application field

● Anti-terrorism monitoring system

● Natural disaster monitoring and monitoring

● Wind and power monitoring system

● Urban road traffic monitoring system

● Industrial, coal mining and other production process monitoring system

● Urban security monitoring System (Safe City Project)


Packaging & Shipping


● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
Pre Warning Smart IOT Box Comprehensive Intelligent Box Supervisory Case 1
