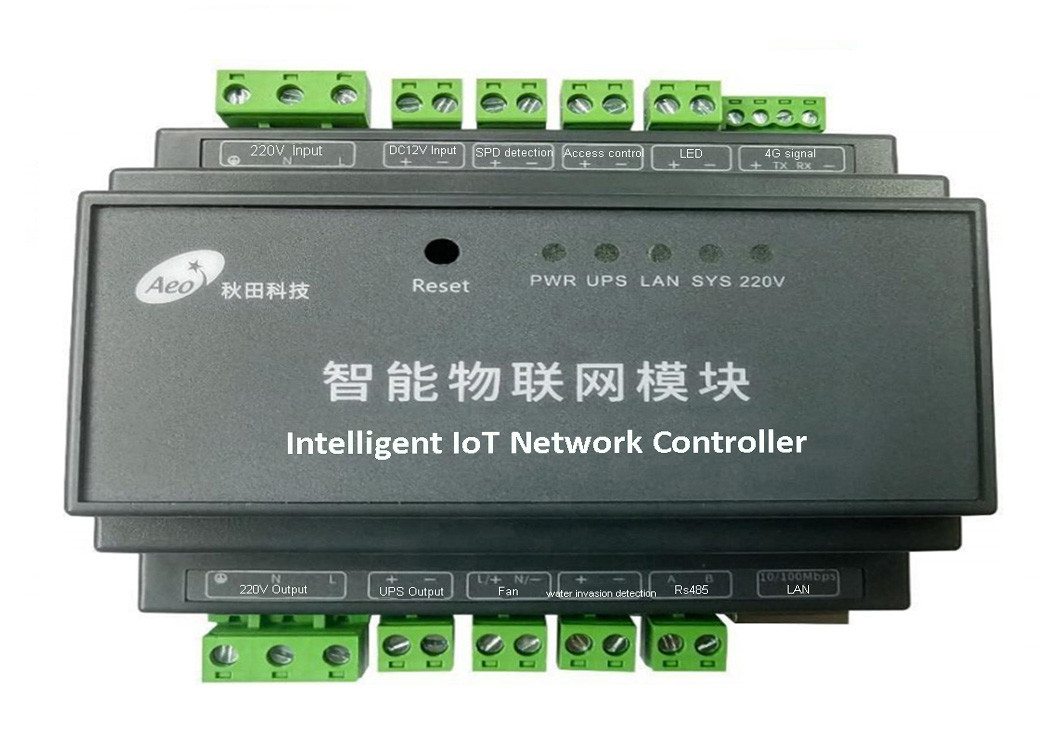

Real Time Data Analysis Plc Network Controller With Efficient Data Synchronization

Real Time Data Analysis Plc Network Controller With Efficient Data Synchronization

  • Real Time Data Analysis Plc Network Controller With Efficient Data Synchronization
Real Time Data Analysis Plc Network Controller With Efficient Data Synchronization
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE,FCC,ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Box, Carton
Delivery Time: 3-4 working days
Payment Terms: 100% T/T in advanced
Supply Ability: 10000pcs every month
Contact Now
Detailed Product Description
Data Monitoring: Alerts Data Sharing: Multi-user
Data Automation: Automation Data Security: Encryption
Data Backup: Backup Data Synchronization: Synchronization
Type: IOT Equipments Data Visualization: Dashboard
High Light:

real time network controller


data analysis network controller


plc network controller

Product Description:

IOT Equipments is a powerful and advanced intelligent IOT network module designed to provide remote access, data automation, data backup, real-time data analysis and multi-user data sharing capabilities. It is equipped with a PLC Network Controller and an advanced IOT security management system, allowing users to connect to their IOT devices in a secure and seamless way. With these features, IOT Equipments enables users to easily monitor, manage and control their IOT devices in a safe and efficient manner. It also offers powerful analytics and insights into the performance of IOT devices, allowing users to make informed decisions and optimize their IOT network. As an IOT network module, IOT Equipments offers users the necessary tools to maximize the efficiency of their IOT devices and ensure that their data is secure and protected from potential threats.



  • Product Name: IOT Equipments
  • Data Visualization: Dashboard
  • Data Monitoring: Alerts
  • Data Automation: Automation
  • Data Reporting: Reports
  • Data Storage: Cloud
  • PLC Network Controller
  • PLC IO Controller
  • PLC Network Module
  • Industrial Ethernet Switch
  • Industrial Firewall
  • Serial Device Server

Technical Parameters:


Power supply

Working powerDC12V/2A


Controllable power supply

1 AC220V input port
1 set AC220V output port
Interface mode: industrial terminal
Maximum load current: 5A
Support remote control, collect voltage, current, power and other real-time data


UPS backup power supply

One set of optional DC12V and DC310V output ports
Max output power:30W
Interface mode: industrial terminal



Port1 RJ45 port
RJ45 port10/100M automatic detection, full/half duplex MDI/ MDI-x adaptive


Ethernet Standard

IEEE 802.3 10Base-T

IEEE 802.3u 100Base TX

 IEEE 802.3x


Management and maintenance

Support WEB management mode;

support SNMP v1, v2, and v3;

Support remote unified upgrade

Size105.5 (L) X87.5 (W) X60 (H) mm
Operating temperature-40~85°C



Relative humidity5% ~ 95%(no condensation)


Support functions

Supports temperature and humidity data collection;

Support Input and output power supply status monitoring;

Support Output power supply voltage monitoring;

Support remote power output control;

Support 1 set of surge protection device status monitoring;

Support one set of access control status monitoring,

Support one set of LED lights and one set of temperature control fans;

Supports one group of water flooding status monitoring;

Supports one group of RS485 signals;

Supports one group of 4G module signal access


Mechanical characteristics

Enclosure materialABS
Box colorgrey
Structural technologyIntegrated modularization
InstallationGuide rail
Heat dissipation modeNo fan natural heat dissipation mode


IOT Equipments from brand name AEO is a PLC IO Controller, PLC Network Controller, PLC Network Controller with place of origin China and certified by CE,FCC,ROHS. Minimum order quantity is 1 set, and the package is Box, Carton. The delivery time is 3-4 working days, and payment term is 100% T/T in advanced. The supply ability is 10000pcs every month. The data is stored in Cloud, and can be accessed Remotely, integrated with API, reported with Reports and shared by Multi-user.


Support and Services:

IOT Equipments Technical Support and Service:
We provide technical support and service for all IOT Equipments products. Our team of certified engineers is available 24/7 to help with any technical questions or issues you may have. We also offer a comprehensive suite of online tools and resources to help you troubleshoot and diagnose any issues quickly and easily. If you need more advanced help, we are available for on-site visits and phone consultations. Our commitment to customer service and support ensures that all of your IOT Equipments products are running at peak performance.

Packing and Shipping:

Packaging and Shipping for IOT Equipments

IOT Equipments should be packaged according to the following guidelines:

  • Place the IOT Equipment in a protective box or other suitable container.
  • Ensure that the box or container is securely sealed.
  • Label the box or container with the appropriate shipping information.

The following shipping methods are accepted for IOT Equipments:

  • UPS
  • FedEx
  • DHL
  • USPS
