Place of Origin: | China |
Brand Name: | AEO |
Certification: | CE, FCC |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotiation |
Packaging Details: | package and carton |
Delivery Time: | 3-4 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 10000 pcs/month |
Air Switch Rated Voltage: | AC100V-AC240V | Rated Current: | 16A |
---|---|---|---|
Rated Power: | 50Hz~60Hz | Lightning Stroke Ability: | 10KA |
Protection Grade: | IP56 | Operating Temperature: | -40°C~+85°C |
High Light: | Outdoor Protection IOT Box,Outdoor Environment IOT Box |
Smart IOT Box with all-weather outdoor electrical protection box for open-air outdoor environment
Technical Parameter
brand | AEO | thickness | 1.2mm |
series | puppy | Material | SUS stainless steel |
Name | outdoor equipment box | color | white |
Grade | Indusrtial | Protection level | IP56 |
Open Door Mode | Right Door/Front Door | Incoming mode | bottom |
surface treatment | electrostatic powder spraying | Installation method | pole/wall/floor |
standard parts | box * 1 box door * 1 top cover * 1 side cover * 2 aluminum alloy back beam * 2 fan plate * 1 door lock * 1 door hinge * 2 Mounting plate * 2 screw pack * 1 or others |
Product Overview
This equipment box is an all-weather outdoor electrical equipment protection box designed for open-air outdoor environment. It has rainproof, dustproof, ventilation and heat dissipation, anti-ultraviolet (aging resistance), anti-theft, anti-rust (high humidity area), acid and alkali resistance Corrosion (seaside and factory environment), anti-electromagnetic interference (anti-lightning EMP), modular structure design in the box, electrical equipment can be installed vertically or horizontally according to the situation.
The box body is equipped with electrical configuration conditions such as door magnetic switch, alarm horn, alarm light, unpacking light and remote signal alarm, and is used in many outdoor scenes and industries. Telecommunications and communications, video surveillance, public safety, dust noise monitoring, artificial intelligence, new source energy, etc.
Features
● Large multifunctional intelligent box.
● The box body adopts high strength cold rolled steel plate as a whole galvanized spray
● Equipped with one intelligent control 12V fan cooling system. When the temperature is higher than the set value, the fan starts to dissipate heat.
● With two intelligent dust removal fans.
● It has the function of monitoring tilt and collision. When the box tilts or is hit, the background will raise an alarm.
● Support real-time monitoring of mains input voltage, power failure alarm, reclosing trip report, remote power failure, power-on, restart function.
● It can determine whether the alarm is caused by the mains power failure or the equipment itself.
● Built-in backup battery, when the mains power failure support to continue to work, and report to the platform.
● Support box door switch status monitoring, abnormal open alarm.
● Electromagnetic lock device, remote consent to open the door.
● Support lightning arrester status monitoring, abnormal alarm.
● Monitor whether the box is waterlogged (optional).
● Support magnetic lock remote authorization opening and bluetooth unlocking (optional).
● Guide rail installation structure, convenient installation of power switch and power surge protection module.
● Built-in optical fiber welding box
● Built-in two or three plug 220V power socket, can remotely control the output switch state.
● Built-in 220V40KA lightning protection unit.
● AC220V, AC24V and DC12V provide status indicators.
● Power output can remotely control the switching state.
● Power output built-in lightning protection unit.

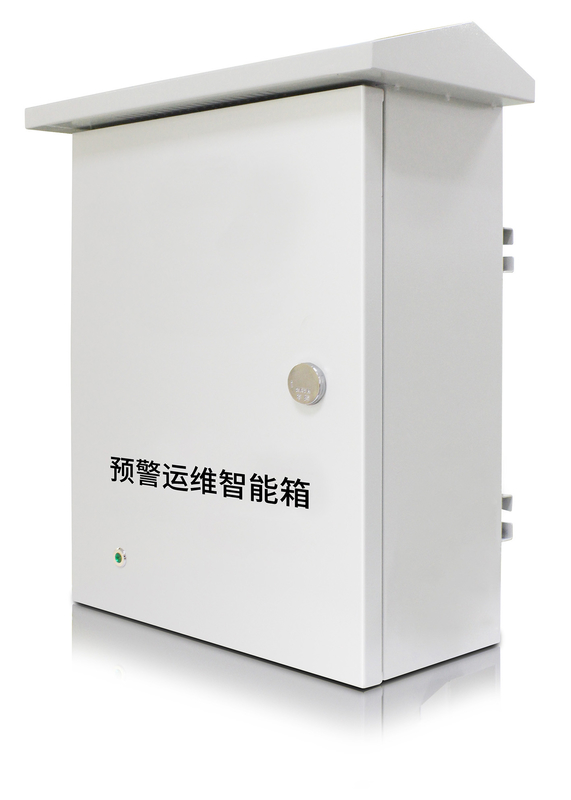

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
