| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE,FCC,ROHS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Box, Carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | 100% T/T in advanced |
| Supply Ability: | 10000pcs every month |
| Voltage Operating Range: | AC85~300V | Rated Load Current: | 16A |
|---|---|---|---|
| Leakage Action Current: | ≥30mA | Data Integration: | API |
| Data Access: | Remote | Leakage Operation Time: | 30ms |
| High Light: | customized iot cabinet,intelligent iot cabinet,floor type iot cabinet |
||
● Working power supply output support over current/short circuit protection, loss of phase protection, loss of voltage/overvoltage protection, leakage protection.
● Working power output support automatic closing and remote control.
● Max lightning protection discharge current (Imax) 20KA, 40KA, 60KA, 80KA and other specifications are available.
● A special SPD PDU for the ground chassis is configured to form multiple surge protection units with the power surge protection module.
● Built-in insurance unit for each power output.
● Real-time alarm of illegal power taking and overload power consumption to ensure power safety.
| Pre-warning operation and maintenance management unit | Port | 1 RJ45 port |
| RJ45 port | 10/100M automatic detection, full/half duplex MDI/ MDI-x adaptive | |
| Ethernet standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base TX IEEE 802.3x |
|
| Management and maintenance | ●support the WEB management mode ●support SNMP v1/v2/v3 ●supports remote unified upgrade |
|
| Supported Functions |
●support temperature control, heat dissipation, and intelligent dust removal ●support LED lighting intelligent opening |
| Pre-warning operation and maintenance management unit | ●supports the management and control of 4G network transmission modules ●support capture camera management control ●support real-time indication of working status ●support power statistics |
|
| Industry standard |
IEC(EN)61000-4-2(ESD) :±8kV contact discharge,±12kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT) : network port : ±4kV CM//±2kV DM ; IEC(EN)61000-4-5(Surge) : network port : ±4kV CM//±2kV DM ; IEC(EN)61000-4-6(radio-frequency conduction) : 3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(common-mode conduction) : 30V cont. 300V,1s IEC(EN )61000-4-8 |
We provide technical support and services for IOT equipments, which includes:
Our team of experts is always available to answer any questions you may have about our products. We are dedicated to helping you get the most out of your IOT equipment.

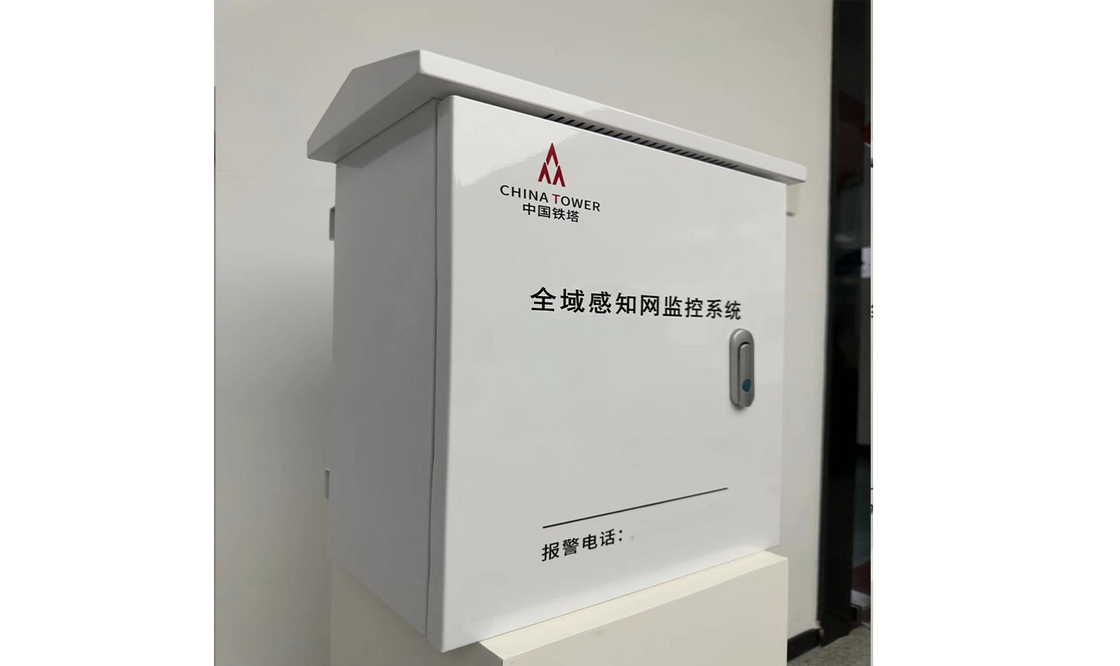

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
