Intelligent Smart Box Iot Equipments Outdoor Waterproof

Intelligent Smart Box Iot Equipments Outdoor Waterproof

  • Intelligent Smart Box Iot Equipments Outdoor Waterproof
Intelligent Smart Box Iot Equipments Outdoor Waterproof
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Air Switch Rated Voltage: AC100V-AC240V Intelligent Bluetooth Lock: Support
GPS: Support Pinhole Camera: Support
Protection Grade: IP56 Operating Temperature: -40°C~+85°C
4G Wireless Module: Support UK 3-hole Socket: Support
High Light:

ac100v iot equipments

,

iot equipments waterproof

,

iot box waterproof

Intelligent Smart Box IoT Outdoor Waterproof with Free Management Platform




Technical Parameter

Item
Belonging module
Function and interface
Parameter
Operating Voltage
Automatic reclosing
AC175-240V
AC100-240V
Access AC voltage range: AC90-264V 50-60Hz
Device Interface
Network transmission
LC/SC fiber port
2*100/1000M SFP fiber ports (Optional LC / SC interface)
Gigabit RJ45 port
8*10/100/1000Base-X RJ45 ports
Console port
1set Ethernet switch console configuration interface
Power
supply
POE power supply
Port 1-7 support IEEE802.3af/at POE output
DC48V power interface
1 set single output 250W / 48V DC power supply
DC12V power interface
1 set 3-port output 90W / 12V DC power supply, 12V / 2A
AC24V power interface
1 set single output 60W / 24V AC power supply
AC220V power interface
5 hole AC power socket
Data control
RS485 interface
1 set RS485 communication interface
RS232 interface
1 set RS232 communication interface
Switch output
1 set switch output (Connect the alarm circuit, alarm indicator, etc.)
Switch input
2 set switch input (Box door switch, water leak detection)
Protective Function
Lightning protection
Network lightning protection
6-port gigabit network lightning protection
40KA anti-surge protection (SPD)
40KA AC surge protector
Automatic reclosing
Short circuit protection
In case of short-circuit fault, the power-off action time ≤0.1S
Electric leakage protection
Electric Leakage current> 30mA, power-off action time≤0.1S
Over current / overload protection
Power-off protection when the current is greater than 1.15 times the rated current and greater than 30S or the instantaneous
current is greater than 3 times the rated current
Over voltage protection
Power-off protection when the supply voltage is higher than the rated upper limit working voltage + 5V
Under voltage protection
Power-off protection when the supply voltage is higher than the rated lower limit working voltage -5V
Detection and protection before closing
Failure to restart before closing



Product Overview

Intelligent Smart Box IoT series is an IoT comprehensive intelligent box independently. It is an intelligent transmission and power control system with high integration, high functionality, and simple use. It has a modular structure and provides multiple sets of power output and remote monitoring control.



Features
▲ Built-in lightning protection module, air switch, input voltage detection, input voltage overload/underload alarm, lightning strike count indication.
▲ Modular design, centralized the power supply, automatic reclosing, voltage short circuit trip, self-recovery power supply. More than 1 set AC220V power output, 3 set DC12V output, 1 set AC24V output, 1 set DC52V output.
▲ Remote PoE power supply and management, multi-channel UTP network connection, fiber connection, link alarm, supporting optical fiber splice trays.
▲ Power failure detection, voltage, current monitoring, on-site recording and remote viewing of device name and model, voltage output, real-time reporting of detection results, positioning of equipment through cloud platform and online map.
▲ A mechanical lock is installed in the box to record the log of the door opening and closing operation personnel and time; tamper alarm, the user can set when the door is opened, the operation and maintenance platform actively alerts.


Product picture

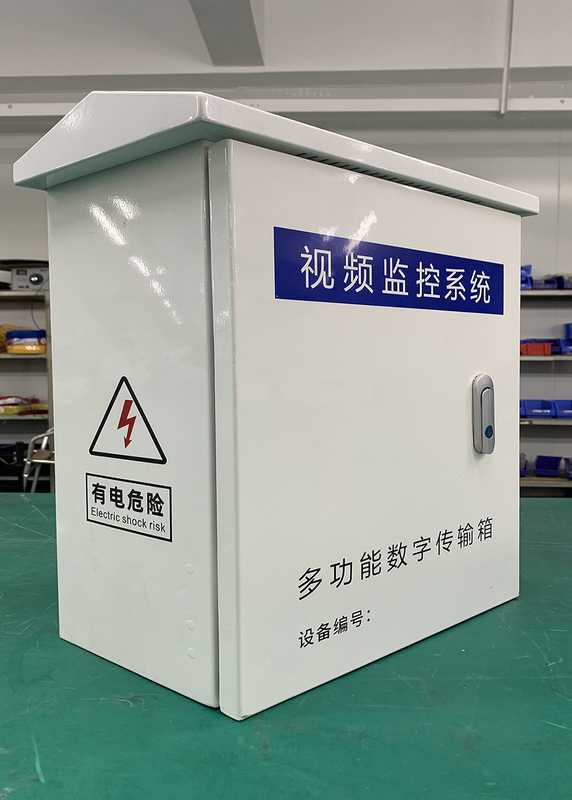

Intelligent Smart Box Iot Equipments Outdoor Waterproof 0



Packaging & Shipping



● All of our package are international standard package
● We will deliver our products as soon as the order confirmed

Intelligent Smart Box Iot Equipments Outdoor Waterproof 1
