| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Air Switch Rated Voltage: | AC100V-AC240V | Intelligent Bluetooth Lock: | Support |
|---|---|---|---|
| GPS: | Support | Pinhole Camera: | Support |
| Operating Temperature: | -40°C~+85°C | 4G Wireless Module: | Support |
| Protection: | IP65 | OLED Electronic Screen: | Support |
| High Light: | oem odm smart iot box,operation and maintenance smart iot box,oem odm iot box |
||
Smart IoT Box OEM ODM Operation and Maintenance Box Customized Fiber Optical Distribution Cabinet
Technical Parameter
|
Box specifications
|
535*385*230 with 7 fixed function slots;
LED lighting;
Thickness: 1.2mm;
Material: high quality galvanized plate,
adopt electrostatic spraying;
Chassis protection level: IP65;
Hoop mounted installation
|
|
Internal fan
|
DC24V power supply;
Size: 92×92×38mm;
Working temperature:-10°C~+70°C;
Rated speed: 4400rpm
|
|
Internal LED light
|
DC24V, 100mm long
|
|
Air switch
|
Working voltage: 230AC;
Working current: 20A;
Rated frequency 50Hz
|
|
Auto reclosing
|
Working temperature: -40°C~+85°C;
Working voltage: 100-300VAC 50Hz;
Over-voltage action: >280V±5V;
Undervoltage action: <150V±5V;
Leakage non-action current: 15mA;
Leakage action current: 30mA;
Size: 95mm x 93mm x 65 mm
|
|
AC lightning protector
|
Size: 90x36x63mm, working temperature -40~+85°C;
Related humidity: ≤95%;
Nominal voltage 220V, max continuous working voltage 385v;
Nominal discharge current (8/20μs) 20KA;
Energy Withstand (8/20μs) 40kA;
Protection level (8/20μs)
|
| Installation | Hold in the pole(Wall mounted/ Floor type are optional) |
|
DC12V 4-channel power supply
|
4 channel DC12V power module, 60W power
|
|
Main control module (Standard configuration)
|
Box data processing and control, including USB, serial port, CAN bus
interface, OLED electronic screen
|
|
Software
|
|
| Software | VLAN, Traffic statistics; MAC address black and white list; Link auto-discovery; Devices auto-discovery; Alarm; Logs; Remote Upgrade; Batch upgrade; Power status monitoring; Remote control of power supply; Device restart |
| Environment | |
| Working temperature | -30℃~+75℃ |
| Storage/Shipping temperature | -40℃~+85℃ |
| Heat dissipation method | Suction fan design |
| Protection | |
| IP level | IP65 |
| Surge protection for power | IEC 61000-4-5 Level 3(2KV/1KV)(8/20us) |
| Surge protection for external network management port of main control | IEC 61000-4-5 Level 3(2KV/1KV)(10/700us) |
| Free fall | 0.5m |
| Mechanical structure | |
| Size | 382*230*532mm(L*W*H) |
| Installation | Hoop mounted |
| Weight | 20KG |
Product Overview
Intelligent Smart Box IoT adopts a frame structure, providing AC220V, AC24V, DC12V multiple sets of voltage output, detection, and remote control. Embedded high-performance, high-stability intelligent control unit core, which can realize the detection and centralized monitoring and management of equipment such as environmental variables, power information, data communication, and transmission in the power box, with rich interfaces and powerful functions

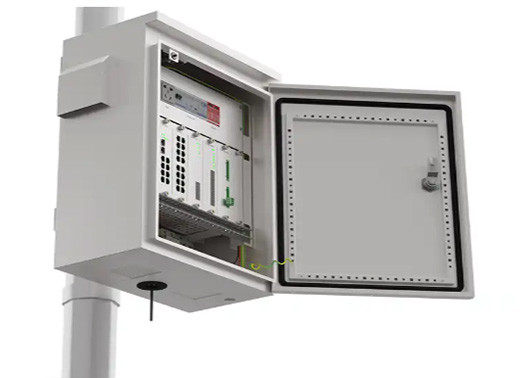

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
