| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 3-4 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pcs/month |
| Air Switch Rated Voltage: | AC100V-AC240V | Intelligent Bluetooth Lock: | Support |
|---|---|---|---|
| Pinhole Camera: | Support | Operating Temperature: | -40°C~+85°C |
| UK 3-hole Socket: | Support | AC220V Power Output: | 5 Sets |
| High Light: | Smart IOT Equipments FCC,Rainproof IOT Equipments |
||
Smart IOT Box Outdoor Electrical Equipment Protection Box Rainproof Dustproof
Technical Parameter
| Air switch | |||||
| Rated voltage | AC100V-AC240V | ||||
| Rated current | 16A | ||||
| Rated frequency | 50Hz~60Hz | ||||
| Lightning strike ability | 10KA | ||||
| Action time | ≤0.05S | ||||
|
|||||
| Rated load current | 16A | ||||
| Overflow action time | 2S | ||||
| Voltage operating range | AC85~300V | ||||
| Short circuit operation current | 20A | ||||
| Short-circuit operation time | 30ms | ||||
| Leakage operation current | ≥30mA | ||||
| Leakage inactive current | ≤15mA | ||||
| Leakage operation time | 30ms | ||||
| Overvoltage operation time | 30ms | ||||
| Overvoltage operation voltage | ≥275±5V,265V automatically restore power supply | ||||
| Undervoltage operating voltage | ≤100±5V,150V automatically restores power supply | ||||
| Overvoltage and undervoltage operation time | ＜100ms | ||||
| Reclosing interval | 30s/30m/1h | ||||
| Reclosing lock reset time | 5s | ||||
| Device power | ＜1W | ||||
| Surge resistance | 10/50,10KV itself is not damaged | ||||
| Installation mode | Guide rail installation | ||||
| Screen type | LED digital display | ||||
| Power surge protection module | |||||
| Max chase flow | 40KA,60KA,80KA,100KA,120KA optional | ||||
| Rated working voltage Un | AC220V | ||||
| Max continuous operating voltage Uc | AC385V | ||||
| Response time | <25ns | ||||
| Network surge protection module | |||||
| max flow | 10KA | ||||
| Network port | 4 RJ45 | ||||
| Rated working voltage Un | 5V | ||||
| max continuous working voltage | 8V | ||||
| Response time | ＜1ns | ||||
| Limit voltage Up | 20V | ||||
| Network signal transmission rate Vs | 10/100/1000Mbps | ||||
| Network signal protection cable | 1-8 core, supporting POE surge protection | ||||
|
|||||
| Network port | 1 10/100Base-T(X) rj45 port | ||||
| Power port | wiring terminal | ||||
| Operating temperature | -40°~85°(relative humidity 5% ~ 95% without condensation) | ||||
| Fiber Switch | |||||
| Network port | 5 10/100Base-T(X) rj45 port | ||||
| Fiber port | 1 100Base-X FC fiber port | ||||
| Backplane bandwidth | 1.8Gbps | ||||
| Cache | 1Mbit | ||||
| MAC address table | 2K | ||||
| Max frame length | 2048bytes | ||||
| Wavelength | 1310nm/1550nm(single mode single fiber),standard 20km | ||||
| Optical emission power | -8~-2 dBm | ||||
| Optical acceptance sensitivity | ≤-35 dBm | ||||
| Operating temperature | -40°~85°(relative humidity 5% ~ 95% without condensation) | ||||
| Output Power | |||||
| Centralized power supply unit | DC12V8A/DC12V16A/DC24V4A/DC24V8A optional | ||||
| DC power surge protector | 1.2/50μs 6KV(2Ω) | ||||
| AC220V output | 5-hole guide rail sockets | ||||
| Other parameters | |||||
| UPS(optional) | Battery capacity | 30Wh | |||
| Input power | AC150V-AC240V | ||||
| Operating temperature | -20℃-75℃ | ||||
| Fuse box | 4 SC | ||||
| Box power consumption | ＜12W (local power consumption) | ||||
| LED | LED | ||||
Product Overview
This equipment box is an all-weather outdoor electrical equipment protection box designed for open-air outdoor environment. It has rainproof, dustproof, ventilation and heat dissipation, anti-ultraviolet (aging resistance), anti-theft, anti-rust (high humidity area), acid and alkali resistance Corrosion (seaside and factory environment), anti-electromagnetic interference (anti-lightning EMP), modular structure design in the box, electrical equipment can be installed vertically or horizontally according to the situation.
Features
▲ Built-in lightning protection module, air switch, input voltage detection, input voltage overload/underload alarm, lightning strike count indication.
▲ Modular design, centralized the power supply, automatic reclosing, voltage short circuit trip, self-recovery power supply. More than 1 set AC220V power output, 3 set DC12V output, 1 set AC24V output, 1 set DC52V output.
▲ Remote PoE power supply and management, multi-channel UTP network connection, fiber connection, link alarm, supporting optical fiber splice trays.
▲ Power failure detection, voltage, current monitoring, on-site recording and remote viewing of device name and model, voltage output, real-time reporting of detection results, positioning of equipment through cloud platform and online map.
▲ A mechanical lock is installed in the box to record the log of the door opening and closing operation personnel and time; tamper alarm, the user can set when the door is opened, the operation and maintenance platform actively alerts.
▲ The network management data is output through Ethernet, and the key data of operation and maintenance is transmitted through the optical fiber and the IoT transmission module, and transmitted through the 4th generation mobile communication technology and WIFI signals.

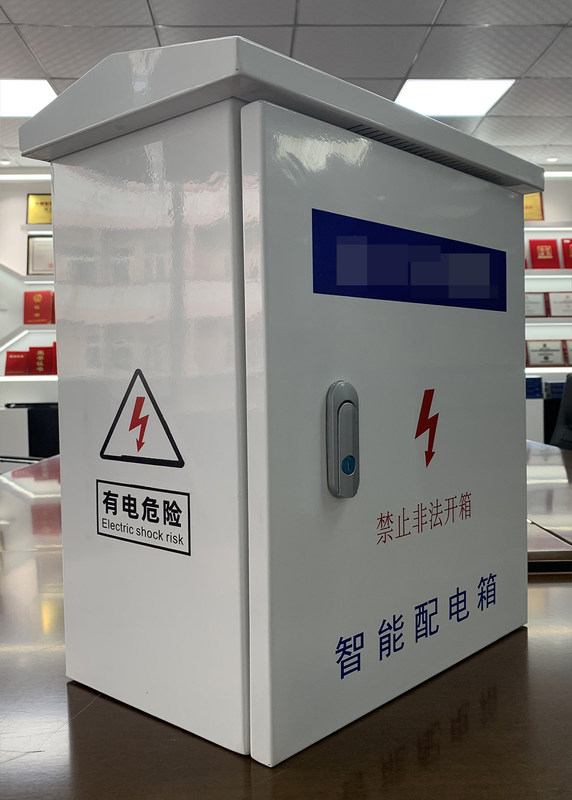

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
