Pinhole Camera Intelligent Monitoring Box AC220v Internet Of Things Box DC24V DC12V

Pinhole Camera Intelligent Monitoring Box AC220v Internet Of Things Box DC24V DC12V

  • Pinhole Camera Intelligent Monitoring Box AC220v Internet Of Things Box DC24V DC12V
Pinhole Camera Intelligent Monitoring Box AC220v Internet Of Things Box DC24V DC12V
Product Details:
Place of Origin: China
Brand Name: AEO
Certification: CE, FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: package and carton
Delivery Time: 3-4 working days
Payment Terms: T/T, L/C
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Air Switch Rated Voltage: AC100V-AC240V Intelligent Bluetooth Lock: Support
GPS: Support Pinhole Camera: Support
Operating Temperature: -40°C~+85°C AC220V Power Output: 5 Sets
High Light:

Pinhole Camera Intelligent Monitoring Box


AC220v Internet Of Things Box

Intelligent Monitoring Box Pinhole Camera Ac220v Internet Of Things Box Dc24v Dc12v


Technical Parameter

Data control
Main control board parameters
DDR: 512MByte
Unauthorized unpacking monitoring alarm and video
Illegal unpacking alarm, video recording, and upload.
Power failure alarm
DC12V power failure alarm
AC220V mains power failure alarm
Fan status monitoring alarm
Fan failure alarm
Fan speed control
Temperature detection alarm
Alarm temperature setting,
Above the upper-temp limit, start the fan to dissipate heat;
Less than the lower temp limit, start the chassis heating (The heating module needs to be purchased separately)
Water leak detection alarm
Chassis flooding alarm
Power monitoring alarm
Real-time alarm for mains over-voltage, under-voltage, lightning strike,short circuit fault
Lightning protection frequency monitoring
Count lightning strike times to protect equipment installation and maintenance in advance
Power consumption statistics
Real-time display of chassis voltage, current, power
Output voltage / current control and monitoring alarm
DC12V output control and alarm
AC24V output control and alarm
AC220V output control and alarm
PoE power output control and alarm
System information display screen
Company LOGO
Local management IP address
Query / display the local I / O port status information
Query / display the information of local voltage and current consumption.
SMS alarm
The platform sends an alarm message SMS to the mobile phone of the operation and maintenance personnel
Network transmission
PoE output network management
Delay start of power supply
Scheduling of PoE operation and time
PoE port real-time power viewing,
PoE port power priority configuration
PoE output power allocation, off& af &at
PoE switch network management configuration
DHCP Serve, IGMP multicast
Port mirroring, Port rate setting
Network VLAN division
Link aggregation, QoS configuration
Network storm suppression
MAC + VLAN + IP + port binding
IPV4 / IPV6 dual stack protocol
802.1X access control, 802.3X flow control
ERPS and spanning tree ring network networking, etc.
Internet self-healing (Network watchdog)
Network traffic monitoring, offline recovery, downtime recovery, and storm recovery.
Network monitoring alarm
Network port dropped alarm
Optical port dropped alarm
Device connection topology and status monitoring alarm
intelligent box connection topology
Rename device name
Custom topology design

Product Overview

Intelligent Monitoring Box  is an intelligent power control system with high integration, strong functionality, and simple use and installation, independently. It adopts a frame structure, providing AC220V, AC24V, DC12V multiple sets of voltage output, detection, and remote control. Embedded high-performance, high-stability intelligent control unit core, which can realize the detection and centralized monitoring and management of equipment such as environmental variables, power information, data communication, and transmission in the power box, with rich interfaces and powerful functions, which improves the reliability of unattended sites It can simplify the maintenance methods and improve the efficiency of operation and maintenance.


▲ Built-in lightning protection module, air switch, input voltage detection, input voltage overload/underload alarm, lightning strike count indication.
▲ Modular design, centralized the power supply, automatic reclosing, voltage short circuit trip, self-recovery power supply. More than 1 set AC220V power output, 3 set DC12V output, 1 set AC24V output, 1 set DC52V output.
▲ Remote PoE power supply and management, multi-channel UTP network connection, fiber connection, link alarm, supporting optical fiber splice trays.
▲ Power failure detection, voltage, current monitoring, on-site recording and remote viewing of device name and model, voltage output, real-time reporting of detection results, positioning of equipment through cloud platform and online map.
▲ A mechanical lock is installed in the box to record the log of the door opening and closing operation personnel and time; tamper alarm, the user can set when the door is opened, the operation and maintenance platform actively alerts.

▲ The network management data is output through Ethernet, and the key data of operation and maintenance is transmitted through the optical fiber and the IoT transmission module, and transmitted through the 4th generation mobile communication technology and WIFI signals.

Product picture

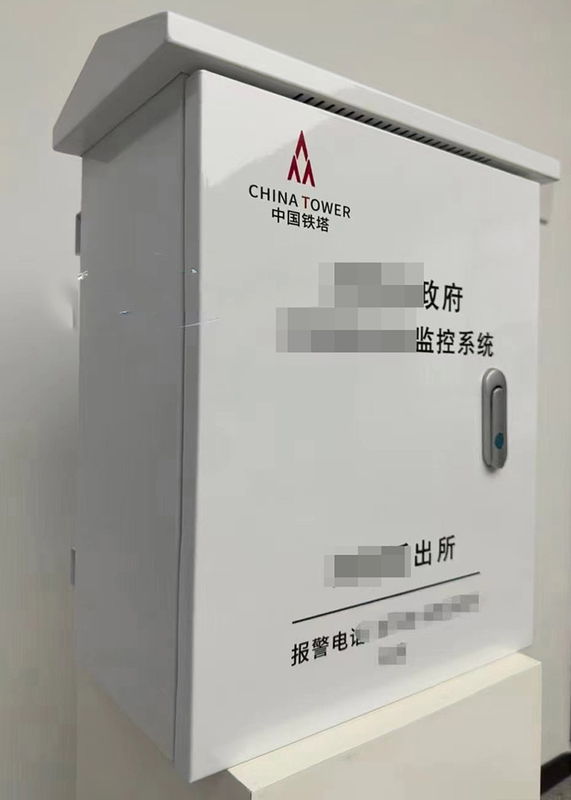

Pinhole Camera Intelligent Monitoring Box AC220v Internet Of Things Box DC24V DC12V 0


Packaging & Shipping


● All of our package are international standard package
● We will deliver our products as soon as the order confirmed

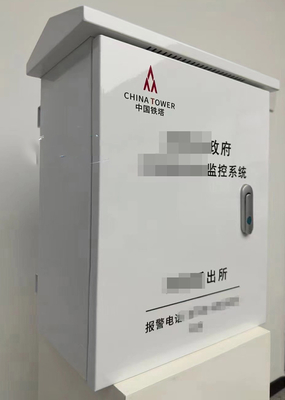

Pinhole Camera Intelligent Monitoring Box AC220v Internet Of Things Box DC24V DC12V 1
