Serve every customer well with the most enthusiasm!
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| Rate: | 1.485Gb/s And 270Mb/s | Network Port: | 10/100Mbps |
|---|---|---|---|
| Optical Type: | Single-mode | Wavelength: | 1310nm /1550nm |
| Optics Connector: | FC/SC/ST/LC | Baud Rate: | 115.2Kb/s |
| Transmission Distance: | 20km | Working Temperature: | -20℃～+70℃ |
| Working Humidity: | 0~95% | MTBF: | ≥100000 Hours |
| Ethernet Port: | 1 | HD-SDI BNC Port: | 8 |
| High Light: | HD SDI Fiber Optic Converter,8ch Fiber Optic Converter,RS485 Support HD SDI Fiber Converter |
||
8Ch HD-SDI Fiber Optic Converter with One Ethernet Port and 1ch RS485
Technical Parameters
| Fiber Optical interface | |
| Fiber interface | FC/SC/LC/ST |
| Transmission distance | 20Km |
| Wavelength | 1310nm/1550nm |
| Rate | 115.2Kb/s |
| Network port | 10/100Mbps |
| VLAN | support |
| Surge Protection Function | Yes |
| HD-SDI BNC Port | 8 |
| Ethernet port | 1 |
| AUX Port | 1 |
| Video | |
| RS485 | Yes |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| Electrical | |
| Power Input | 100VAC to 220VAC |
| Mechanical | |
| Casing | Metal Case |
| Mounting Options | Rack-mount |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| BER | <10ˉ9 |
| Differential gain (10%～90% APL) | <1% |
| Physical interface | Industrial standard screw terminal |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Overview
8Ch HD-SDI Fiber Optic Converter with One Ethernet Port and 1ch RS485 is a 8-channel HD-SDI optical transceiver, which perform real-time, loss-free and high-quality SDI transmission (two embedded audio channels for each SDI) and one bi-directional RS485 data over an optical line. Besides, it provides one 10M/100M Ethernet interface and optional audio/contact closure/RS422/RS232 data transmission, which can be widely used in TV live broadcast, high-definition video conference, high-definition video monitoring, intelligent transportation system and public security system.It includes desktop equipment and rack mounting chassis, the desktop equipment includes a transmitter and a receiver;
Features
· 8 HD/SD-SDI input (BNC)
· 8 HD/SD-SDI output (BNC)
· With integrated cable equalizer
· With APC circuit to perform stable optical power
· Two audio channels embedded in each SDI signal
· Provides one 10M/100M Ethernet interface
· Comply with SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 1.485Gb/s and 270Mb/s
· Embedded ESD and surge protection circuit to prevent damage from static and thunder
· With NOP (No optical signal) alarm indications, output status indicator and input lock indicator
· One bi-directional RS485 channel, half duplex, up to 115.2Kb/s baud rate
· provides auxiliary channel, which can be 2-channel bi-directional audio, or 2/4/6/8-channel unidirectional audio, or 2-channel contact closure input/output, or 1-channel bi-directional RS422, or 1-channel bi-directional RS232 channel
· Supports 1080P@30,25,24, 29.97, 23.98,1080I@60,50,59.94,720P@60,50,30,25,24, 9.94, 29.97, 23.98 and 625i,525i format, when input is 1080P@29.97, 23.98,1080I@59.94,720P@59.94, 29.97, 23.98, the output is 1080P@30, 24,1080I@60,720P@60,30, 24 respectively

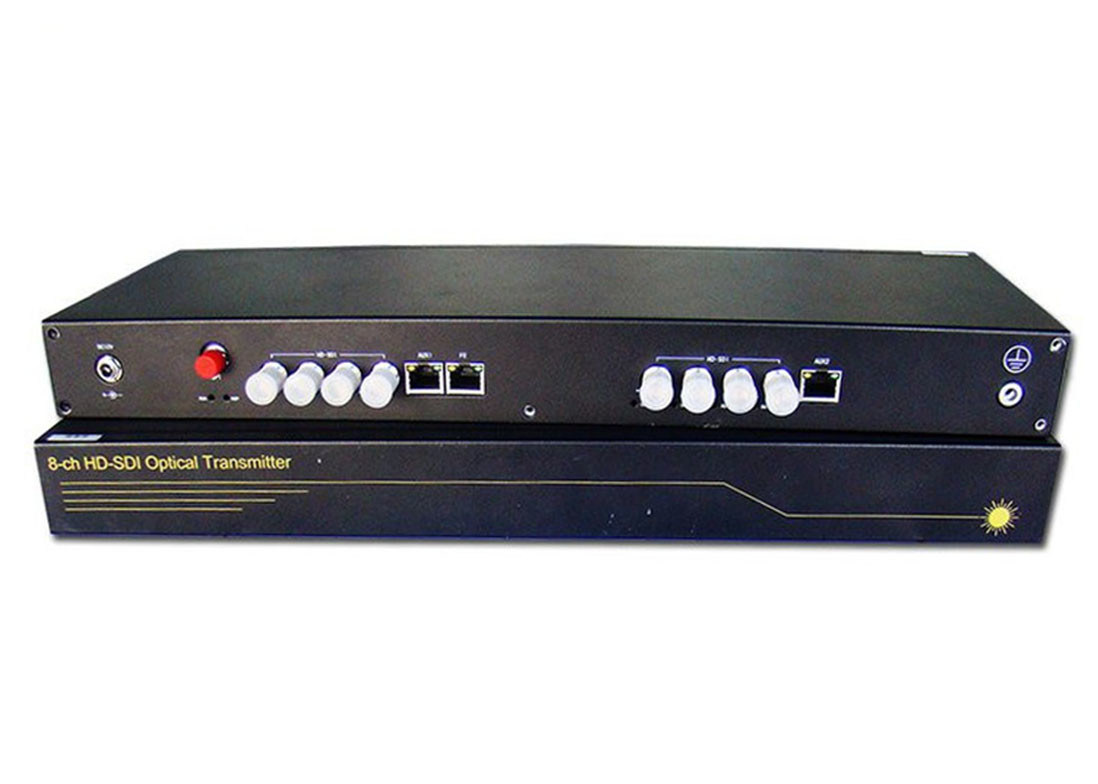

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
