| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| SDI Input: | 1 | SDI Output: | 2 |
|---|---|---|---|
| Differential Gain (10%～90% APL): | <1% | Power Consumption: | <3W |
| Rate: | 2.97Gb/s, 1.485Gb/s And 270Mb/s | Working Humidity: | 0~95% |
| MTBF: | ≥100000 Hours | Working Temperature: | -20℃～+70℃ |
| Storage Temperature: | -40℃～+80℃ | Video Interface: | BNC |
| Video Input/output Impedance: | 75Ω | Physical Interface: | Industrial Standard Screw Terminal |
| BER: | <10ˉ9 | Standard: | SMPTE-424M, SMPTE-292M And SMPTE-259M |
| High Light: | 1x2 SDI Distribution Amplifier,1 Input SDI Distribution Amplifier,2 Outputs HD SDI Distribution Amplifier |
||

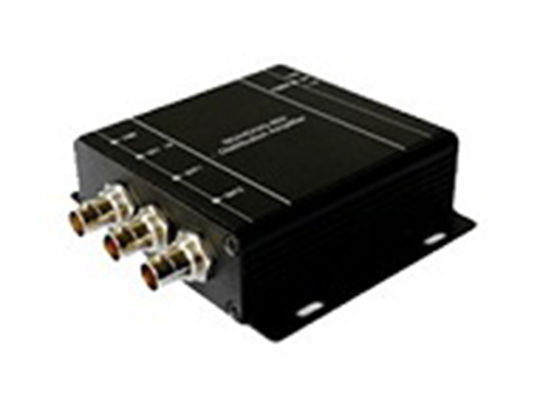

1x2 SDI Distribution Amplifier 1 Input and 2 Outputs
Technical Parameters
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| Video input | 1ch |
| Video output | 2ch |
| Electrical | |
| Power Input | 100VAC to 220VAC |
| Power consumption | <3W |
| Mechanical | |
| Casing | Metal Case |
| Mounting Options | Rack-mount |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Overview
1x2 SDI Distribution Amplifier 1 Input and 2 Outputs is a reliable desktop 1x2 SDI distribution amplifier, features 1 input and 2 outputs, which can split one SD/HD/3G-SDI video source to two video equipments without loss of signal.
Features
Comply with SMPTE-424M, SMPTE-292M and SMPTE-259M standard, supports 2.97Gb/s, 1.485Gb/s and 270Mb/s
1080P@60,50,30,25,24,1080I@60,50 and 720P@60,50,30,25,24, SD 525i and SD 625i
Features 1 input and 2 outputs without loss of signal
Integrated cable equalizer, reclocker and cable driver
Embedded ESD and surge protection circuit to prevent damage from static and thunder
