| Place of Origin: | China |
| Brand Name: | AEO |
| Certification: | CE, FCC |
| Minimum Order Quantity: | 1 pair |
|---|---|
| Price: | negotiation |
| Packaging Details: | package and carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pairs/month |
| Tx Power: | ＞-5db | Rx Sensitivity: | ＞-14db |
|---|---|---|---|
| SDI In/SDI Out: | 1 X 12G-SDI On BNC | Optical Transmission Bandwidth: | 270MHz~12GHz |
| Operating Temperature: | -20°C ~75°C | Storage Temperature: | -40°C ~85°C |
| High Light: | 12G-SDI HD SDI Converter,20KM HD SDI Converter |
||
HD SDI Converter 1 Channel 12G-SDI Video Signal 20KM Over Fiber
Technical Parameters
Overview
Mini 12G-SDI video to fiber optical converter supports 1-channel 12G-SDI Video/Data or Tally signal transmitted via fiber optical cable,and monitor the signal locally over a 12G-SDI loop output,12G-SDI video over fiber converter includes one transmitter and one receiver for 4K 12G-SDI signal.
Features
1.1 channel 12G-SDI Video/Data & Tally over optic fiber
2.Each SDI channel includes 1-channel audio embedded
3.SDI input/LC fiber output/SDI Loop
4.Automatic cable equalization to ensure signal integrity
5.Supports 12G / 6G / 3G / HD / SD
6.Compatible with DVB-ASI and AES10 (MADI)
7.Integrated reclock locks to SMPTE rates of 11.88Gbps,5.94Gbps,2.97Gbps,1.485Gbps or divide-by-1.001 sub-rates and 270Mbps
8.Directly compatible with 12G/6G/3G-SDI camera systems
9.Long transmission capability at least 10 km,up to 40 km
10.Type C 5V power input
11.Supports hot swapping and hot plugging
12.Full digital non-compression broadcast level transmission
13.Super optic dynamic range and free of adjustment prior to use
14.Fiber optic WDM/CWDM/DWDM technique
15.Support HDTV 4K*2K(3840*2160@60Hz),1080P,1080I,720P.

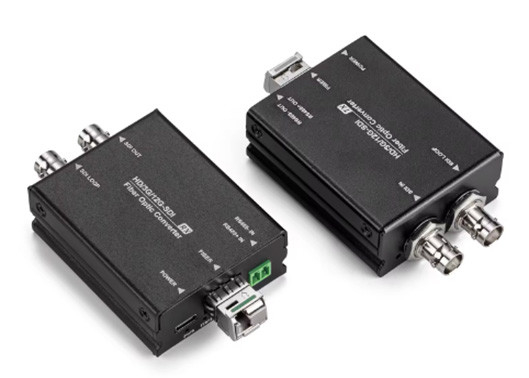

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
