HD/3G SDI To HDMI Converter HDMI Over SDI Converter For CCTV SD HD And 3G SDI Signals

HD/3G SDI to HDMI Converter HDMI over SDI Converter for CCTV SD HD and 3G SDI signals

Overview

3G SDI to HDMI Converter Designed for professional SMPTE video applications, this 3G SDI to HDMI Converter allows you easily
display your work on common HDMI displays. The loop-through design also allows you to view the original SDI content on an SDI
monitor simultaneous with the HDMI display. This converter supports bit rates up to 2.970 Gbps and supports SD-SDI, HD-SDI, and
3G-SDI video signals.

Features

·SD/HD/3G-SDI Input:SDI to HDMI Micro Converter,Work well for nearly all 3G/HD SDI devices,such as Blackmagic Design ATEM
STUDIO,RED Scarlet, BMD Atem, Security Camera, capture card, Campus TV network, DVR etc
· HDMI and SDI Loop Outputs:Support 1 HDMI output and 1 SDI Loop Output,The transferring data rate is up to 2.97Gbps. Support 8
channels of 48KHz sampling rate of digital audio
· Supports SD and HD Signals:Convert SDI to HDMI and SDI both or seperately, support
1920x1080P@60Hz,1920x1080I@60Hz,1280x720P@60Hz
· Automatic Input Signal Detection:Support Auto detection of SD or HD,Supports 10-bit Deep Color,Work as SDI Repeater & Extender
with the Re-clock function and support multiple cascaded
· Broadcast Grade Quality:Durable Metal body, anti-corrosion and rust-proof, no static noise issue. Excellent heat radiation keeps
favorable working temperature. Bolts and buckles design makes it ideal for industrial utilization

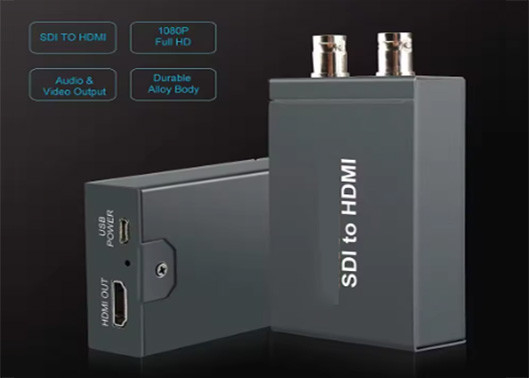

Product Picture
